Brand： Honeywell
Model number：TK-FPDXX2
Colour：new
Warranty: 12 months
Lead Time：3-day working day
Country of origin: USA Price: Please contact us
Product weight：0.16kg
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Description:

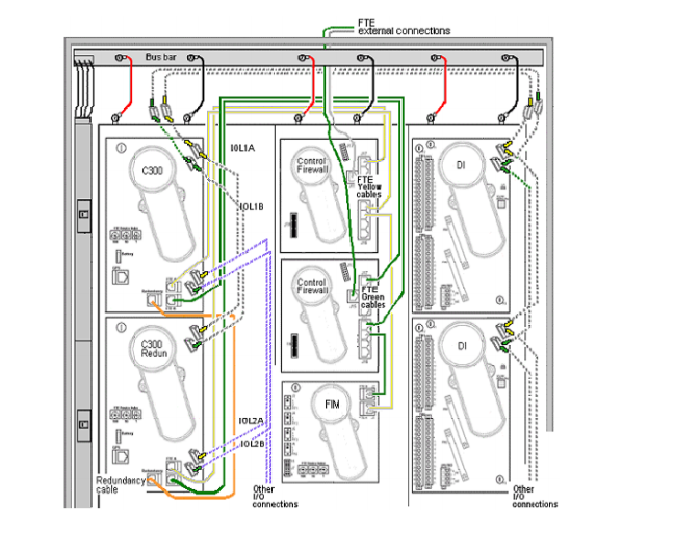

To replace the FOE module on the IOTA
1. Align the FOE screws (located on the flange) with the holes on the IOTA.
2. Tighten the four screws that attach the base of the FOE module to the IOTA board (using a
small Phillips screwdriver).
3. Connect the power cable from the IOTA board to the connector at the bottom of the module.
4. This completes the procedure.

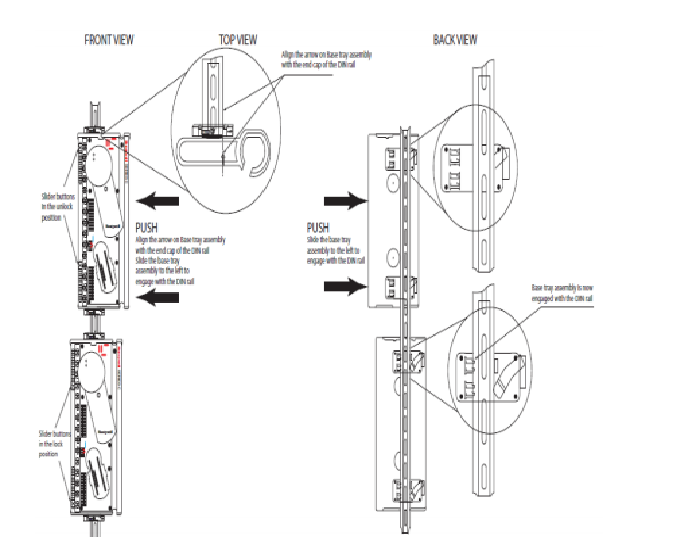

16.5.4 Removing the FOE module from the DIN rail
To remove the FOE module from the DIN rail
1. Power down the FOE module by opening the fuse holder of the terminal block using the lever
and removing the fuse
2. Remove all the cables before detaching the FOE modules. Perform the following steps to do
so.
a. Unscrew and remove the cable (HPN 51202930-200) running from the feed through
terminal of the system cabinet to the '+' fuse terminal of the terminal block
(Meanwell/Phoenix Contact power supply only).
b. Remove the power connector of the cable (HPN 51202948-100/51202948-200) from the
power supply by releasing the lock in the side and pulling it out gently (TDI power supply
only).
c. Unfasten the screw of the '-' fuse terminal of the terminal block on DIN rail and remove
the cable.
d. Unfasten the screw of the 'V+' terminal of power connector on the FOE module and
remove the cable.
e. Unfasten the screw of the '-' terminal of the feed through terminal block and remove the
cable.
f. Unfasten the screw of the 'V-' terminal of power connector on the FOE module and
remove the cable.
g. Remove the fiber optic cables from the FOE module by pulling it out gently.
h. Unscrew and remove the I/O Link cable (HPN 51202789-910 / 51202789-911) from the
FOE module or remove the I/O Link connector by pulling it out.
3. Unfasten the screw in the center of the end bracket and remove it by slightly lifting and pulling
it out.
4. Push the FOE module slightly downwards and slide it out at the lower edge of DIN rail.
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
