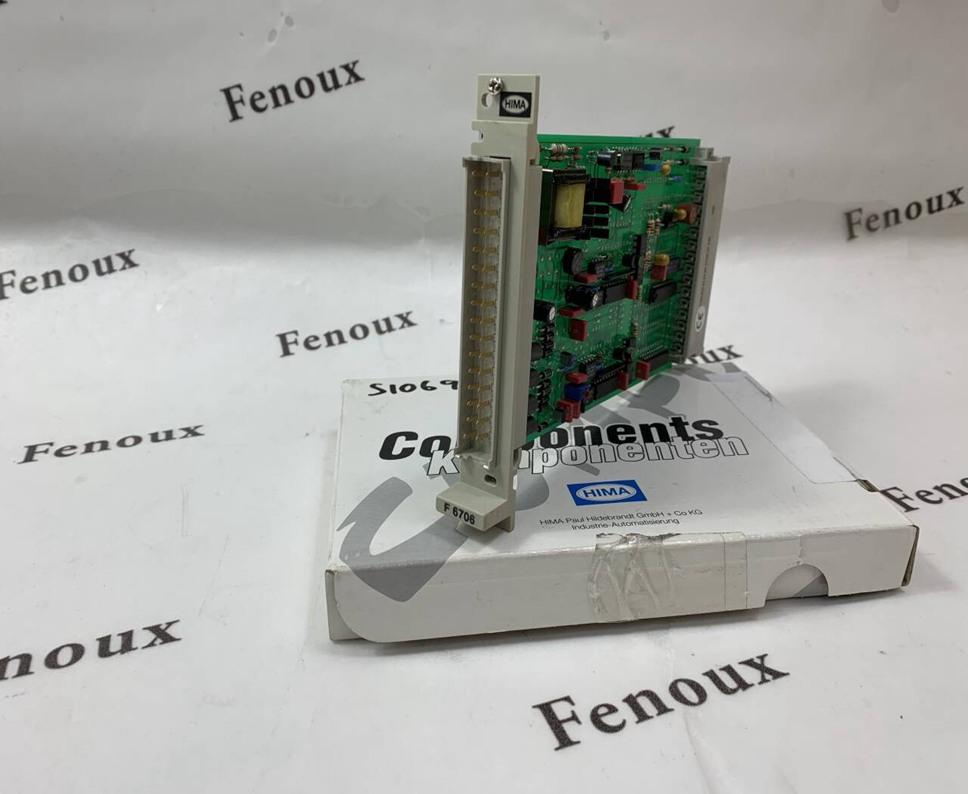

HIMA F6705 Digital Output Modules

HIMA F6705 Overview

The HIMA F6705 is a digital output module belonging to the HIMatrix series of safety control systems. It provides safety-related digital outputs for driving actuators such as valves, contactors, and solenoid valves, playing a crucial role in safety-critical industrial applications.

Product Detailed Description

• Function:

• Provides safety-related digital output signals.

• Used to drive various actuators to implement safety functions such as emergency shutdown, safe shutdown, etc.

• Each channel has diagnostic functions to detect faults such as wire breaks and short circuits.

• Supports redundant configurations to improve system availability and fault safety.

• Typically used in conjunction with HIMatrix series CPUs and other I/O modules to build a complete safety control system.

• Features:

• 8 safety-related digital output channels.

• Output type is typically PNP or P-switching.

• Each channel has independent diagnostic functions.

• Supports output currents up to 2 A (specific value depends on the model).

• Short circuit and overload protection.

• Rugged industrial design for harsh environments.

• DIN rail mounting.

Product Parameters

As there may be different versions or configurations of the HIMA F6705, the following are some typical parameters. Always refer to the official datasheet for the specific model:

• Number of Output Channels:

• 8

• Output Type:

• PNP (P-switching)

• Rated Output Voltage:

• 24 V DC

• Maximum Output Current:

• E.g., 0.5 A or 2 A/channel (depending on the model)

• Diagnostic Functions:

• Wire break detection

• Short circuit detection

• Overload detection

• Isolation Voltage:

• E.g., 500 V AC

• Supply Voltage:

• 24 V DC (typically supplied via the backplane bus)

• Power Consumption:

• Varies depending on the model and load

• Protection Degree:

• Typically IP20

• Operating Temperature:

• E.g., -25 °C to +60 °C

• Storage Temperature:

• E.g., -40 °C to +70 °C

• Safety Standards Compliance:

• E.g., SIL 3 (IEC 61508), PL e (EN ISO 13849-1) (depending on the model and configuration)

• Mounting Method:

• DIN rail mounting

Product Advantages

• High Safety:

• Designed for safety-critical applications, compliant with high safety integrity levels.

• Force-guided output contacts (if applicable) and comprehensive diagnostic functions ensure safe and reliable outputs.

• High Reliability:

• Rugged industrial design and extensive diagnostic functions improve system availability.

• Supports redundant configurations for further enhanced system reliability.

• Easy Integration:

• Seamless integration with other HIMA modules as part of the HIMatrix system.

• DIN rail mounting simplifies the installation process.

• Powerful Diagnostics:

• Independent diagnostic functions for each channel allow for quick detection and localization of faults, reducing downtime.

Precautions

• Correct Selection:

• Select the appropriate F6705 model based on the voltage and current requirements of the actuators and the required safety integrity level.

• Correct Installation:

• Follow HIMA's installation manual to ensure the module is correctly mounted on the DIN rail and connected to the backplane bus.

• Correct Wiring:

• Carefully follow the wiring diagrams to connect actuators and power supplies, ensuring correct and reliable wiring.

• Safety Circuit Design:

• Integrate the F6705 into a safety circuit that complies with relevant safety standards.

• Parameter Configuration:

• Use HIMA's engineering configuration tools to correctly configure module parameters, such as diagnostic responses and safety parameters.

• Regular Testing:

• Regularly test safety functions and diagnostic functions according to relevant safety regulations to ensure proper system operation.

• Environmental Conditions:

• Ensure the operating environment meets the module's temperature, humidity, and EMC requirements.

Product Applications

The HIMA F6705 digital output module is widely used in various safety-critical industrial sectors, such as:

• Process Industries:

• Oil and Gas: Emergency Shutdown Systems (ESD), Safety Instrumented Systems (SIS).

• Chemical: Safety shut-off valves, alarm systems.

• Pharmaceutical: Safety control of critical processes.

• Power Generation:

• Safety control systems for power plants.

• Transportation:

• Railway signaling safety systems.

• Other Safety-Critical Applications:

• Any industrial field requiring compliance with high safety integrity levels.
