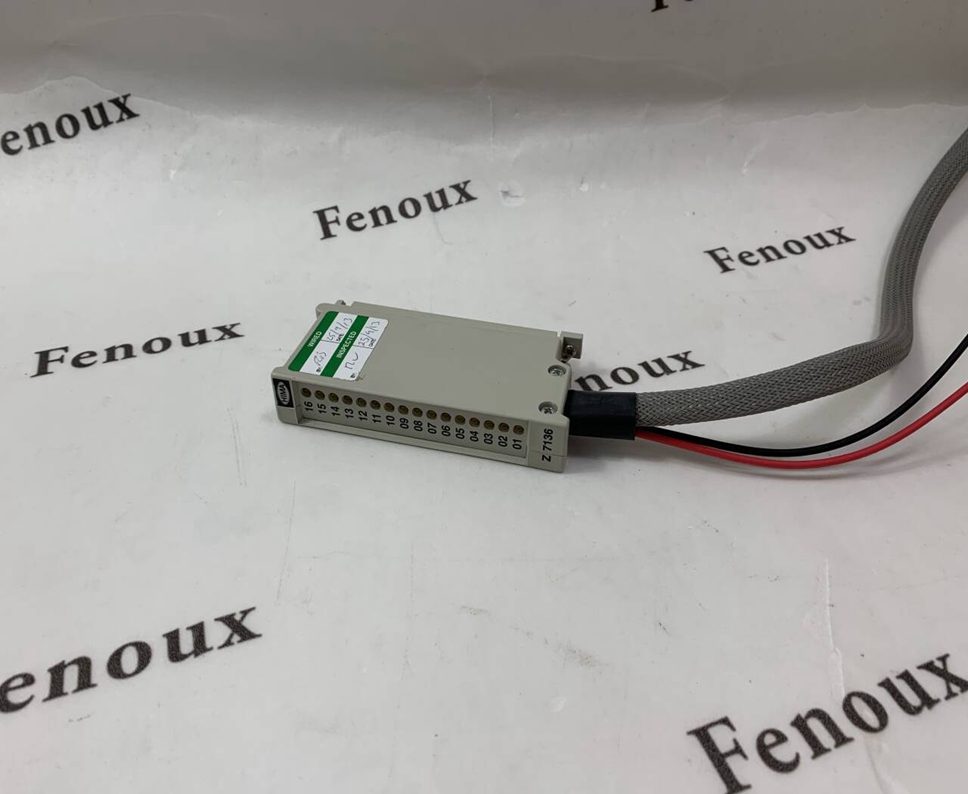

HIMA Z7136

HIMA Z7136 Safety Module

Brand:  HIMA

Model number:Z7136

Colour:new

Warranty: 12 months

Lead Time:3-day working day

Country of origin: USA Price: Please contact us

Product weight:1.105kg

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

HIMA Z7136 Safety Module


INQUIRE NOW

Products Name: HIMA Z7136

PRODUCT DESCRIPTION

The module supplies PES H41g with 5 VDC from a main supply of 24 VDC. It is a DC/DC con.verter with electrical isolation between input and output voltage. The module is equipped withovervoltage protection and current limitation. The outputs are short-circuit proof. The supplyconnections are separated for the central device/l0 modules and HlBUS interface.

HIMA Z7136 Safety Module

The present input voltage (L+) and the output voltages are indicated with LEDs on the frontplate. A proper operation of the module is still assured if the LED 5 V CPU/EA illuminates onlyslightly.

The power supply for the monitoring of the central device is fed separately via pin z16 (NG)

Operating dataPrimary fuse

Outputs for

central device/lO-modules

HIBUS

Efficiency rate

Space requirement

24 VDC, -15...+20 %, rpp < 15 %

5 AgL

5 VDC,士0.25 V 1 10 A

5 VDC,士0.25 V11 A> 70 %4 SU

All rights reserved. Equipment subject to change without notice:HIMA Paul Hildebrandt GmbH + Co KG, P.O. Box 1261, 68777 Bruh.
