Brand： Honeywell
Model number： 05701-A-0511
Colour：new
Warranty: 12 months
Lead Time：3-day working day
Country of origin: USA Price: Please contact us
Product weight：1.2kg
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Description:
The 5701 Series Control System is a microprocessor based system
which displays the reading and status of connected gas detectors. The
system provides complex alarm handling facilities with a full
maintenance capability.

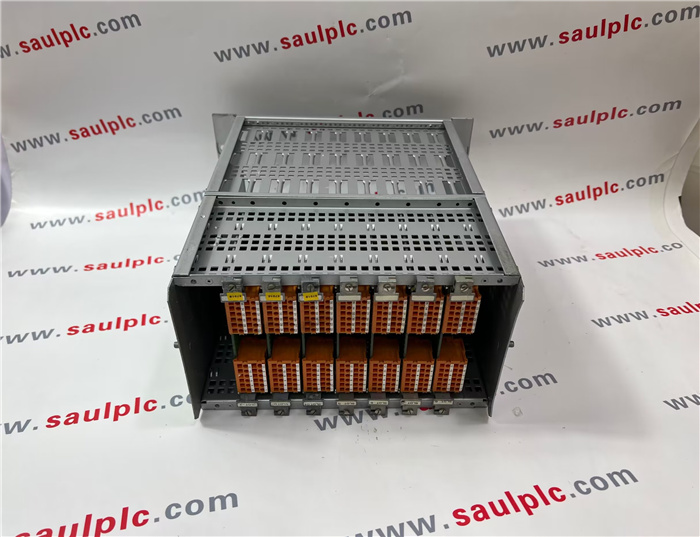

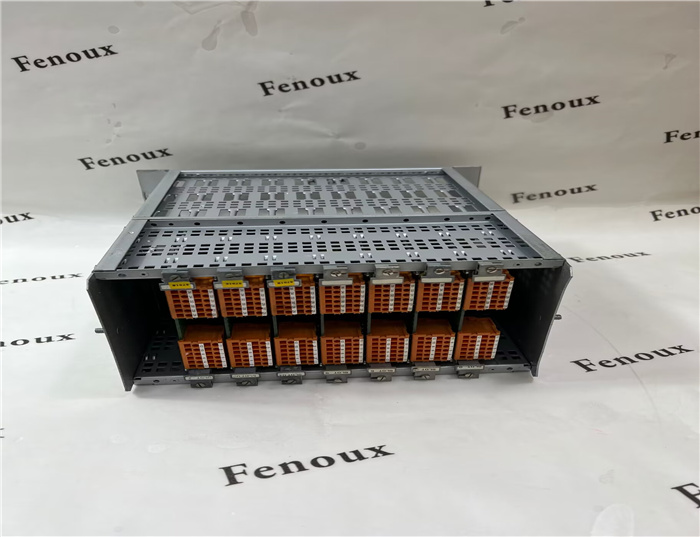

A rack system is fitted with a number of single channel control cards
each with an associated field/ relay card which provides the necessary
sensor input and optional relay output connections. Simple alarm
handling and operation is provided by each channel control card.
Complex alarm handling is achieved by communication between a
specified number of control cards via the backplane of the rack.
An engineering card is fitted to each rack and provides control of the
rack backplane communications, control card interrogation and
facilitates maintenance. In addition, optional modules fitted to the
engineering card can provide additional system outputs.
System power supplies, auxiliary power supplies and battery back up
systems are all normally connected to the rack via a DC Input Card,
however, for high integrity system installations power supplies can be
connected directly to each individual control card.
Both power supply units are provided with internal connections to
enable a power upgrade to 100W by the addition of a second 50W
Switched Mode AC to DC Power Supply Module (Part Number 05701-
A-0440).
A second sub-unit (Part Number 05701-A-0441) can be fitted to the
basic 16-way power supply unit if more than 100W is required to
operate the system. The additional sub-unit will contain a 50W Switched
Mode AC to DC Power Supply Module as standard and will therefore
give an additional 50W of available power. If required a further 50W
Switched Mode AC to DC Power Supply Module (Part Number 05701-
A-0440) can be added to this second sub-unit to bring the power
availability up to 200W.
The switched mode power supply modules used are fully overload
protected and are designed to be connected together.
8.3 Power Supply Connections
The input ac power supply is connected via a three core cable at the
rear of each unit.
The nominal 24V dc output supply is connected via a twin core cable
at the rear of each unit.
