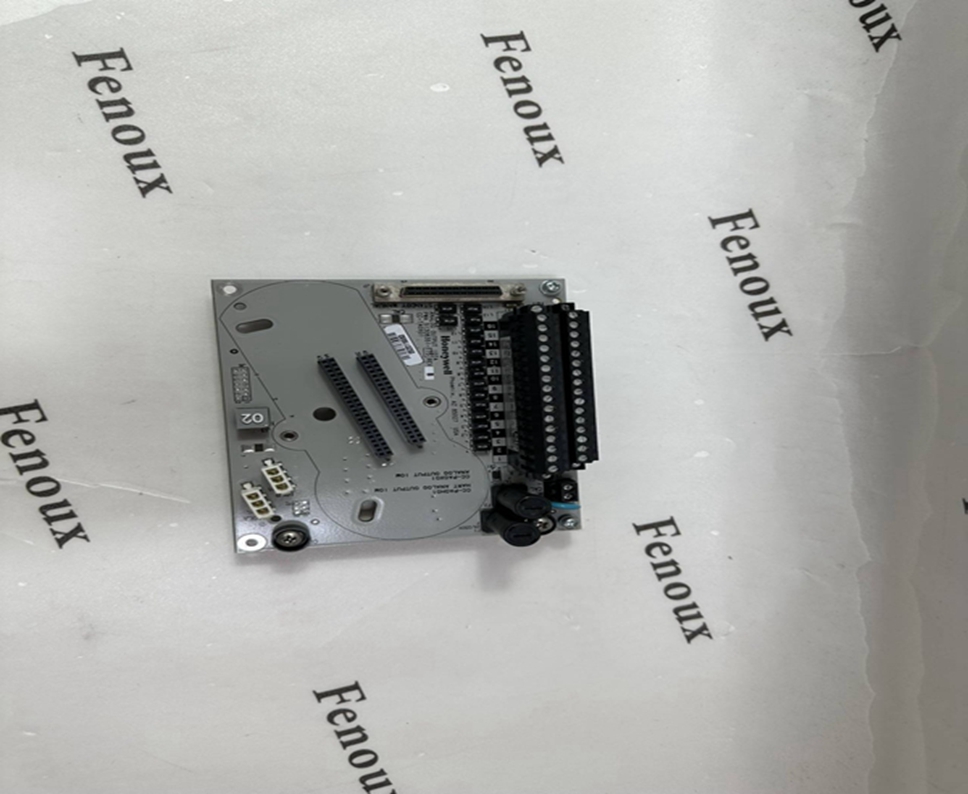

05704-A-0144 Honeywell Output module

Product Description

The Honeywell 05704-A-0144 is a 4-channel control card specifically designed for catalytic input in gas detection systems. It is a key component within the Honeywell System 57, providing reliable and efficient control

 for multiple gas sensors.

Key Features and Benefits

• 4-channel capability: Allows for simultaneous monitoring of up to four gas sensors.

• Catalytic input: Optimized for use with catalytic gas sensors, ensuring accurate and responsive detection.

• Constant current drive: Provides a stable and consistent current to the sensors, enhancing performance and longevity.

• Electronic adjustment: Offers flexibility in configuring the control card to meet specific application requirements.

• Fault detection: Includes built-in features to detect open circuits and short circuits, ensuring system reliability.

• Compatibility: Seamlessly integrates with other components within the Honeywell System 57.

Technical Specifications

• Power consumption: 12.8W maximum, 8.5W typical

• Initial accuracy: ±1%

• Current adjustment: Electronic, in 1mA steps from 90 to 315mA

• Maximum drive voltage: 10V

• Maximum line resistance: 40 ohms

• Full scale signal range: 15mV to 300mV

Precautions and Considerations

• Installation: Ensure proper installation according to the manufacturer's guidelines to avoid damage and ensure optimal performance.

• Compatibility: Verify compatibility with other system components before installation.

• Maintenance: Regular calibration and maintenance are essential for accurate and reliable operation.

• Environmental conditions: Consider the operating environment, including temperature and humidity, when selecting and installing the control card.

Applications

The Honeywell 05704-A-0144 is widely used in various industries where gas detection is critical, including:

• Oil and gas: Monitoring for combustible gases in hazardous areas.

• Chemical processing: Detecting toxic and flammable gases in industrial processes.

• Power generation: Ensuring safe operation of power plants.

• HVAC systems: Monitoring indoor air quality.

Additional Resources

For more detailed information and technical specifications, please refer to the following resources:

• Honeywell product datasheet: [Link to datasheet]

• Reseller websites: [Link to reseller websites]

Note: To obtain the most accurate and up-to-date information, it is recommended to consult the official Honeywell documentation or contact a Honeywell representative.
