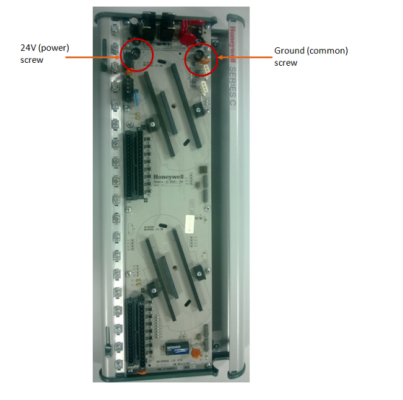

IOTA is mounted on the base tray
l Power supply is installed
l Control firewall is installed
l All wiring and pre-fabricated cables are available and labeled as applicable
l Ensure that power is turned off at the location of UIO installation
l Mounting hardware is supplied with the components
8.11.2 To mount UIO module on IOTA
1. Insert the UIO module into IOTA board and ensure that the circuit board matches properly
with the IOTA board connector.
2. Secure the module to the:
l IOTA board - with two screws located at each side of the plastic cover.
l Base tray - with the long gray plastic screw located at the front of the module. This is
applicable only if this provision exists.
ATTENTION
l Ensure that the lifting lever, which is available with the UIO module, should be
in vertical position to ensure proper insertion of the IOM with the IOTA.
l Only use a #2 Phillips screwdriver to carefully loosen or tighten the long gray
plastic screw. Do not use either a #1 Phillips screwdriver or a battery-powered
screwdriver to remove or install the plastic screw as this can damage the screw
head..
