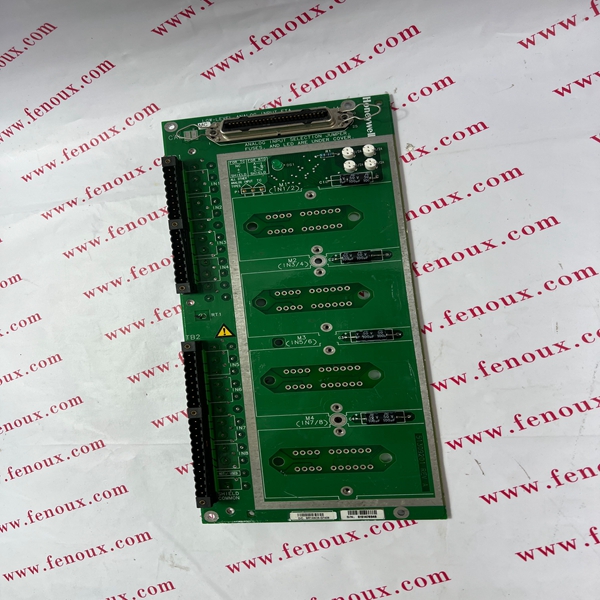

If multiple instruments need a ground reference the four positions of TB2 can serve as those ground points (assuming the JP17-JP20) jumpers are intact. If more than four grounding screws are needed then a custom wire from TB2 to a separate terminal block can allow for more grounding screw positions.
When the unit is switched ON, the Display Screen shows the current humidity percentage.
Press or to select your preferred humidity level. The humidity is adjusted in increments of 5%
by pressing or . The adjustable Relative Humidity (RH) range is between 30% RH to
90% RH. Ten seconds after setting the preferred humidity setting, the display will revert back
to displaying the current humidity.
Recommended Settings: It is recommended to leave the unit running at 30% humidity at
High Fan Speed during the first 2 to 3 days until damp odors are removed. After a few days when
the Relative Humidity has been reduced to a more comfortable level, press or to choose a
higher RH% that maintains a comfortable humidity level thereafter. A recommended healthy
humidity level is between 40% and 50%.
NOTE: The humidity sensor senses current humidity in the surrounding area. It is normal for a few
degrees of variance to the humidity sensitivity from the sensor.
CONTINUOUS MODE
To activate the Continuous Mode, press the button on the Display Screen until appears.
The indicator light will be illuminated. The unit will run continuously.

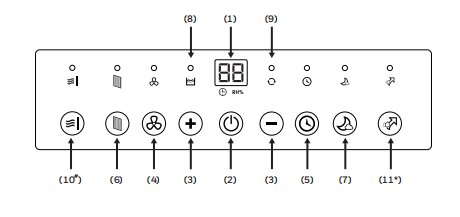

FUNCTION BUTTONS
USE & OPERATION (CONTINUED)
EN
WATER TANK FULL ALERT
When the Water Tank is full, the indicator will be illuminated. The unit will beep for 3 seconds.
The compressor will shut off, and the fan will stop for a few minutes. To switch off the indicator
light, empty the water tank and when replacing it ensure the tank is secured properly in place.
IMPORTANT: Do not place the Water Tank on the floor when full. In case of an uneven base which may
cause the tank to spillover.
