SIEMENS SITOP PSU100M 6EP1337-3BA00 Overview

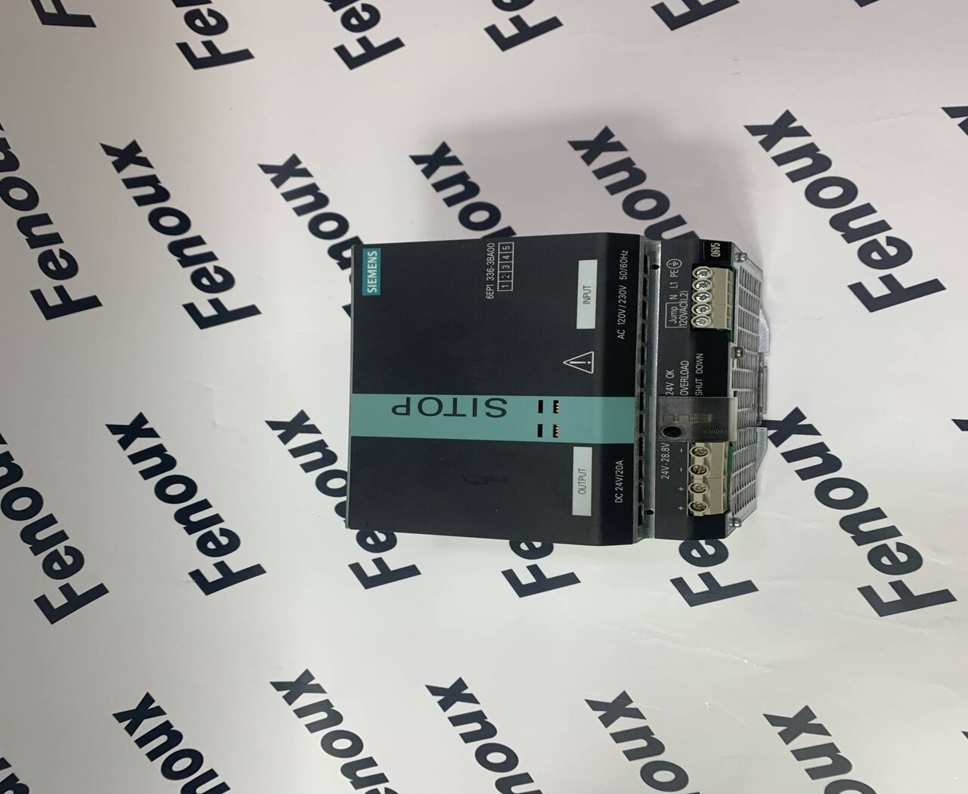

The Siemens SITOP PSU100M 6EP1337-3BA00 is a single-phase regulated power supply from the SITOP PSU100M series. It is designed to provide a reliable 24 V DC power supply for various industrial and automation applications.

Product Detailed Description

• Function:

• Converts single-phase AC input voltage to a stable 24 V DC output voltage.

• Provides overload and short-circuit protection to ensure the safety of connected devices.

• Features high efficiency, helping to reduce energy consumption and heat dissipation.

• Compact design saves installation space.

• Features:

• Wide input voltage range for use with different AC power networks.

• Reliable overload behavior with constant current characteristic.

• Adjustable output voltage for fine-tuning within a certain range.

• LED indicator for displaying operating status.

• DIN rail mounting for easy and quick installation.

Product Parameters

• Input Voltage:

• Single-phase AC 120/230 V (range: 85-132 V AC / 170-264 V AC), selectable via switch.

• Output Voltage:

• DC 24 V (adjustable range: 22.8-25.2 V DC).

• Output Current:

• 15 A.

• Output Power:

• 360 W.

• Efficiency:

• Typically 93%.

• Protection Functions:

• Overload protection (constant current).

• Short-circuit protection (automatic restart).

• Over-temperature protection.

• Connection Method:

• Screw terminals.

• Mounting Method:

• DIN rail mounting.

• Degree of Protection:

• IP20.

• Ambient Temperature:

• Operating temperature range: -25 °C to +70 °C (derating above +55 °C).

• Storage temperature range: -40 °C to +85 °C.

• Dimensions (W x H x D):

• 80 mm x 125 mm x 130 mm.

• Standards Compliance:

• CE, cULus, EAC, etc.

Product Advantages

• High Reliability:

• Siemens SITOP power supplies are known for their high reliability and long service life.

• High Efficiency:

• Typical efficiency of 93% helps reduce energy costs and heat generation.

• Compact Design:

• Saves installation space in control cabinets.

• Easy Installation:

• DIN rail mounting is simple and quick.

• Wide Input Voltage Range:

• Suitable for different power networks worldwide.

• Reliable Overload Behavior:

• Constant current characteristic helps maintain system operation during overload conditions.

Precautions

• Correct Input Voltage Selection:

• Select the correct input voltage range (120 V AC or 230 V AC) according to the local power supply voltage.

• Correct Wiring:

• Connect the input and output terminals correctly according to the wiring diagram, ensuring correct polarity.

• Ambient Temperature:

• Ensure the operating ambient temperature is within the allowable range; consider derating if necessary.

• Ventilation:

• Ensure sufficient ventilation around the power supply to prevent overheating.

• Overload Protection Coordination:

• Although the power supply has its own overload protection, overall protection coordination should still be considered when designing circuits.

• Safe Operation:

• Always observe electrical safety regulations during installation and maintenance.

Product Applications

• Industrial Automation:

• Powering PLCs, HMIs, sensors, and other automation components.

• Mechanical Engineering:

• Providing a stable 24 V DC power supply for various machines and equipment.

• Building Automation:

• Powering control systems, lighting, and security systems.

• Process Control:

• Powering instruments and equipment in process control systems.

• **Other applications requiring a reliable 24 V DC power supply.
