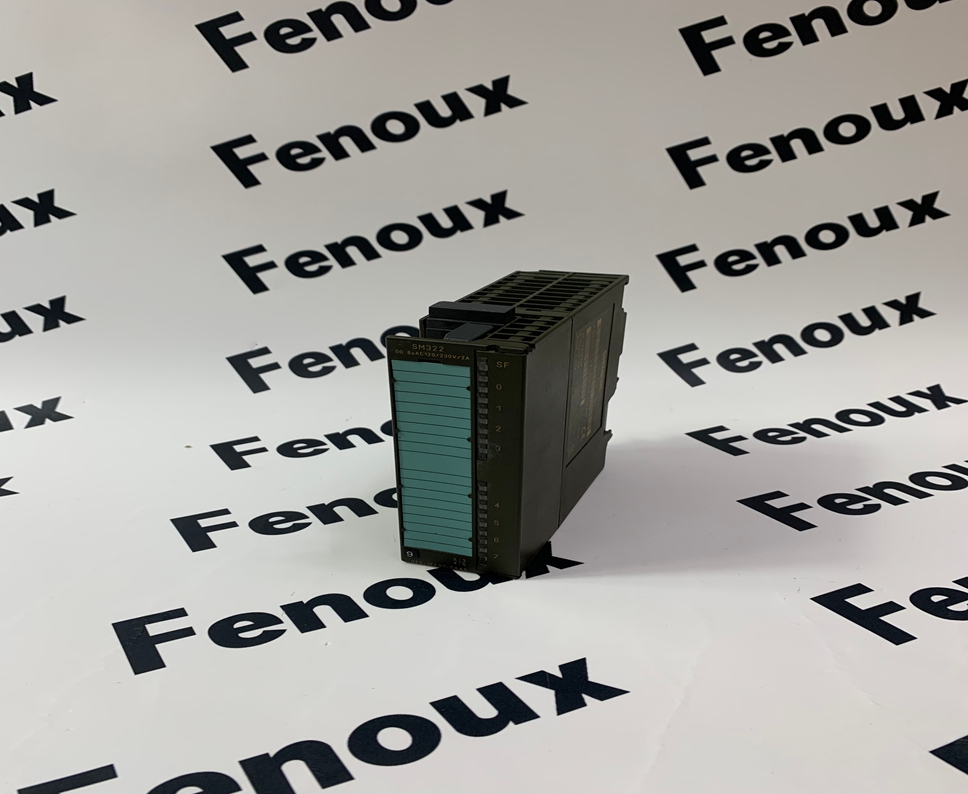

Siemens 6ES7322-1FF01-0AA0 digital output module

Product Detailed Description

• Function:

• Provides 8 digital outputs for controlling AC loads.

• Switches ON/OFF external AC devices based on signals from the S7-300 PLC CPU.

• Features optical isolation between the channels and the backplane bus, enhancing electrical safety and preventing interference.

• Features:

• Isolated Outputs: Channels are electrically isolated, which helps protect the PLC from electrical disturbances on the field side and vice-versa.

• AC Voltage Compatibility: Designed for common industrial AC voltages of 120V and 230V.

• 8 Digital Outputs: Provides ample outputs for various control tasks.

• 1 Ampere per channel: Suitable for switching loads up to 1A per output.

• 20-pole Front Connector: Utilizes a standard 20-pole front connector for easy wiring.

• Short-Circuit Protection: Equipped with fuse protection per group (e.g., 8A, 250V fuse) to protect the module in case of short circuits.

• Zero-Crossing Switching: The outputs typically feature zero-crossing switching, which extends the life of relays and connected loads by switching at the AC voltage's zero crossing.

• Compact Design: Fits within the standard SIMATIC S7-300 module form factor.

Product Parameters

• Product Type: Digital Output Module

• Series: SIMATIC S7-300 SM 322

• Article Number: 6ES7322-1FF01-0AA0

• Number of Digital Outputs: 8

• Output Type: AC Output (Relay or Triac, typically Triac for this specification)

• Load Voltage (Rated Value): 120/230 V AC

• Permissible Load Voltage Range (AC): 93 V to 264 V

• Permissible Frequency Range: 47 Hz to 63 Hz

• Output Current (Rated Value for Signal "1"): 1 A (for 40 to 60 °C), 2 A (for 0 to 40 °C)

• Short-Circuit Protection: Yes, per group (Fuse 8A, 250V)

• Zero-Crossing Switching: Yes (Max. 60V)

• Output Delay (0 to 1 / 1 to 0): Max. 1 AC cycle (with resistive load)

• Switching Frequency (Resistive Load): Max. 10 Hz

• Power Loss (Typical): 8.6 W

• Current Consumption (from backplane bus 5V DC): Max. 100 mA

• Electrical Isolation: Between channels and backplane bus; also between channels in groups (specific grouping details require deeper manual check, but isolation is present).

• Dimensions (W x H x D): 40 mm x 125 mm x 117 mm (approx.)

• Net Weight: 0.294 kg

• Front Connector: 1x 20-pole

• Country of Origin: Germany

• Product Lifecycle: PM400: Announcement of product phase-out (as of October 1, 2023). This means it is no longer actively manufactured but might still be available through surplus or repair channels.

Product Advantages

• Reliable AC Switching: Designed for robust and reliable switching of AC loads in industrial environments.

• Electrical Isolation: Provides crucial isolation, protecting the PLC and sensitive electronics from high voltage or noise from the field devices.

• Built-in Protection: Integrated fuse protection offers a degree of self-protection for the module against short circuits.

• Zero-Crossing Switching: Reduces wear on output contacts and connected loads, leading to longer service life.

• Standard S7-300 Integration: Seamlessly integrates into existing SIMATIC S7-300 automation systems.

• Diagnostic Capabilities: While not explicitly detailed as advanced diagnostics, the module provides status LEDs per channel.

Precautions

• Product Phase-Out: Be aware that this module is in the "product phase-out" stage since October 1, 2023. This means it may become increasingly difficult to acquire new units and support might be limited in the future. Consider migration strategies for long-term projects.

• Correct Wiring: Adhere strictly to the wiring diagrams in the Siemens manual for connecting power, loads, and the module itself to the backplane. Incorrect wiring can damage the module or connected devices.

• Load Compatibility: Ensure the connected loads (current, voltage, inductive/resistive nature) are within the specified limits of the module's outputs. Pay attention to the switching frequency limitations for inductive loads.

• Fuse Replacement: In case of a short circuit, replace blown fuses with the specified type (8A / quick response).

• Environmental Conditions: Operate the module within its specified temperature and humidity ranges.

• ESD Protection: Always observe electrostatic discharge (ESD) precautions when handling and installing the module.

Product Applications

The Siemens 6ES7322-1FF01-0AA0 module is typically used in a wide range of industrial automation applications where AC loads need to be controlled by a SIMATIC S7-300 PLC, including:

• Lighting Control: Switching industrial lighting systems.

• Motor Control: Controlling smaller AC motors (e.g., fractional horsepower motors) via contactors or relays.

• Solenoid Valve Control: Actuating AC solenoid valves in pneumatic or hydraulic systems.

• Heater Control: Switching on/off heating elements.

• Alarm and Signaling Devices: Activating horns, sirens, or indicator lights.

• General Purpose AC Load Switching: Any application requiring direct switching of 120V or 230V AC loads within the module's current rating.

• HVAC Systems: Controlling AC components in heating, ventilation, and air conditioning systems.
