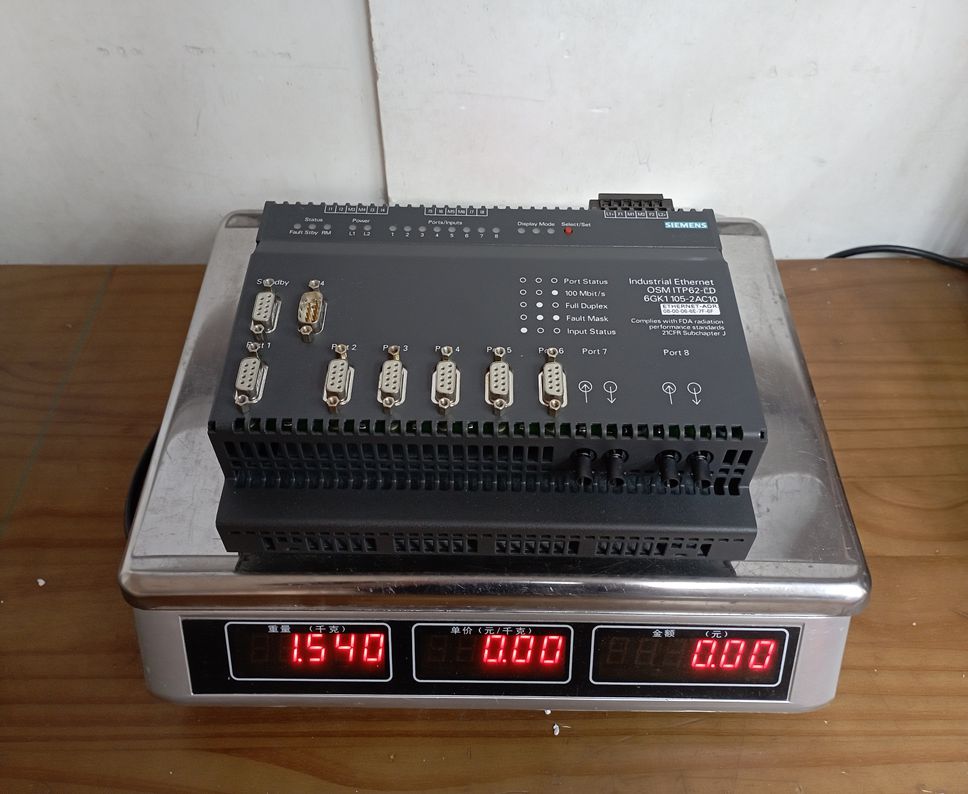

SIEMENS 6GK1105-2AC10 Ethernet switch

The SIEMENS 6GK1105-2AC10 is a module typically associated with SIEMENS Industrial Communication products, specifically within the PROFIBUS ecosystem, often used for connection to optical fiber networks.

Here is a detailed description, including parameters, advantages, important notes, and applications, in English.

1. Product Detailed Description

The SIEMENS 6GK1105-2AC10 is generally identified as a PROFIBUS OLM (Optical Link Module).

• Function: It serves as a media converter, specifically converting the electrical PROFIBUS DP signal (RS-485) into an optical signal for transmission over fiber optic cables, and vice-versa.

• Purpose: This allows for the establishment of PROFIBUS networks over long distances and in electrically noisy environments where fiber optics offer superior immunity to electromagnetic interference (EMI).

• Design: The module usually features one electrical PROFIBUS interface (typically 9-pin D-sub connector) and optical ports (often F-SMA connectors, depending on the variant) for connecting fiber optic cables. It is designed for DIN rail mounting.

• Variant: The '2AC10' typically indicates a specific configuration, often related to the type of fiber supported (e.g., multimode) and the number of optical channels.

2. Product Parameters (Typical Specifications)

Please note that exact specifications should always be verified using the official Siemens product datasheet. The following are typical parameters for a module in this series :

3. Product Advantages

• Extended Range: Fiber optic transmission allows for significantly longer transmission distances (up to several kilometers) compared to standard copper RS-485 cables (max. 1.2 km).

• High EMI Immunity: Fiber optic cables are completely immune to electromagnetic interference (EMI), making the OLM ideal for harsh industrial environments, high-voltage areas, or where heavy machinery causes electrical noise.

• Ground Loop Elimination: Since fiber optics are non-conductive, they inherently eliminate issues related to ground loops and potential differences between distant network segments.

• Flexible Network Topologies: The OLM facilitates various network structures, including star, line, and redundant rings on the optical side, enhancing network reliability and design flexibility.

• High Reliability: Features like integrated diagnostics (e.g., link quality monitoring) and redundant optical ring capability (in some configurations) ensure high system availability.

4. Important Notes (Precautions)

• Fiber Type Matching: Ensure the fiber optic cable type (multimode or single-mode) and the connector type (e.g., F-SMA) precisely match the specifications of the 6GK1105-2AC10 OLM. Mismatches will prevent communication.

• Proper Termination: Use the correct PROFIBUS termination resistor (usually switchable or via an active bus termination) on the electrical PROFIBUS segment connected to the OLM, especially if the OLM is at the end of the line.

• Installation Environment: Though the fiber is robust, ensure the OLM itself is installed within its specified temperature and environmental limits ($0^\circ \text{C}$ to $+60^\circ \text{C}$).

• Cable Handling: Handle fiber optic cables with care. Do not bend them sharply, as this can introduce optical signal loss (attenuation). Always clean optical connectors before installation.

• Power Supply: Use a reliable 24 V DC industrial power supply to ensure stable operation of the module.

5. Product Applications

The SIEMENS 6GK1105-2AC10 OLM is essential for robust and long-distance PROFIBUS networking in industrial automation:

• Large Scale Plants: Connecting widely separated control cabinets or field devices across a large manufacturing facility, airport, or tunnel systems.

• Inter-Building Communication: Linking different industrial buildings or sites over long optical distances.

• High-Noise Environments: Used in steel mills, power generation plants, or heavy industrial machinery areas where strong EMI is present and would disrupt copper communication.

• Infrastructure: Applications like transportation systems, chemical plants, or oil and gas facilities where network reliability and immunity to environmental factors are critical.

• Redundant Networks: Implementing optical redundant ring topologies (when paired with suitable devices) to ensure uninterrupted communication even if one fiber link fails.
