Siemens 6XV1440-4BH80 Connecting cables

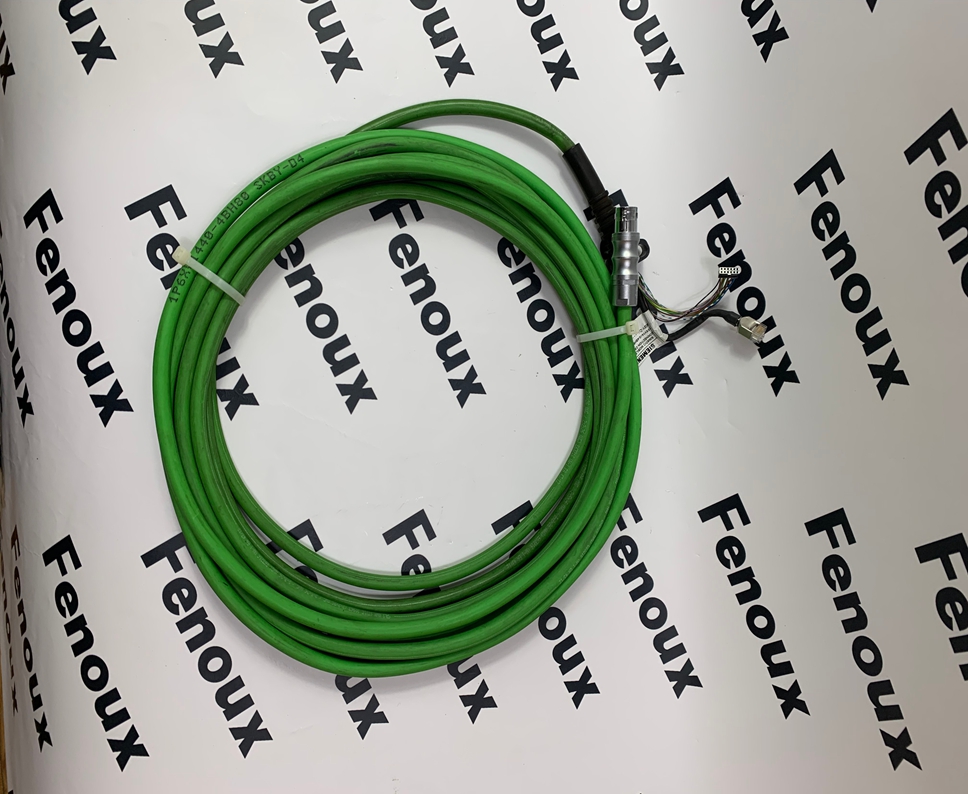

Siemens 6XV1440-4BH80 - Connection Cable for Mobile Panels (PROFINET) Overview

The Siemens 6XV1440-4BH80 is a pre-assembled, 8-meter long connection cable specifically designed for connecting Siemens Mobile Panels to a PROFINET network. This cable is essential for ensuring robust and reliable communication between the mobile HMI device and the automation system in an industrial environment.

Product Detailed Description

• Function: This cable provides the physical link for data communication and potentially power supply (depending on the Mobile Panel model) between a Siemens Mobile Panel (such as the SIMATIC HMI Mobile Panel 277F IWLAN or similar) and a PROFINET-enabled industrial network. PROFINET is Siemens' industrial Ethernet standard for automation, enabling real-time communication for control and data exchange.

• Purpose: It allows operators to move freely within a certain radius while maintaining a stable and secure connection to the machine or plant. This is crucial for applications requiring flexible operator interaction, troubleshooting, or maintenance tasks that demand mobility.

• Design: The cable is engineered for industrial use, featuring a robust jacket material that offers resistance to various environmental factors commonly found in manufacturing facilities.

• Scope of Supply: This product typically includes one complete connection cable.

Product Parameters

• Product Type Designation: PN Connection Cable

• Length: 8 meters (8 m)

• Application: Specifically for Mobile Panels (PROFINET)

• Rated Voltage (DC): 24 V (This indicates its suitability for systems with a 24VDC power supply, which is common in industrial automation).

• Degree of Protection (IP):

• IP65 (Front)

• IP65 (Rear)

• Note: This IP rating indicates protection against dust ingress and low-pressure water jets from any direction, making it suitable for many industrial environments.

• Standards / Approvals / Certificates:

• CE Marking: Yes

• Suitable for Safety Functions: Yes (e.g., for Emergency Stop, Acknowledge buttons on the Mobile Panel)

• Environmental Conditions (Operating):

• Minimum Ambient Temperature: 0 °C

• Maximum Ambient Temperature: 55 °C

• Environmental Conditions (Transport/Storage):

• Minimum Ambient Temperature: -40 °C

• Maximum Ambient Temperature: 70 °C

• Relative Humidity (Operating): Maximum 85%

• Cable Jacket Color: Green (typical for PROFINET cables)

• Oil Resistance: Yes (Resistant to hydrolysis and oil in accordance with VDE 0472 Part 803/B, and resistant to common lubricants and hydraulic oils).

• Resistance to Chemicals: Resistant to MEK, Xylene, Toluene, Isopropanol.

• Cable Jacket Material: Special polyurethane, flame-retardant according to VDE 0472, Part 804, test type B, Shore hardness A 88, flame retardant UR Style 20963.

• Minimum Bending Radius: 45 mm

• Cable Thickness: 9 mm

• Compatible Products: Known to be used with various Siemens Mobile Panels, including (but not limited to) 6AV6645-0CA01-0AX0, 6AV6645-0CB01-0AX0, 6AV6645-0BE02-0AX0, and other 6AV6645-0A* series panels.

Product Advantages

• Reliable PROFINET Communication: Ensures stable and high-speed data exchange critical for real-time industrial control.

• Industrial Robustness: Designed with a special polyurethane jacket that provides excellent resistance to oil, chemicals, flame, and mechanical stress, crucial for harsh factory environments.

• High Degree of Protection (IP65): Suitable for applications where dust and water splashes are present.

• Safety Integration: Can be used in safety-relevant applications, supporting functions like emergency stop and acknowledgment buttons on mobile panels, contributing to machine safety.

• Flexible Operation: The 8-meter length provides ample reach for operators to move around and interact with machinery from different positions.

• Pre-assembled: Reduces installation time and ensures correct wiring, minimizing potential errors.

• Siemens Quality: As a genuine Siemens product, it guarantees compatibility and performance within the Siemens automation ecosystem.

Precautions

• Correct Application: Ensure this specific cable is compatible with your Siemens Mobile Panel model and the PROFINET infrastructure.

• Installation: Follow Siemens' installation guidelines for cable routing to avoid sharp bends (respect the minimum bending radius of 45 mm) or excessive pulling tension, which could damage the cable's internal structure.

• Environmental Limits: Do not operate or store the cable outside its specified temperature and humidity ranges.

• Damage Check: Before use, visually inspect the cable for any signs of physical damage, cuts, or abrasions that could compromise its integrity or performance.

• ESD Protection: When connecting or disconnecting, ensure proper electrostatic discharge (ESD) precautions are taken to protect sensitive electronic components.

• Cable Management: Use appropriate cable management techniques to prevent tangling, snagging, or crushing of the cable during operation.

Product Applications

The Siemens 6XV1440-4BH80 connection cable is essential for applications utilizing Siemens Mobile Panels in PROFINET environments, including:

• Machine Tools: Allowing operators to safely set up, monitor, and troubleshoot machining processes directly at the machine.

• Robotics: For teaching robots or performing maintenance tasks where an operator needs to be close to the robot arm while maintaining control.

• Assembly Lines: Providing flexible control and monitoring points along an assembly line.

• Material Handling Systems: Operating conveyors, AGVs (Automated Guided Vehicles), and other material transport equipment.

• Packaging Machinery: Adjusting parameters, clearing jams, or performing manual operations on packaging lines.

• Process Plants: Enabling operators to interact with valves, pumps, and other field devices directly from their location.

• Any Application Requiring Mobile HMI: Generally used wherever an operator needs to move around a machine or plant area while maintaining a direct and reliable HMI connection.
