YOKOGAWA CP451-10

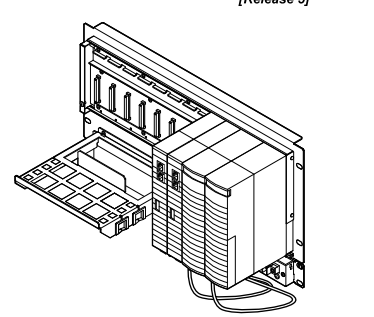

Models AFV10S,AFV10DField Control UnitDuplexed Field Control Unit(for Vnet/lP and FIO, 19-inch RackMountable Type)

GENERAL

This GS covers the hardware specifications of theField Control Unit (FCU which is the core of thecontrol function of the Field Control Station (FCS)

For the installation specifications and the environmentalconditions common to the systems, refer to “Vnet/lPSystem Overview (netlP Edition)(GS 33K01A1050E).

ProcessorVR5432 (133 MHz)

Main Memory Capacity32 Mbyte

Memory Protection During Power FailureBatteryBattery Back-up for Main Memory: Max. 72 hoursBattery Recharge Time: Min. 48 hours

FCU Status Contact Output2 terminals (NCC)Contact Points open during FCU failureContact Rating: 30 V DC, max.0.3 ACommunication interfaceVnetlP Interface: Duaredundant

For more details, refer to “Integrated Production ControlSystem CENTUM VP System Overview (Vnet/IPEdition)(GS 33K01A10-50E)

No. of Node Units Connectable

Max.14/FCU

The total number of ESB Bus Node Units and ERBus Node Units that can be connected to FCU are 14or less.(ESB Bus Node Units: 9 or less)LFS1500 allows up to 3 nodes, and can be expandedto 14 if LFS1550Application capacity ExpansionPackage (for AFV10D) is added.To connect a node unit to the FCU. a Node UnitExpansion License (Option code: /NDEL)is required

for the node unit.Module configurationPower Supply Module (PW481 or PW482 or PW484)Two modules in case of a dual-redundantconfiguration.Processor Module (CP45"纸瘩): Two modules in case ofa dua-redundant configuration.ooules( A1aX.8
