ABB CC-E/STD

Container Information

Package Level 1 Units

Package Level 1 Width

Package Level 1 Depth /_ength

Package Level 1 Height

Package Level 1 GrossWeight

Package Level 1 EAN

1 piece

81 mm

27 mm

109 mm

0.1 kg

4013614351747

classifications

General Information

Extended Product Type

Product ID

EAN

Catalog Description

Long Description

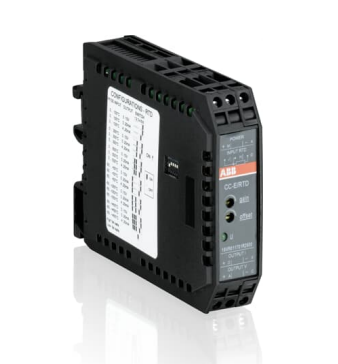

CC-E RTD/I

1SVR011732R1300

4013614351747

CC-E RTD/I Temp. converter, singlef. PT100 0-100°C /4-20mA, 24VDC

The CC-E RTD/l is a single-function temperature signal converter from the CC-E range. Thisconverter, with 3-way electrical isolation, for RTD sensors (PT100, 2- or 3-wire connection).operates with a rated control supply voltage of 24 V DC. It provides an input temperaturerange of 0..100 °C and an output signal range of 4-20 mA. Applied supply voltage isdisplayed by a green LED

Ordering

Minimum Order Quantity

Customs Tariff Number

Product Main Type

1 piece

85369095

CC-E

Popular Downloads

Data Sheet, TechnicalInformation

Instructions and Manuals

2CDC110004C0210 05

1SVC011700M9000

Product Net Width

Product Net Depth

Length

Product Net Height

Product Net Weight

22.5 mm

107 mm

75 mm

0.086 kg

Technical

Function

Output Signal

Power Loss

Rated Control Supply

Voltage (U)

Standards

Sub-Function

RTD sensor signals

Single-function

4 ... 20 mA

Approximately 2 W

24VDC

CAN/CSA C22.2 No.14

EN 50178

IEC/EN 63000

IEC/EN 61000-6-2

IEC/EN 61000-6-4

UL 508

Single-function
