ABB DSMB-02C Frequency converter braking unit

Brand： ABB

Model number：DSMB-02C

Warranty: 12 months

Lead Time：3-day working day

Country of origin: USA Price: Please contact us

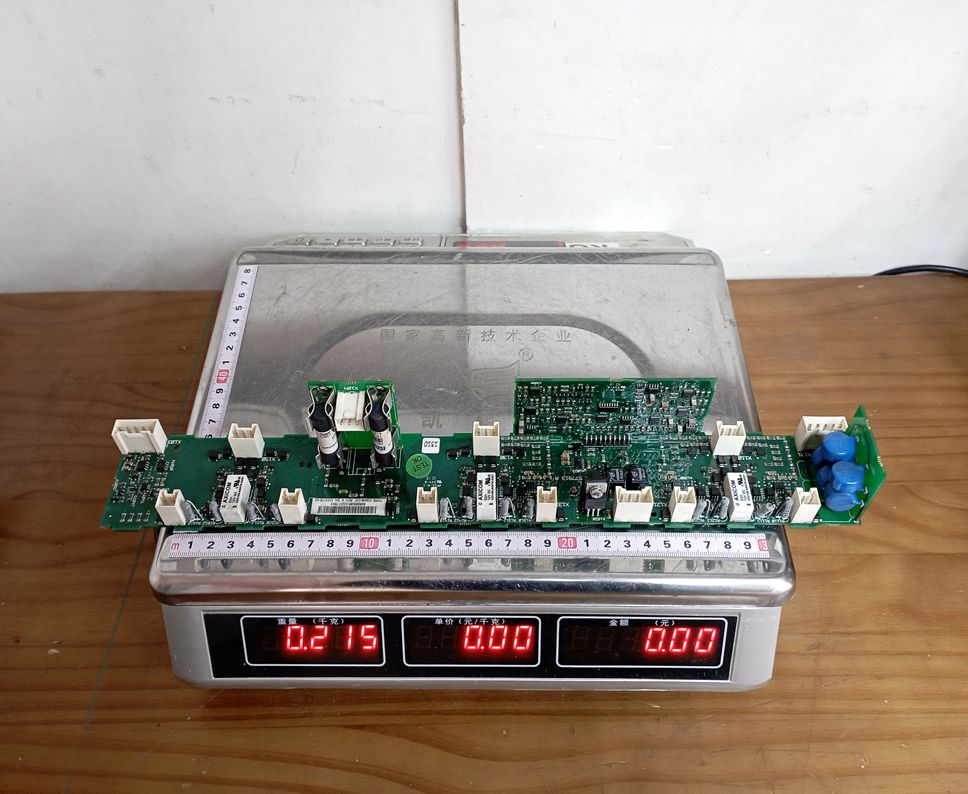

Product weight：0.2kg

Shipping Port: China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

ABB DSMB-02C Frequency converter braking unit

INQUIRE NOW

Products Name: ABB DSMB-02C Frequency converter braking unit

PRODUCT DESCRIPTION

The ABB DSMB-02C, often referred to as a Control Board or Main Board, serves as the central processing unit and control interface for the drive or control system it is installed in. It utilizes high-speed microprocessors and advanced control algorithms to manage complex motion control and automation tasks.

Manufacturer: ABB
Part Type: Control Board / Controller Module / Main Board
Compatibility: Primarily used in ABB ACS800-104 drive units and ACS800 MD DSU (Drive System Unit) frames.

⚙️ Product Parameters (Typical Specifications)

While precise parameters can depend on the specific drive configuration, here are the typical specifications associated with the DSMB-02C:

Parameter Category	Specification	Notes
Power Supply	$90 - 264 \text{ V AC}$ (Nominal $220 \text{ V AC}$)	Wide input voltage range for flexibility.
Power Consumption	Up to $20 \text{ W}$	Relatively low power consumption for a control board.
Processor/Performance	High-speed microprocessors, advanced algorithms.	Ensures real-time performance and stability for motion control.
Interfaces	Modular I/O	Supports connection to various sensors and actuators.
Communication	$\text{RS-485, Ethernet}$ (or Modbus TCP/IP)	Allows integration into industrial networks and different communication protocols.
Memory Capacity	Typically $16 \text{ KB RAM}$, $32 \text{ KB ROM}$	Used for program storage, control logic, and data handling.
Operating Temp.	$-10^\circ \text{C}$ to $+50^\circ \text{C}$ (Some sources state $-20^\circ \text{C}$ to $+55^\circ \text{C}$)	Indicates suitability for standard industrial environments.
Reliability Rating	Class 1 Division 2 Hazardous Location Rated	Certified for use in potentially hazardous industrial zones.
Physical	Compact PCB design	Dimensions are approximately $2 \text{ cm} \times 24.8 \text{ cm} \times 24.3 \text{ cm}$ (varies slightly by source).

✨ Product Advantages (Key Strengths)

High Performance and Real-Time Stability: Utilizes high-speed processing for quick execution of motion control tasks, ensuring the stability and real-time responsiveness required for precision industrial control.
Flexible I/O Connectivity: Supports multiple input/output interfaces, allowing it to connect to a broad range of sensors and actuators to achieve complex control logic.
Network Integration: Support for standard industrial communication protocols like Ethernet and RS-485 allows for seamless integration into larger Distributed Control Systems (DCS) or PLC networks.
Robustness for Harsh Environments: Rated for hazardous locations (e.g., Class 1 Division 2), making it highly reliable in demanding and difficult industrial settings with varying temperatures.
Core Drive Functionality: As the main control board for the ACS800 series, it provides the core functionality for motor control, speed regulation, and system monitoring within high-performance AC drives.

⚠️ Cautions and Considerations

System Dependence: The DSMB-02C is a specific component for the ACS800 drive family. It is not a standalone controller and must be used within the compatible ABB drive frame and system architecture.
Replacement/Repair: When replacing the board, ensure the revision number is compatible with the existing drive system to avoid functional issues.
Professional Handling: Installation, configuration, and maintenance of this component should only be performed by qualified and certified technical personnel who are familiar with industrial drive systems and hazardous location procedures.
Programming and Configuration: Proper operation requires the correct programming and configuration within the ABB drive environment (e.g., using DriveWindow software or the control panel).
