ABB HBSO1-FPN Mounting Base

ABB HBSO1-FPN Overview

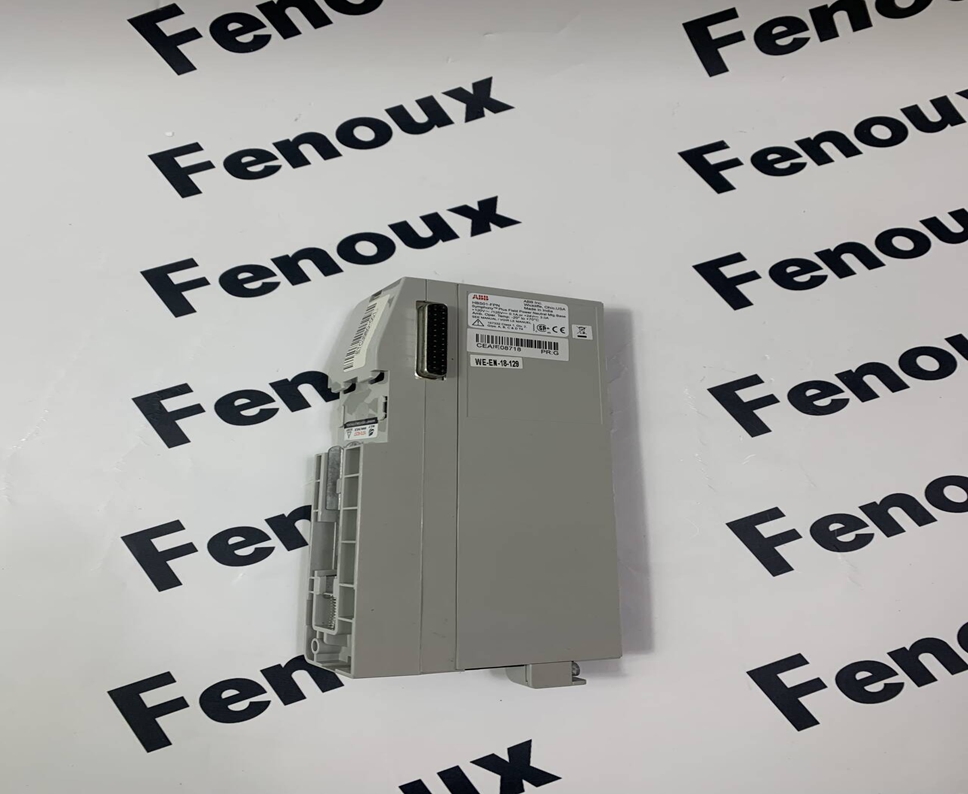

The ABB HBSO1-FPN is a mounting base for ABB's Singular Digital I/O (DI01, DI02, DI03, DI04, DO01, DO02, DO05) modules. It is designed to accommodate field signals.

Product Detailed Description

• Function:

• Provides termination for up to 16 Analog or Digital I/O process signals.

• Allows for termination of process signals within a horizontal row.

• All SD I/O modules and bases of all types (Singular or Redundant) AND (Compact or Full-size) are 100% fully compatible.

• Thus, Singular & Redundant, Compact or Full-size I/O modules can be mounted within a single, common HN800 I/O bus.

• Optional mechanical keying can be implemented to prevent insertion of the wrong I/O module type.

• Latching device on the base locks the base into position on DIN-Rail.

• Industry standard 35-mm DIN rail, Horizontal row mounting.

• Features:

• Full-size (190 mm Tall x 45 mm Wide).

• 16-CH DIO.

• 2x pluggable 16-pt Terminal Blocks.

Product Parameters

• Mounting:

• Horizontal Row.

• DIN-Rail.

• I/O Bus:

• HN800 I/O Bus.

• Channels:

•


16.


• Supported IO modules:

• DI01, DI02, DI03, DI04, DO01, DO02, DO05, PI01.

• Environment and certification:

• Temperature, Operating. -40 to +70 °C.

• Temperature, Storage. -40 to +85 °C.

• Other:

• Field power fusing. 5.0 A, entire base.

• Signal connection. 2x pluggable 16-pt Terminal Blocks.

• Max current. 250mA.

• Acceptable field signal wire sizes. #22 -14 AWG stranded or solid, #12 AWG stranded.

• Galvanic isolation test voltage. 1500 V for up to 1 minute.

• For detailed parameters, please refer to the official ABB product manual.

Product Advantages

• Compatibility:

• Fully compatible with ABB's SD series I/O modules.

• Flexibility:

• Allows mixing and matching of Singular and Redundant, Compact and Full-size I/O modules on a single bus.

• Reliability:

• Rugged industrial design.

• Installation convenience:

• DIN rail mounting, and plugable terminal blocks.

Precautions

• Correct Installation:

• Follow ABB's installation guidelines.

• Environmental Conditions:

• Ensure the operating environment meets the product's specifications.

• Cable Connections:

• Ensure correct field signal wire sizes.

• Fuses:

• Note the field power fusing specifications.

Product Applications

• Industrial Automation:

• Used in ABB's industrial control systems.

• Process Control:

• Suitable for various industrial processes requiring reliable I/O termination.
