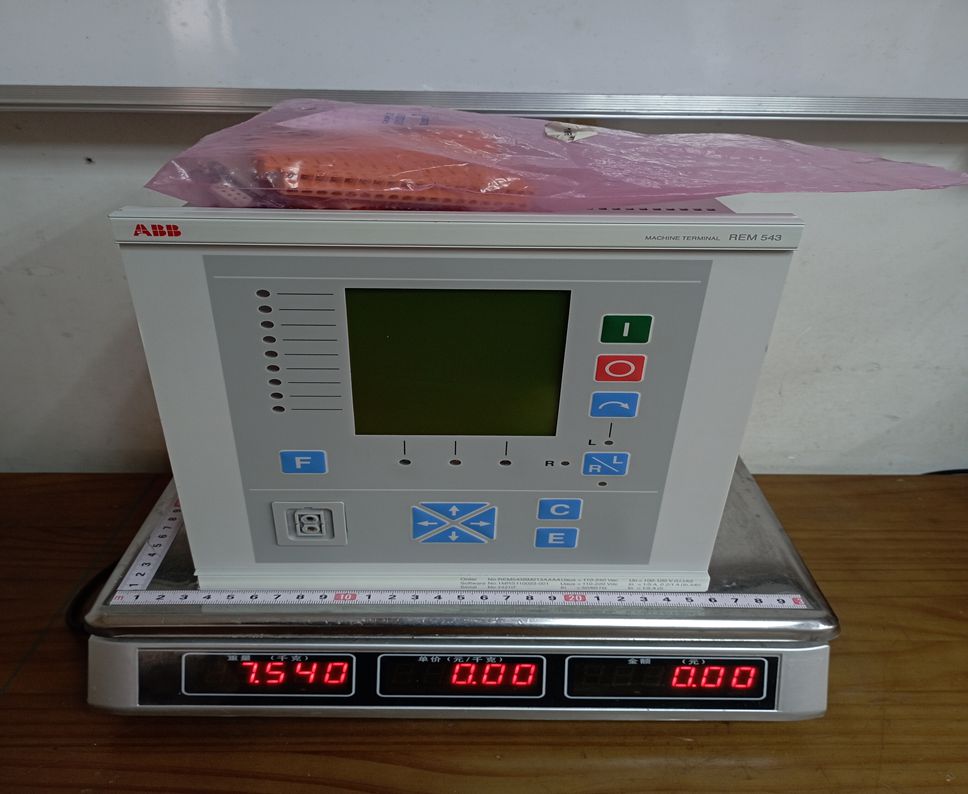

ABB REM543 Microprocessor-based protective relay

The REM543 belongs to ABB's $500$ series protection relay family. It is an all-in-one terminal that combines comprehensive protection, monitoring, control, and communication functions for medium-voltage synchronous and asynchronous machines.

• Integrated Functions: It serves as the primary protection and control unit for the machine, consolidating multiple functions that would traditionally require separate devices (e.g., overcurrent relay, differential relay, voltage relay, control switches).

• Modularity: The REM543 is a modular system, allowing users to select the necessary hardware and software protection functions to match the specific requirements of the motor or generator application.

• Protection: It offers a wide range of protection functions to guard the machine against internal and external faults, including thermal overload, short circuits, earth faults, phase unbalance, and under/over-voltage/frequency.

⚙️ Product Specifications (Key Parameters)

The specific parameters depend on the configuration, but the core capabilities include:

✨ Product Advantages (REM543)

• Comprehensive Protection: Provides the full spectrum of protection needed for motors and generators in a single unit, ensuring maximum asset longevity and operational safety.

• Integration and Cost Savings: Combining protection, control, metering, and monitoring significantly reduces the required panel space, wiring complexity, and overall system cost compared to using discrete relays.

• Advanced Monitoring: Includes detailed measurement and reporting capabilities (power, power factor, frequency, thermal state) and a disturbance recorder to help engineers analyze faults quickly.

• Application Flexibility: Highly flexible and customizable with parameter settings and logic programming capabilities (using $\text{IEC 61131-3}$ compliant tools) to tailor the unit to unique machine characteristics and system requirements.

• User Interface (HMI): Features a local Human-Machine Interface for easy viewing of measurements, status, and event logs, simplifying local operation and maintenance.

⚠️ Cautions and Considerations

1. Complexity and Setup: Due to its integrated nature, the initial configuration and parameter setting of the REM543 are complex and require specialized knowledge in protection engineering to ensure proper machine protection.

2. Firmware Updates: Like any advanced electronic device, keeping the firmware updated is crucial for maintaining security, compatibility, and accessing the latest features.

3. Communication Configuration: Integrating the relay into a Substation Automation System (SAS) requires careful configuration of the communication protocols (e.g., address mapping, data mapping).

4. CT/VT Requirements: The accuracy and class of the external Current Transformers (CTs) and Voltage Transformers (VTs) must meet the relay's input requirements for the protection functions to operate correctly.
