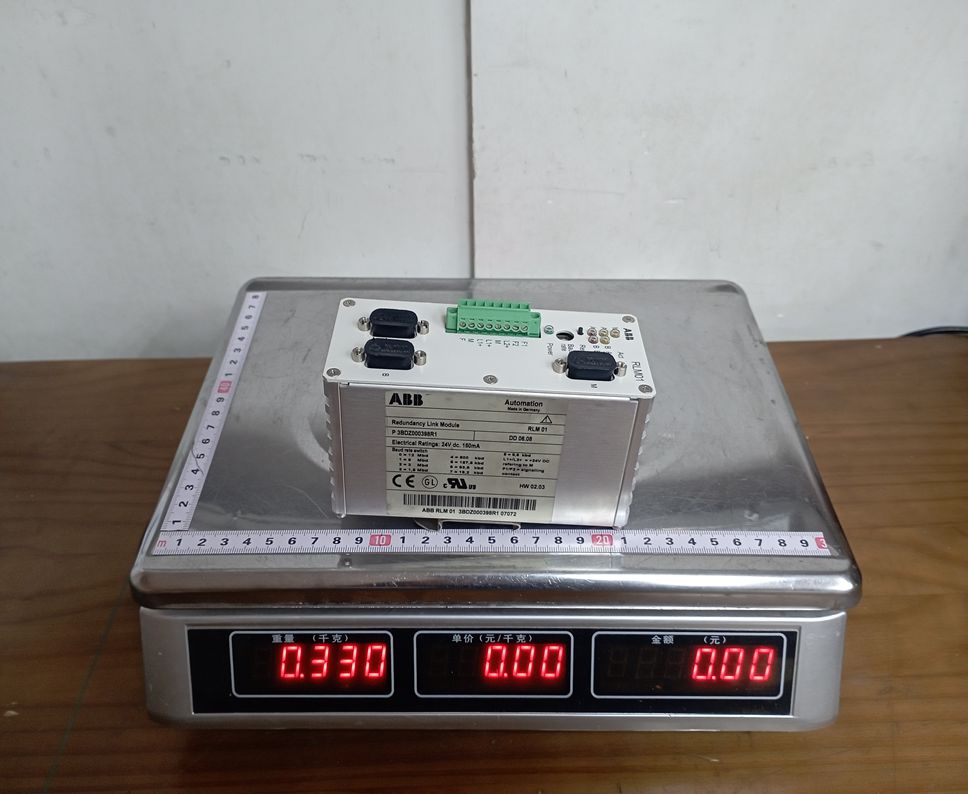

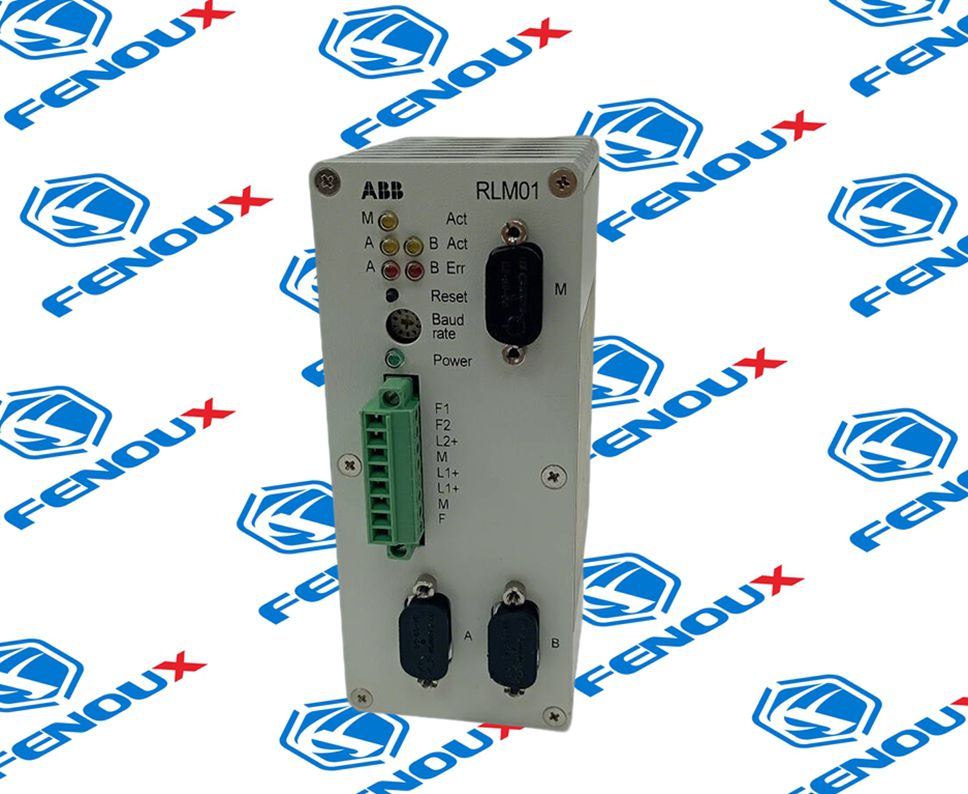

ABB RLM01 3BDZ000398R1 Redundancy Link Module

1. Product Detailed Description

The RLM01 acts as a "bridge" or "repeater" that converts a single PROFIBUS line (Line M) into two reciprocally redundant lines (Line A and Line B).

• Bidirectional Operation: It can receive data from any of the three ports (A, B, or M) and transmit it to the others.

• Transparency: It is completely transparent to the PROFIBUS protocol; it does not require a slave address and does not interfere with the bus configuration.

• Signal Conditioning: The module regenerates the signal's shape and amplitude, functioning effectively as a repeater to maintain signal integrity across segments.

2. Product Parameters (Specifications)

3. Product Advantages

• Increased System Availability: Provides seamless switching between redundant lines if one line is damaged or disconnected.

• Redundant Power Supply: Supports two independent 24 VDC inputs. If one power source fails, the module continues to operate without interruption.

• Advanced Diagnostics: * LED Indicators: Front-panel LEDs signal errors on specific lines (A, B, or M) and power status.

• Alarm Contact: A potential-free relay contact opens in case of an error, allowing the PLC or DCS to trigger a system alert.

• Marine Certified: Certified by Germanischer Lloyd (GL), making it suitable for demanding offshore and ship automation environments.

• No Software Configuration: Plug-and-play installation; no programming or address settings required.

4. Cautions & Precautions

• Termination Resistors: If a port (A, B, or M) is at the beginning or end of a bus segment, it must be equipped with a bus terminator. Use PROFIBUS connectors with built-in, switchable resistors.

• Power Protection: According to UL/CSA requirements, external protection (fuse) is required. The fuse rating should be between 1.6A and 10A (medium or slow-acting).

• Environment: Ensure the module is mounted on a 35 mm DIN rail in an environment with non-condensing humidity (max 75%).

• Wiring: Use flexible wire strands (0.14 to 1.5 $mm^2$) for the 8-pin terminal strip to reduce mechanical stress on the connector.

5. Product Applications

The RLM01 is widely used in critical industrial sectors where communication downtime can lead to significant safety risks or financial loss:

• Oil & Gas: Offshore platforms and pipeline monitoring systems.

• Power Generation: Redundant communication in turbine control and plant-wide DCS.

• Maritime & Shipping: Ship automation systems and engine room controls.

• Process Industry: Chemical plants and refineries using ABB 800xA or Freelance systems.

• Manufacturing: Connecting single-interface remote I/O (like S900) to redundant masters.
