Brand： ABB
Model number：RCAN-01
Colour：new
Warranty: 12 months
Lead Time：3-day working day
Country of origin: USA Price: Please contact us
Product weight：0.21kg
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Description:
Installation problems
Verify all the connections on the module:
ï Check that the ControlNet cables are connected to the BNC
connectors as described in chapter Electrical installation.

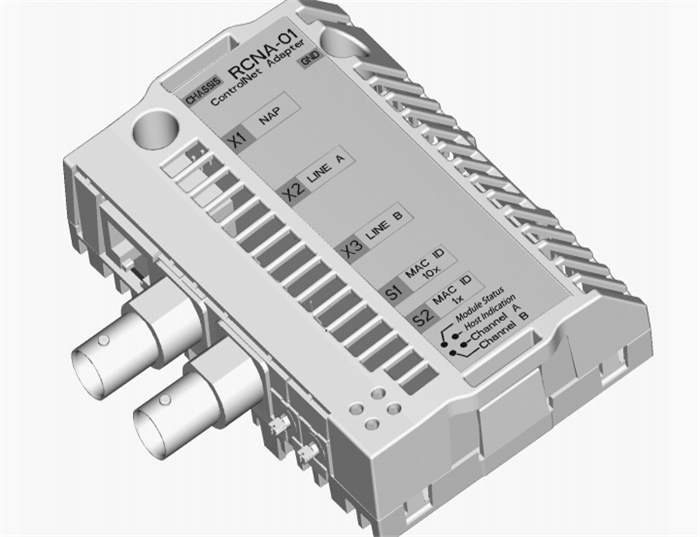

ï Check that the RCNA-01 module is properly inserted into the
option slot.
ï Check the fastening of the RCNA-01 module with the 2 screws.
Drive setup
The fieldbus parameter group is not shown on the panel:
ï Enable the RCNA-01 by setting the appropriate drive
parameter.
The RCNA-01 is using default values:
ï Verify that the fieldbus parameter group is set up correctly. If so,
turn off and on the power to the drive or issue a ëFieldbus
Adapter parameter refreshí command. This will make the
module re-read its setup parameters.
Drive actual values can be read, but the control commands (start/
stop or reference) do not go through:
ï Check that the control location parameters of the drive are set to
use the RCNA-01 as the source of the required command.
ï Check that the drive is in REMOTE control.
PLC programming
The PLC program is beyond ABB Drives support. Contact the
manufacturer for assistance.
Scanner fault indications
Refer to scanner documentation.
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
