Inputs on analog channels employ digital high-frequency filters that significantly reduce the
effects of electrical noise on input signals. However, because of the variety of applications and
environments where analog controllers are installed and operated, it is impossible to ensure
that all environmental noise will be removed by the input filters.

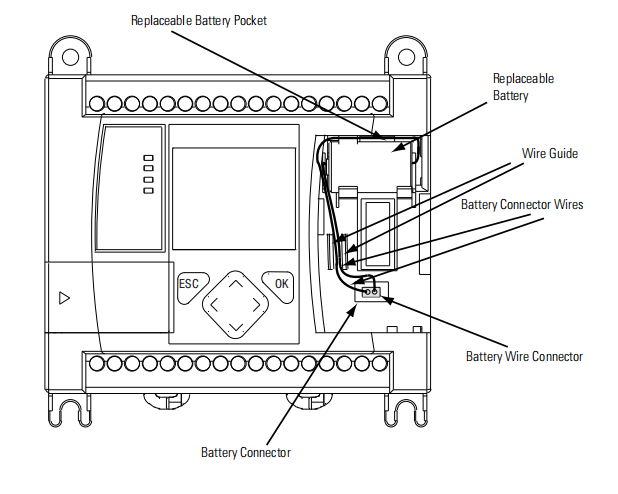

General Specifications
Description 1763-
L16AWA L16BWA L16BBB L16DWD
Dimensions Height: 90 mm (3.5 in.), 104 mm (4.09 in.) (with DIN latch open)
Width: 110 mm (4.33 in.), Depth: 87 mm (3.43 in.)
Shipping Weight 0.9 kg (2.0 lbs)
Number of I/O 12 inputs (10 digital and 2 analog) and 6 outputs
Power Supply
Voltage
100...240V ac (-15%, +10%) at 47...63 Hz 24V dc (-15%,
+10%) Class 2 SELV
12V to 24V dc
( -15%, +10%)
Class 2 SELV
Heat Dissipation Refer to the MicroLogix 1100 Programmable Controllers User Manual, Publication
1763-UM001.
Power Supply
Inrush Current
120V ac: 25 A for 8 ms
240V ac: 40 A for 4 ms
24V dc:
15 A for 20 ms
Power
Consumption
46 VA 52 VA 35W
24V dc Sensor
Power
none 250 mA at 24V DC
400 µF max.
none
Input Circuit Type Digital: 120V ac
Analog: 0...10V dc
Digital: 24V dc
sink/source
(standard and
high-speed)
Analog: 0...10V dc
Digital: 24V dc
sink/source
(standard and
high-speed)
Analog: 0...10V dc
Digital: 12/24V dc
sink/source
(standard and
high-speed)
Analog: 0...10V dc
Output Circuit
Type
Relay Relay Relay/FET Relay
Pilot Duty Rating Ordinary location – B300, R150
Hazardous location – C300, R150
Temperature,
Operating
-20... +65 °C (-4 ...+149 °F)
Temperature,
Storage
-40...+85 °C (-40... +185 °F)
Relative Humidity 5...95% non-condensing
Vibration Operating: 10... 500 Hz, 5 g, 0.015 in. max. peak-to-peak, 2 hours each axis
Relay Operation: 1.5 g
Shock, Operating 30 g; 3 pulses each direction, each axis
Relay Operation: 10 g
