Brand： Allen Bradley

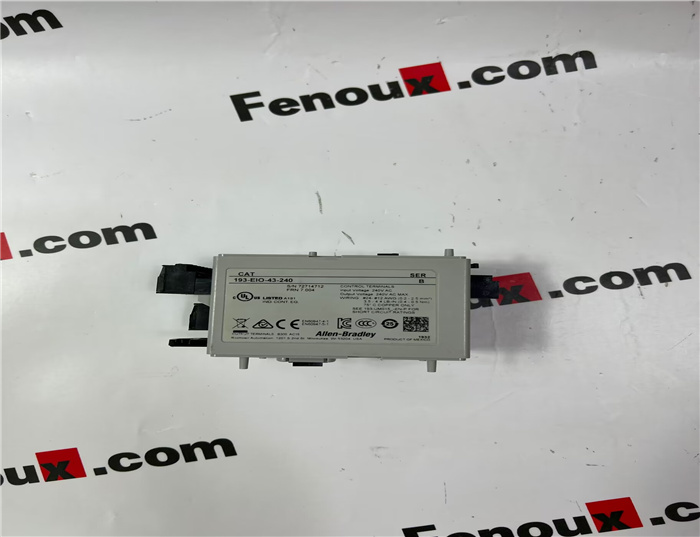

Model number：193-EIO-43-240
Colour：new
Warranty: 12 months
Lead Time：3-day working day
Country of origin: USA Price: Please contact us
Product weight：0.28kg
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Description:
Power Requirements
Input / Output Ratings
R23 R24
RELAY 1 RELAY 2
IN2 IN3 R13 R14
Additional Inputs for 193-EIO-63-24D
IN0 IN1
A1 A1 A2 PE
A1 R03 R04 A2
IN4 IN5
(+) (-)
RELAY 0
S1 S2
RELAY 1
IN2 IN3 R13 R14
IN0 IN1
A1 A1 A2
A1 R03 R04 A2
IT1 IT2
(+) (-)
RELAY 0
193-EIO-_ _-_ _ _ 193-EIOGP-_ _-_ _ _
PE
Ground
PTC Fault
Additional Inputs for 193-EIOGP-42-24D
Nominal Supply Voltage (Us)
193-EIO-22-24D, 193-EIO-63-24D, 193-EIOGP-42-24D
193-EIO-22-120, 193-EIO-43-120, 193-EIOGP-22-120
193-EIO-22-240, 193-EIO-43-240, 193-EIOGP-22-240
24V DC
Operating Range 11 - 30V DC
Rated Supply Current 725mA @ 11V DC derated to 267mA @ 30V DC
Maximum Surge Current at Power-Up 6A for 1.25ms
Maximum Power Consumption 6W
Maximum Power Interruption Time @ 25 V DC 10ms at all environmental conditions
Rated Supply Voltage (Us) 120V AC
Operating Range 85 - 132V AC
Rated Supply Current 118mA @ 85V AC derated to 65mA @ 132V AC
Maximum Surge Current at Power-Up 5.2A for 1.00ms
Maximum Power Consumption
6W
Maximum Power Interruption Time @ 120V AC 10ms at all environmental conditions
Rated Supply Voltage (Us) 240V AC
Operating Range 184 - 265V AC
Rated Supply Current 58mA @ 172V AC derated to 33mA @ 310V AC
Maximum Surge Current at Power-Up 5.8A for 1.25ms
Maximum Power Consumption 6W
Maximum Power Interruption Time @ 240V AC
10ms at all environmental conditions
Rated Operating
Current (Ie)
Cat No
Outputs
5A @ 250V AC
0.25A @ 220V DC
5A @ 250V AC
5A @ 5-30V DC
2A @ 250V AC
2A @ 5-30V DC
Output Current
Rating
Resistive (P.F. = 1.0) Inductive
Cat No
Inputs
193-EIO-22-24D
193-EIO-63-24D
193-EIOGP-42-24D
193-EIO-22-120
193-EIO-43-120
193-EIOGP-22-120
ALL
11 - 30V DC
74 - 132V AC
193-EIO-22-240
193-EIO-43-240
193-EIOGP-22-240
159 - 265V AC
