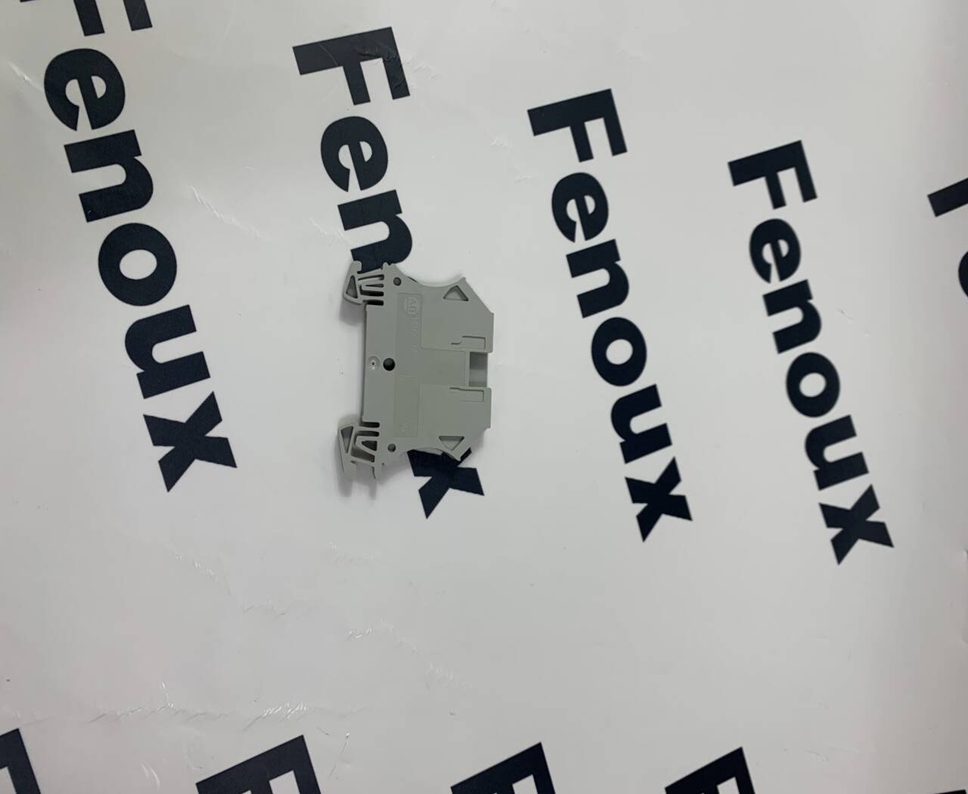

A-B 1492-J4 Screw Connection Terminal Blocks

Product Description

The Allen-Bradley 1492-J4 is a versatile feed-through terminal block designed for various electrical applications. It is part of Rockwell Automation's extensive line of industrial automation components, renowned for their

reliability and durability.

Key Features and Specifications

• Conductor Size: Accommodates up to 4mm² (AWG 12) conductors.

• Voltage Rating: Rated for 600V AC/DC, ensuring safe operation in demanding environments.

• Current Rating: Capable of handling up to 35A, providing ample capacity for most industrial applications.

• Mounting: Designed for easy panel mounting, saving installation time.

• Material: Constructed from high-quality materials for optimal performance and longevity.

• Color: Gray, providing a neutral aesthetic that blends well with most industrial settings.

Product Advantages

• Reliability: Engineered to withstand harsh industrial conditions, including vibration, shock, and temperature extremes.

• Versatility: Suitable for a wide range of applications, including power distribution, control circuits, and instrumentation.

• Safety: Complies with industry standards for electrical safety, ensuring a safe working environment.

• Ease of Use: Simple and intuitive design for quick and efficient installation.

• Durability: Built to last, offering a long service life with minimal maintenance.

Precautions

• Proper Torque: Ensure that the terminal screws are tightened to the specified torque to prevent loose connections and potential hazards.

• Conductor Stripping: Strip conductors to the correct length to avoid damage to the terminal block or short circuits.

• Environmental Conditions: Avoid exposing the terminal block to excessive moisture, corrosive substances, or extreme temperatures.

• Qualified Personnel: Installation and maintenance should be performed by qualified electricians familiar with electrical safety practices.

Applications

The Allen-Bradley 1492-J4 is widely used in various industries, including:

• Automation: Connecting control devices, sensors, and actuators in automated systems.

• Power Distribution: Distributing electrical power within control panels and enclosures.

• Machine Building: Integrating electrical components into custom machinery.

• Process Control: Monitoring and controlling industrial processes.
