Allen-Bradley 1794-TB3

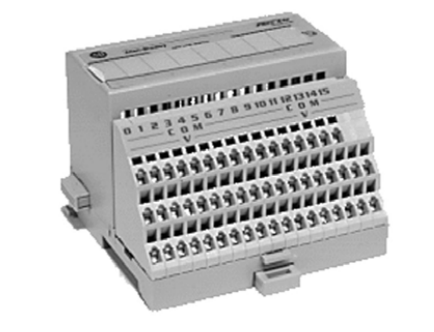

Allen-Bradley 1794-TB3 Terminal Base

Brand:ALLEN BRADLEY

Model number:1794-TB3

Warranty: 12 months

Lead Time:3-day working day

Country of origin: USA Price: Please contact us

Product weight:2kg

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Allen-Bradley 1794-TB3 Terminal Base

INQUIRE NOW

Products Name: Allen-Bradley 1794-TB3

PRODUCT DESCRIPTION

Each FLEX I/O™ module requires a terminal base unit that

snaps onto the DIN rail to the right of the I/O adapter. The

terminal bases provide terminal connection points for I/O

wiring and plug together to form the backplane. They are

available with cage, screw or spring - clamp terminations.

Each FLEX I/O module has optional accessories available

depending on the I/O module, field system set-up and

requirements.

Allen-Bradley 1794-TB3

Description:

Catalog Termination

type

Connections Used in applications Current

capacity,

max

Wiring

category

Purpose

1794-TB2 Cage clamp 16 I/O;

18 common terminals;

2 +V terminals

Up to 125V AC/DC 10 A 2 A generic 2-wire version of the 1794-TB3.

1794-TB3

1794-TB3K(1)

(1) The letter K in the last position of the catalog number, before the series designation, indicates a conformal coated versions of standard modules and can be used with extended temperature modules

(modules ending in -XT)

16 I/O;

18 common terminals;

18 +V terminals

2,3 or 4 Primarily intended for use with input modules when

using 3-wire input proximity switches – can also be

used with output modules.

1794-TB3S

1794-TB3SK

Spring clamp A spring clamp version of the 1794-TB3 – provides

faster, simpler wire installation.

1794-TB32 Cage clamp 32 I/O;

8 common terminals;

8 +V terminals

Up to 31.2V DC A 32-point version of the 1794-TB3 to be used with

32-point digital modules and the 1794-IB16D module.

1794-TB32S Spring clamp A spring clamp version of the 1794-TB32.

1794-TB3G

1794-TB3GK

Grounded screw

clamp

36 I/O;

2 common terminals;

2 +V terminals;

10 chassis ground terminals

A screw clamp terminal base unit with individual

grounding used with certain analog modules.

1794-TB3GS

1794-TB3GSK

Grounded spring

clamp

A spring clamp version of the 1794-TB3G.

1794-TB3T

1794-TB3TK

Cage clamp,

temperature

16 I/O;

10 common terminals;

4 +V terminals;

8 chassis ground terminals;

2 sets (6 terminals)of CJC for

temperature modules

Up to 125V AC/DC A cage clamp terminal base to be used with the

1794-IT8. It also provides chassis ground connections

for 1794-IR8 (RTD module) and analog modules.

1794-TB3TS

1794-TB3TSK

Spring clamp,

temperature

A spring clamp version of the 1794-TB3T.


Shipping Port: Xiamen, China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service
