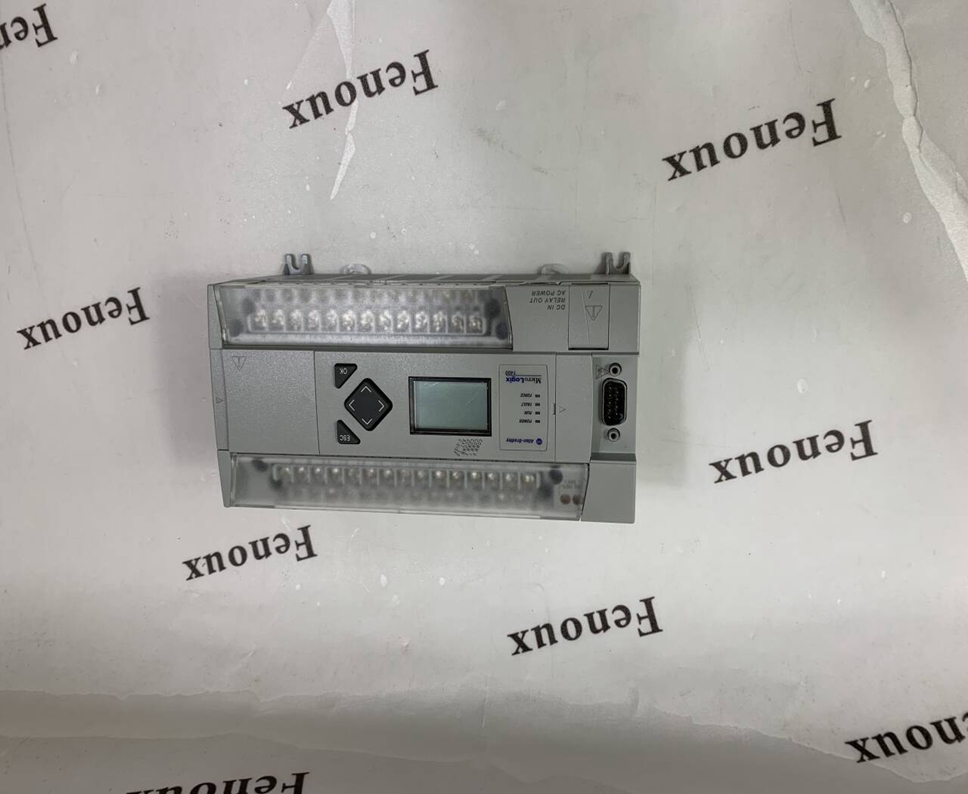

A-B 1766-MM1 Central control module

A-B Adapters Overview

A-B adapters are a crucial part of the Rockwell Automation product line, used to connect and interface different automation components, networks, and devices. Depending on the specific type, they can perform functions such as data conversion, protocol conversion, network expansion, or device connectivity. Due to the wide variety of A-B adapters, the following will provide information on some common types and their general information.

Examples of Common Types of A-B Adapters:

• Communication Adapters: For example, EtherNet/IP adapters, ControlNet adapters, DeviceNet adapters, etc., used to connect devices to different industrial networks.

• Interface Adapters: For example, adapters used to connect different types of I/O modules, or interface converters for connecting specific devices.

• Power Adapters: Although not always referred to as "adapters," some modules may require specific power adapters for power supply.

• Mounting Adapters: Used to mount modules of different sizes or types onto standard DIN rails or other mounting surfaces.

Product Detailed Description

Since the functions of A-B adapters vary greatly, the following description focuses on Communication Adapters as an example:

• Function:

• Establishes communication links between automation devices and industrial networks.

• Handles network protocols to enable data exchange.

• Provides network interfaces, such as RJ45 ports, BNC connectors, etc.

• Some advanced communication adapters may support network diagnostics and configuration features.

• Features:

• Supports specific industrial network protocols (e.g., EtherNet/IP, ControlNet, DeviceNet).

• Rugged industrial design suitable for harsh environments.

• Easy to install and configure.

• Provides indicator lights or other status displays for easy troubleshooting.

Product Parameters

Due to the wide variety of A-B adapters, parameters vary significantly. The following provides general parameters for Communication Adapters as an example. Always refer to the official datasheet for the specific model:

• Supported Network Protocols:

• E.g., EtherNet/IP, ControlNet, DeviceNet, PROFIBUS DP, Modbus TCP/IP, etc.

• Interface Type:

• E.g., RJ45 (Ethernet), BNC (ControlNet), 5-pin Open Style (DeviceNet), 9-pin D-sub (Serial), etc.

• Power Requirements:

• E.g., 24V DC.

• Operating Temperature:

• E.g., -25 °C to +70 °C.

• Degree of Protection (IP):

• E.g., IP20, IP67.

• Mounting Method:

• E.g., DIN rail mounting, panel mounting.

• Dimensions and Weight:

• Varies depending on the specific model.

• Certifications:

• E.g., CE, UL, cUL.

Product Advantages

• Enables Device Connectivity:

• Allows different types of automation devices to connect to various industrial networks.

• Expands Network Functionality:

• Some adapters can extend the range of the network or add network nodes.

• Improves System Integration:

• Simplifies communication and data exchange between different components.

• High Reliability:

• Industrial-grade design ensures stable operation in harsh environments.

• Easy to Use:

• Typically features a simple installation and configuration process.

Precautions

• Correct Selection:

• Choose a compatible adapter model based on the devices to be connected and the target network.

• Correct Installation:

• Follow Rockwell Automation's installation guidelines, ensuring the adapter is securely mounted and wired correctly.

• Power Requirements:

• Ensure the provided power supply meets the adapter's specifications.

• Environmental Conditions:

• Ensure the operating environment temperature and humidity are within the permissible range.

• Network Configuration:

• Configure the adapter's network parameters correctly, such as IP address, node address, etc.

• Firmware Updates:

• Regularly check for and update the adapter's firmware for optimal performance and security.

Product Applications

A-B adapters are widely used in various industrial automation fields, such as:

• Connecting I/O Modules to Controllers:

• E.g., using EtherNet/IP adapters to connect remote I/O to Logix controllers.

• Connecting Drives to Networks:

• E.g., using EtherNet/IP or DeviceNet adapters to control variable frequency drives.

• Connecting Sensors and Actuators:

• E.g., using DeviceNet adapters to connect field devices.

• Enabling Communication Between Different Networks:

• E.g., using communication bridges to transfer data between ControlNet and EtherNet/IP networks.

• Connecting Third-Party Devices:

• Some adapters allow the connection of third-party devices that comply with specific protocols.
