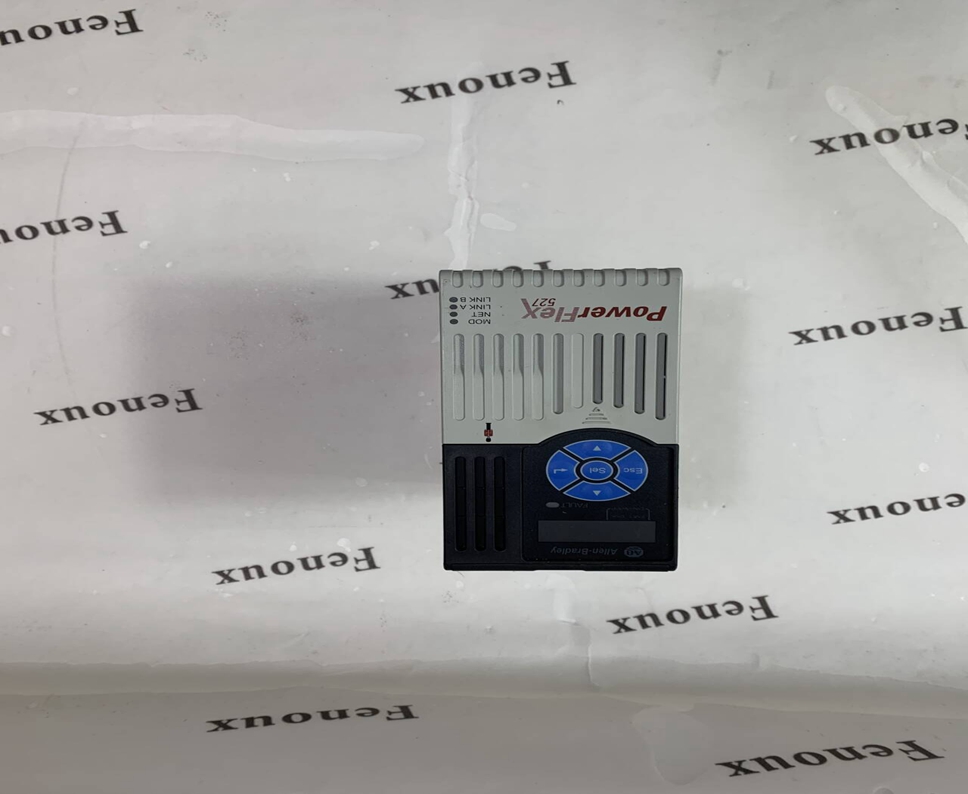

A-B 22A-D4P0F104 Central control module

A-B (Allen-Bradley) AC Drives Overview

A-B (Allen-Bradley), a well-known brand under Rockwell Automation, offers a wide range of AC drives designed for precise control of motor speed and torque, thereby improving energy efficiency, optimizing process control, and reducing mechanical stress. A-B AC drives are suitable for various industrial applications, from simple speed control to complex motion control.

Product Detailed Description

• Function:

• Controls the speed and torque of three-phase AC induction motors.

• Regulates motor speed by varying the voltage and frequency applied to the motor.

• Provides control for motor starting, stopping, acceleration, and deceleration.

• Many models offer advanced features such as PID control, braking control, positioning control, and safety functions.

• Supports various control modes such as scalar control (V/f), sensorless vector control (SVC), and flux vector control (FVC).

• Features protection functions such as overcurrent, overvoltage, undervoltage, overload, and overtemperature protection.

• Features:

• Wide range of power ratings and voltage classes to suit different motors and application requirements.

• Modular design for easy installation, commissioning, and maintenance (in some series).

• User-friendly interface and programming tools (e.g., Connected Components Workbench, Studio 5000 Logix Designer).

• Powerful communication capabilities, supporting various industrial protocols (e.g., EtherNet/IP, Modbus TCP/IP, PROFIBUS DP).

• High reliability, suitable for harsh industrial environments.

• Significant energy-saving effects, reducing energy consumption and operating costs.

• Integrated safety functions (in some series), such as Safe Torque-Off (STO).

Product Parameters

As A-B offers a wide variety of AC drives, the following are some general parameters. Always refer to the official datasheet for the specific model:

• Power Range:

• From a few watts to hundreds of kilowatts or even megawatts (depending on the series).

• Voltage Classes:

• Low voltage (e.g., 100-120V AC, 200-240V AC, 380-480V AC, 500-600V AC, 690V AC).

• Medium voltage (e.g., 2.3 kV, 3.3 kV, 4.16 kV, 6.6 kV, 11 kV AC).

• Control Modes:

• Scalar control (V/f).

• Sensorless vector control (SVC).

• Closed-loop vector control (FVC).

• Input Frequency:

• 50/60 Hz.

• Output Frequency:

• Typically 0 to hundreds of Hertz.

• Degree of Protection (IP):

• E.g., IP20, IP30, IP66.

• Ambient Temperature:

• Operating temperature range typically from -10 °C to +50 °C (varies by model).

• Communication Interfaces:

• EtherNet/IP.

• Modbus TCP/IP.

• PROFIBUS DP.

• DeviceNet.

• RS-485 (Modbus RTU).

• Safety Functions:

• Safe Torque-Off (STO).

• Safe Speed Monitor (SSM) (in some series).

• Safe Stop 1 (SS1) (in some series).

• Braking Methods:

• Braking resistor control (built-in or external).

• Regenerative braking (in some series).

Product Advantages

• High Reliability:

• Robust design and high-quality components ensure reliable operation in industrial environments.

• Precise Control:

• Advanced control algorithms provide accurate speed and torque control.

• Easy Integration:

• Seamless integration with other Rockwell Automation products (e.g., PLCs).

• Supports various industrial communication protocols.

• User-Friendly:

• Easy-to-use and configure programming software and HMI options.

• Improved Energy Efficiency:

• Reduces energy consumption and costs by optimizing motor operation.

• Extended Equipment Lifespan:

• Reduces mechanical stress, extending the lifespan of motors and related equipment.

• Enhanced Safety:

• Integrated safety functions improve the safety of operators and equipment.

• Global Support:

• Rockwell Automation provides extensive technical support and services worldwide.

Precautions

• Correct Selection:

• Choose the appropriate drive model based on motor power, load characteristics, application requirements, and environmental conditions.

• Correct Installation:

• Follow Rockwell Automation's installation guidelines, ensuring the drive is installed in a well-ventilated area with suitable ambient temperature and humidity.

• Correct Wiring:

• Connect the power supply, motor, and control signal lines correctly according to the wiring diagram, ensuring proper grounding.

• Parameter Settings:

• Set the drive parameters correctly according to the specific motor and application requirements (using Connected Components Workbench or Studio 5000 Logix Designer).

• EMC Considerations:

• Take necessary electromagnetic compatibility (EMC) measures to reduce electromagnetic interference.

• Safe Operation:

• Always follow relevant safety procedures when operating and maintaining the drive.

• Regular Maintenance:

• Regularly inspect the drive's operating status, cooling system, and wiring, and perform necessary maintenance.

Product Applications

A-B AC drives are widely used in various industrial sectors, including but not limited to:

• Pumps and Fans:

• Flow and pressure control, energy-saving operation.

• Conveyors and Material Handling:

• Speed control, synchronization control.

• Compressors:

• Pressure and flow control, energy-saving operation.

• Extruders and Mixers:

• Speed and torque control.

• Cranes and Hoists:

• Precise motion control and safety functions.

• Machine Tools:

• Spindle drive and feed drive control.

• Packaging Machinery:

• Speed synchronization and tension control.

• HVAC (Heating, Ventilation, and Air Conditioning):

• Energy-efficient control of fans and pumps.

• Water and Wastewater Treatment:

• Pump control and process optimization.

• Renewable Energy:

• Wind power and solar power systems.
