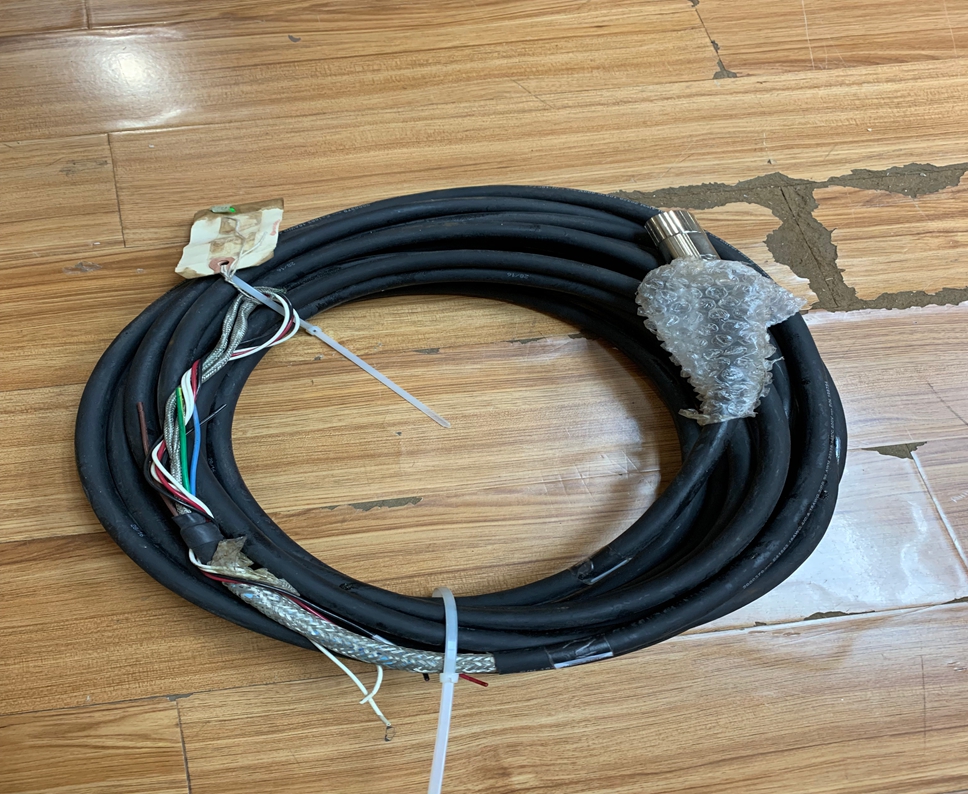

AB 2090-XXNPMF-16515 Driver motor power cable

Allen-Bradley (AB) 2090-XXNPMF-16515 Motor Power Cable for Kinetix Drives Overview

The Allen-Bradley 2090-XXNPMF-16515 is a standard motor power cable designed specifically for connecting Allen-Bradley Kinetix servo motors to Kinetix servo drives. These cables are essential components in a complete motion control system, providing the necessary power connection to operate the motor. The "XXNPMF" series indicates a non-flexing (standard) cable designed for applications where continuous cable movement is not required.

Product Detailed Description

• Function: This cable primarily transmits electrical power from the Kinetix servo drive to the Kinetix servo motor. It provides the necessary conductors for the motor phases (U, V, W) and typically includes a ground conductor for safety.

• Application: It is used in fixed installations or applications where the cable is not subjected to frequent or continuous bending/flexing. For applications requiring continuous motion (e.g., on a robot or moving axis), a high-flexing cable from a different 2090 series (e.g., 2090-XXNFMF) would be required.

• Construction:

• Conductor Size: 16 AWG (American Wire Gauge), indicating the size of the individual power conductors.

• Length: 15 meters, providing a standard reach between the drive and the motor.

• Jacket Material: Industrial-grade thermoplastic elastomer, which provides durability, oil resistance, and suitability for industrial environments.

• Connectors: Features specific connectors on both ends that are compatible with Allen-Bradley Kinetix servo drives and motors, ensuring proper and secure connection. These are typically designed for robust industrial use.

• Shielding: Likely includes shielding to reduce electromagnetic interference (EMI) that can affect sensitive control signals in motion control applications.

Product Parameters

• Product Series: Allen-Bradley Kinetix 2090 Cables (specifically the XXNPMF family for standard, non-flexing motor power cables)

• Part Number: 2090-XXNPMF-16515

• Conductor Size: 16 AWG

• Cable Length: 15 meters (m)

• Cable Type: Motor Power Cable (Non-flexing / Standard)

• Drive Compatibility: Designed for use with various Allen-Bradley Kinetix servo drives.

• Motor Compatibility: Designed for use with various Allen-Bradley Kinetix servo motors.

• Jacket Material: Industrial-grade Thermoplastic Elastomer

• Color: Typically Black

• Special Features: Designed for motor power connections.

• Standards/Certifications: Meets relevant industrial standards for safety and performance (specific certifications like UL, CSA would be listed in the full datasheet).

Product Advantages

• Optimized for Kinetix Systems: Specifically engineered and tested to work seamlessly with Allen-Bradley Kinetix servo drives and motors, ensuring optimal performance and compatibility.

• Reliable Power Transmission: Provides a robust and secure electrical connection for reliable power delivery to the motor.

• Industrial Durability: Constructed with high-quality, industrial-grade materials (like thermoplastic elastomer jacket) to withstand harsh factory environments, including exposure to oils and moderate temperatures.

• EMI Reduction: Designed with appropriate shielding to minimize electromagnetic interference, which is crucial for maintaining signal integrity in sensitive motion control applications.

• Simplified Installation: Pre-assembled with compatible connectors, reducing installation time and potential wiring errors compared to custom-made cables.

• Rockwell Automation Support: Backed by Rockwell Automation's global support and service network.

Precautions

• Application Mismatch: This is a non-flexing cable. Do not use it in continuous-flexing or high-motion applications. Using it in such environments will lead to premature cable failure (e.g., conductor breakage, jacket cracking), system downtime, and potential safety hazards. For continuous motion, select a cable from the 2090-XXNFMF (high-flexing) series.

• Cable Length: Ensure the 15-meter length is appropriate for your application, allowing for proper routing without excessive tension or bending.

• Proper Routing: Route cables according to best practices for industrial wiring to avoid sharp bends, crushing, abrasion, or exposure to excessive heat sources.

• Shielding and Grounding: Ensure proper connection of the cable shield to the drive and motor grounds to maximize EMI rejection and ensure safety.

• Connector Integrity: Verify that connectors are fully engaged and secured on both the drive and motor sides to prevent loose connections, arcing, or signal loss.

• Environmental Limits: Adhere to the specified operating temperature and environmental conditions for the cable.

• Safety: Always de-energize the drive and motor before connecting or disconnecting the power cable. Follow all local and national electrical safety codes.

Product Applications

The Allen-Bradley 2090-XXNPMF-16515 motor power cable is typically used in a wide range of industrial automation and motion control applications where Kinetix servo systems are deployed, particularly in fixed or low-motion scenarios:

• General Machine Automation: Connecting servo motors to drives for various machine axes where the motor remains stationary or moves infrequently.

• Material Handling: Used in fixed segments of conveyor systems, automated storage and retrieval systems (AS/RS) where motors are not on continuously moving parts.

• Packaging Machinery: Powering motors in fixed positions within packaging lines, such as those for indexing, sealing, or cutting.

• Assembly Machines: Providing power to servo motors in stationary or limited-motion assembly stations.

• Robotics (Fixed Wiring): Used for power connections within the robot's base or fixed arm sections, where cables do not undergo continuous flexing.

• CNC Machines: For power connections to servo motors on machine tool axes that are not high-flexing.

• Test Stands: Powering motors in test and measurement setups.
