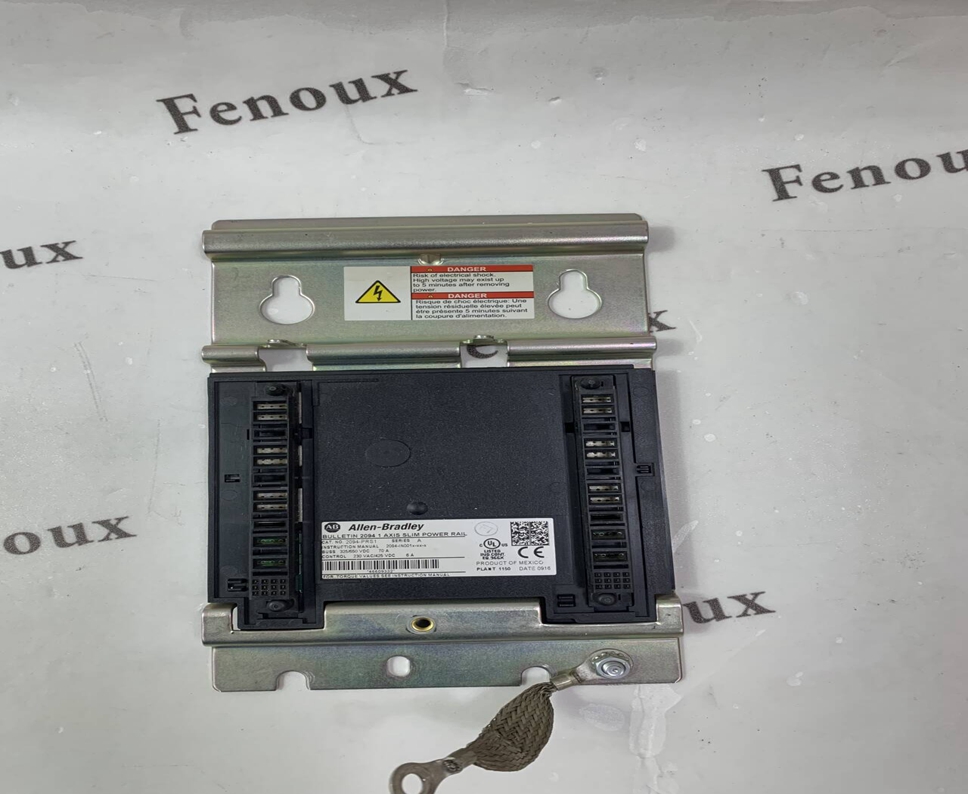

AB 2094-PRS1

The Bulletin 2094 power rail is compatible with Kinetix 6000, Kinetix 6000M, Kinetix 6200, and Kinetix 6500 drive

families. This section contains selection information, mounting dimensions, and catalog numbers for the 2094-PRSx

(slim) power rails. Bulletin 2094 power rails are compatible with all 200V-class and 400V-class drive modules.

Description:

The leftmost slot on each power rail is the converter slot, which is used by only the IAM module. All other slots are inverter

slots and are used by the AM, IPIM, or shunt module (refer to the figure below). The power rail catalog number indicates

the number of available inverter slots.

For example, the 2094-PRS1 power rail contains one inverter slot. This limits the use of this power rail to systems requiring

only one inverter slot. Similarly, the 2094-PRS8 power rail contains eight inverter slots. This limits the use of this power

rail to systems requiring up to eight inverter slots.

When selecting a power rail, determine the number of inverter slots required by all rail-mounted modules and select a

power rail with that minimum number of inverter slots.

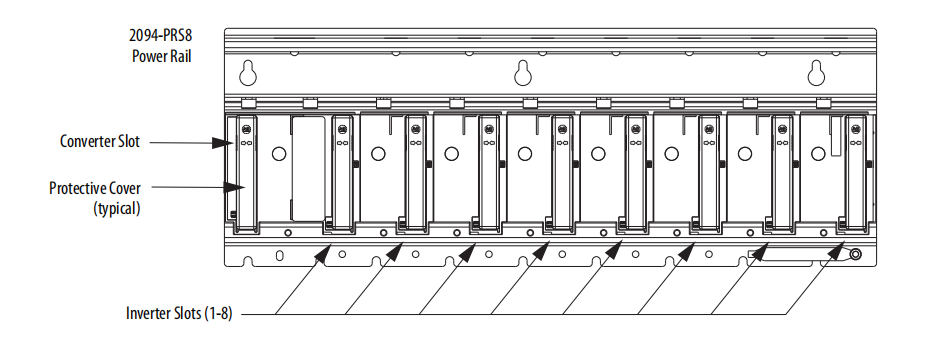

Power Rail Slots

IMPORTANT If you select a power rail with slots exceeding the minimum required for your system, you must install a 2094-PRF slot-filler

module in each unused slot.
