AB 22B-D2P3N104 Frequency Converter

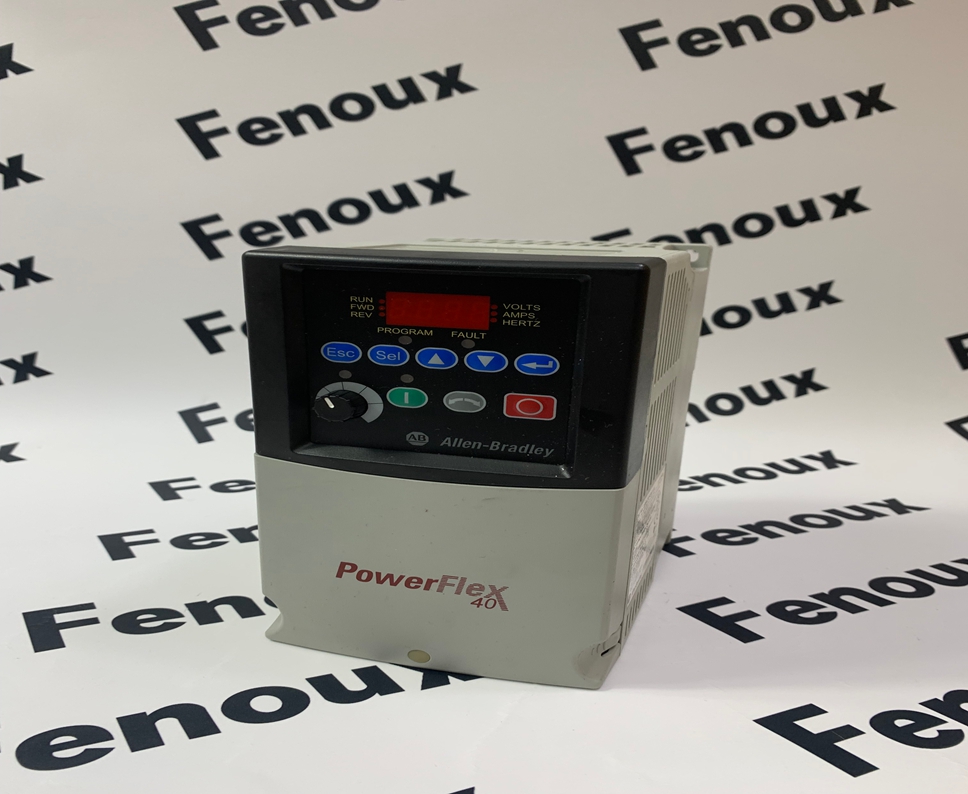

AB Allen-Bradley 22B-D2P3N104 PowerFlex 40 AC Drive Overview

The Allen-Bradley PowerFlex 40 series of AC drives is a cost-effective and easy-to-use drive for controlling three-phase motors in a variety of industrial applications. The model 22B-D2P3N104 specifically refers to a drive rated for 1.5 kW (2 hp) with an input voltage of 380-480V AC.

Product Detailed Description

• Function:

• Controls the speed and direction of three-phase AC motors.

• Provides motor starting, stopping, and protection functions.

• Regulates motor speed by varying the voltage and frequency applied to the motor.

• Can improve energy efficiency and extend motor life.

• Features:

• Compact size for easy installation.

• Simple programming and configuration.

• Integrated PID control.

• Includes overload, overvoltage, undervoltage, and short-circuit protection.

• Supports various control modes (e.g., V/Hz control).

• Offers digital inputs and outputs, as well as analog inputs.

Product Parameters

• Model Number: 22B-D2P3N104

• Power Rating: 1.5 kW (2 hp)

• Input Voltage: 380-480V AC, 3-Phase

• Input Current: 3.3 A

• Output Voltage: 0-Input Voltage, 3-Phase

• Output Current: 3.2 A

• Enclosure Rating: IP20 (Open Type)

• Control Method: Volts per Hertz (V/Hz) Control

• Digital Inputs: 5

• Digital Outputs: 1 Relay Output

• Analog Inputs: 1 (0-10V DC or 4-20mA)

• Overload Capacity: 150% of rated current for 60 seconds

• Operating Temperature: -10 to +50 °C (14 to 122 °F)

• Mounting Style: Surface Mount

• Communication: No built-in communication (optional communication modules available)

• Braking: No built-in braking resistor (external resistor can be connected)

Product Advantages

• Cost-Effective: Provides competitive pricing with reliable performance.

• Easy to Use: Simple installation, wiring, and programming.

• Compact Design: Saves control panel space.

• Integrated PID Control: Suitable for closed-loop process control applications.

• Motor Protection: Offers comprehensive motor protection features.

• Flexibility: Supports various control modes and optional communication modules.

Precautions

• Correct Selection: Choose the appropriate drive model based on motor power rating, voltage, and application requirements.

• Correct Installation: Follow Rockwell Automation's installation guidelines, ensuring proper ventilation.

• Correct Wiring: Connect power, motor, and control signal wires correctly according to the wiring diagrams.

• Parameter Setting: Set the correct drive parameters according to the specific motor and application.

• Overload Protection: While the drive has overload protection, it is still necessary to set the overload protection parameters appropriately based on motor characteristics.

• Grounding: Ensure proper grounding of the drive and motor.

• Environmental Conditions: Avoid using the drive in environments exceeding its operating temperature and humidity ranges.

Product Applications

• Conveyors: Controlling the speed of conveyor belts.

• Fans and Pumps: Adjusting air and liquid flow rates.

• Packaging Machinery: Controlling motor speed in packaging processes.

• Material Handling: Controlling the speed of cranes, hoists, etc.

• Textile Machinery: Controlling yarn speed.

• Other General Industrial Applications: Where variable speed control of three-phase AC motors is required.
