Allen-Bradley 2711-T5A2L1

The PanelView 300 Micro terminal is available only with 24V DC input

power and does not have a printer port. The PV300 Micro terminal

contains a single RS-232 communication port which supports either

DF1 or DH485 communication protocols as specified in the table

below.

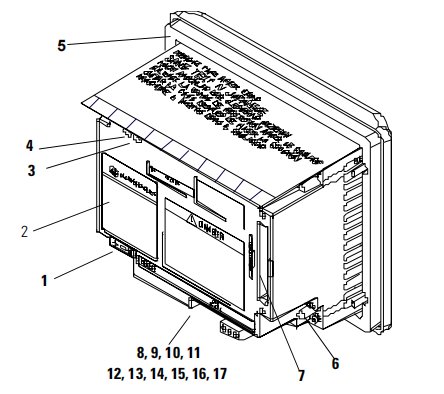

Description:

1 Power Connection Terminals Connects to external power source.

2 Nameplate Label Provides product information.

3 Fault Status (Red) Indicates firmware or hardware faults.

4 COMM Status (Green) Indicates when communication is occurring.

5 Sealing Gasket Seals the front of the terminal to an enclosure or panel.

6 Reset Button Resets the terminal.

7 Memory Card Slot Accepts a memory card which stores applications.

8 DH-485 Communication Port Connects to an SLC or MicroLogix controller, DH-485 network, or Wallmount Power

Supply (Cat. No. 1747-NP1).

9 DH-485 Programming Connector Connects to a Personal Computer Interface Converter (Cat. No. 1747-PIC) for

transferring applications. Also connects to an SLC programmer, such as the

Hand-held Terminal (Cat. No. 1747-PT1).

10 RS-232 (DH-485) Communication Port Connects to the Channel 0 port of an SLC 5/03, 5/04, or 5/05 for point-to-point

DH-485 communication. Connects to a MicroLogix controller through an AIC+ Link

Coupler. Also connects to the RS-232 serial port of a computer for transferring

applications.

11 Remote I/O Port Connects to a scanner or sub-scanner on a remote I/O network.

12 DH+ Communication Port Connects to a PLC-5, SLC 5/04, or ControlLogix controller on a DH+ link.

13 DeviceNet Connector Connects to a DeviceNet network.

14 ControlNet Connector Connects to a ControlLogix controller (with 1756-CNB module) or PLC-5 on a

ControlNet network.

15 RS-232 (DF1) Communication Port Connects to a PLC, SLC, or MicroLogix controller with a DF1 port.

16 Ethernet Connector Connects to a PLC-5E or SLC 5/05 controller, or a ControlLogix, MicroLogix, FlexLogix,

or CompactLogix (with appropriate bridge module) on an EtherNet/IP network.

17 RS-232 Printer/File Transfer Port Connects to a printer.

On remote I/O, DH+, DF1, DeviceNet, EtherNet/IP, or ControlNet terminals, this port

also connects to the RS-232 port of a computer for transferring applications.

The RS-232 port on the DH-485 or RS-232 (DH-485) terminal is used to connect a

printer but not for file transfers.
