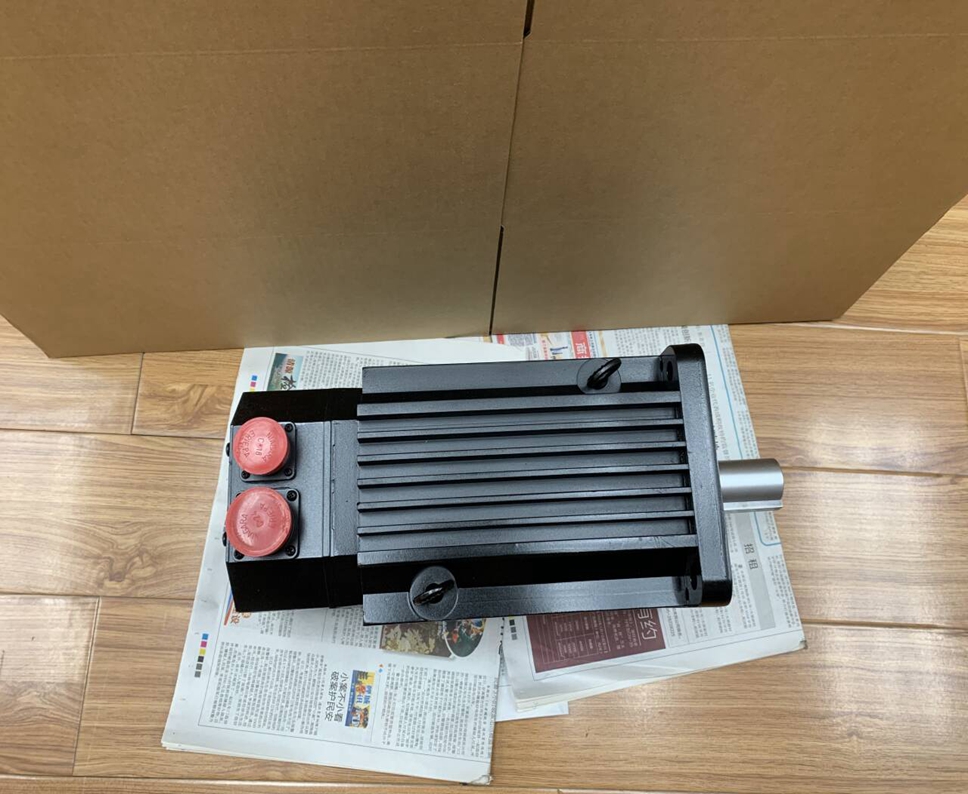

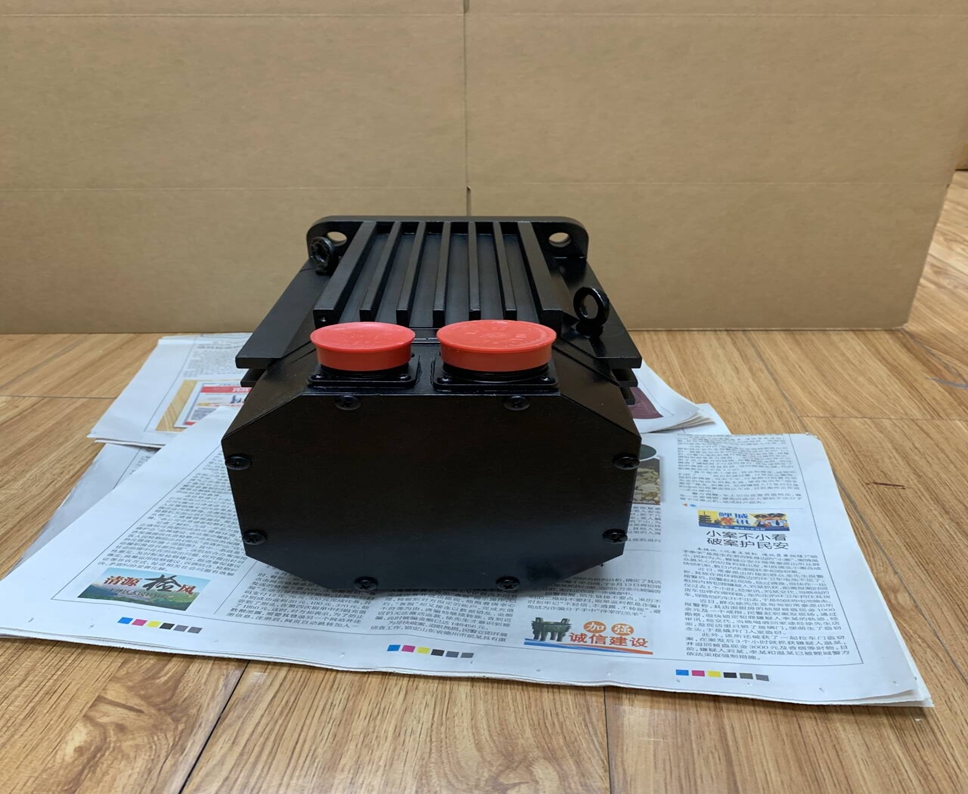

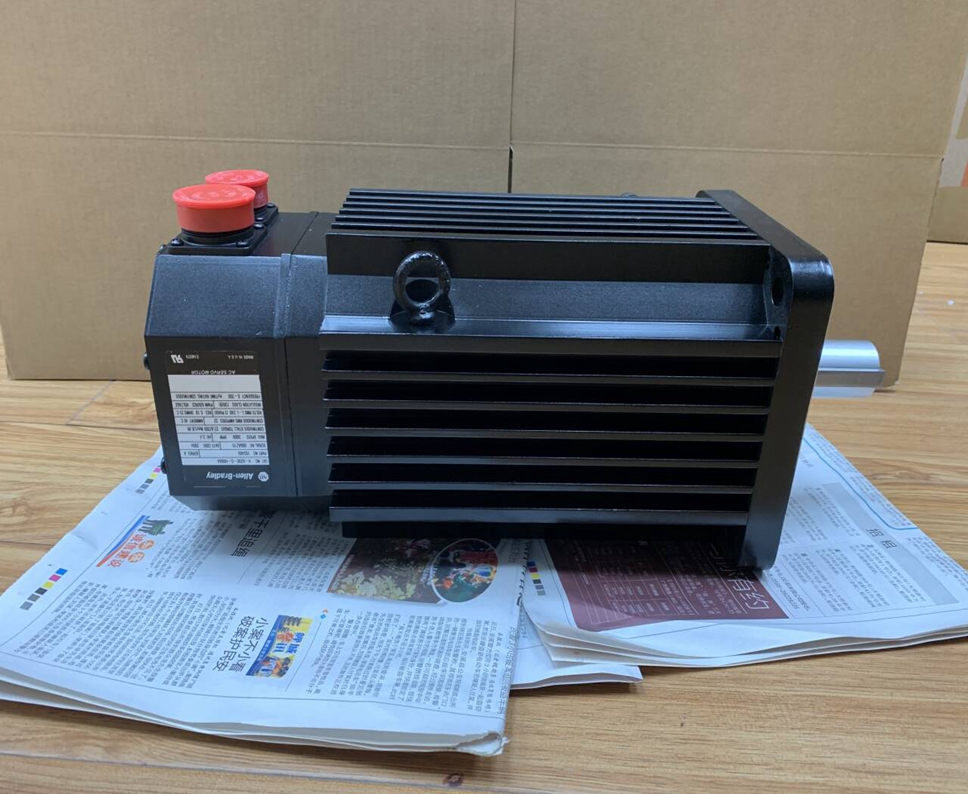

H-6200-Q-H00AA AB

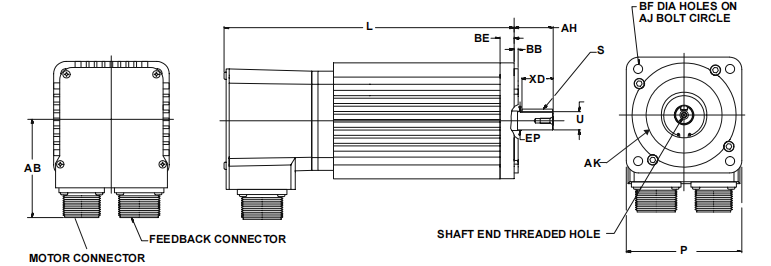

The H-Series motor has an IP65 rating, when coupled with environmentally sealed Military Specification (MS) cable assemblies and when an optional shaft seal is installed. Equipment rated as IP65

provides protection against the ingress of dust and water projected by a nozzle (jet) from any direction.

An IP65 rating is roughly equivalent to a NEMA 12 enclosure type rating. The IP65 rating applies for

any orientation of motor mounting, but it is recommended to mount the motor so the connectors

project down.

If cable assemblies are used that are not environmentally sealed, the motor is rated IP40, with or

without the optional shaft seal. With environmentally sealed cable assemblies and no optional shaft

seal the motor rating is as follows: Motor mounted horizontally; IP51. Motor mounted shaft up; IP50.

Motor mounted shaft down; IP53.

Description:

1. Do not run motors that are not properly mounted. Attach all power and data cables after the

motor is mounted.

2. Mount motors with connectors pointing downward and use a drip loop in the cable to keep liquids flowing away from the connectors.

3. Consider motor case temperature if necessary to safeguard operator and maintenance staff.

Maximum case temperature is approximately 100°C (212°F) for a motor used at continuous rating in a 40°C ambient temperature.

4. The installer must comply with all local regulations and should use equipment and installation

practices that promote electromagnetic compatibility and safety.

Preventing Electrical Noise

ElectroMagnetic Interference (EMI), commonly called “noise”, may adversely impact motor performance by inducing stray signals. Effective techniques to counter EMI include filtering the AC power,

shielding and separating signal carrying lines, and practicing good grounding techniques. Effective

AC power filtering can be achieved through the use of isolated AC power transformers or properly

installed AC line filters. Physically separate signal lines from motor cabling and power wiring; do

not parallel signal wires with motor or power wires or route signal wires over the vent openings of

servo drives. Ground all equipment using a single-point parallel ground system that employs ground

bus bars or straps. If necessary, use electrical noise remediation techniques to mitigate EMI in “noisy”

environments.

Knowledgable cable routing and careful cable construction improves system electromagnetic compatibility (EMC). General cable build and installation guidelines include:

1. Keep wire lengths as short as physically possible.

2. Route signal cables (encoder, serial, analog) away from motor and power wiring.

3. Separate cables by 1 foot minimum for every 30 feet of parallel run.

4. Ground both ends of the encoder cable and twist the signal wire pairs.

5. Use shielded motor cables when necessary to prevent electromagnetic interference (EMI) with

other equipment.
