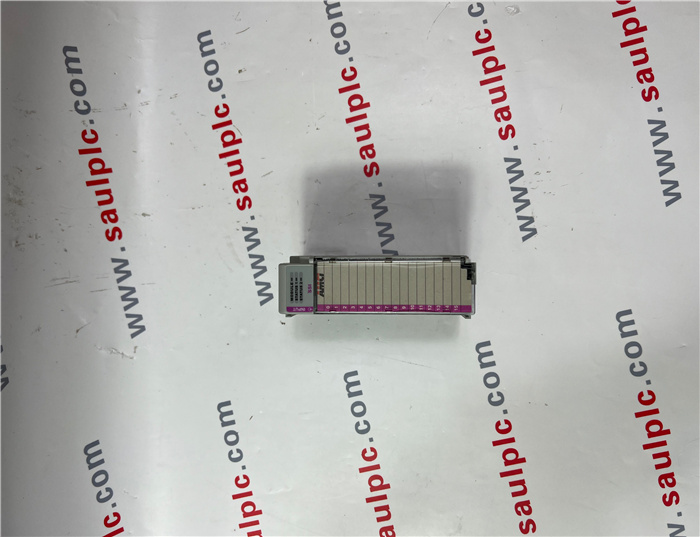

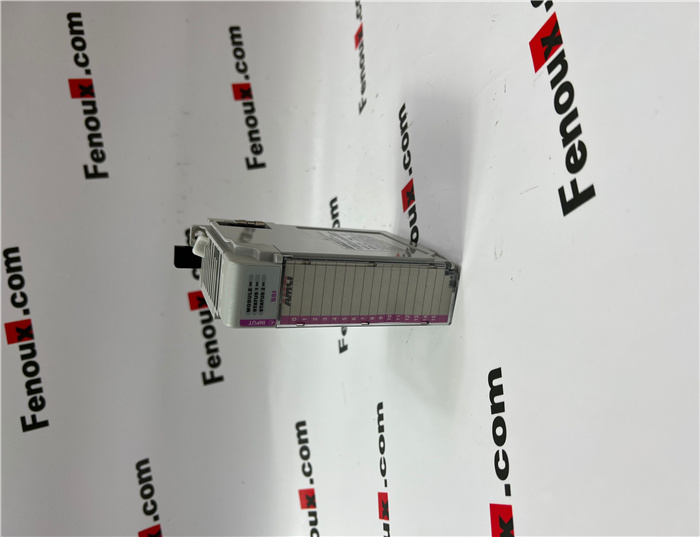

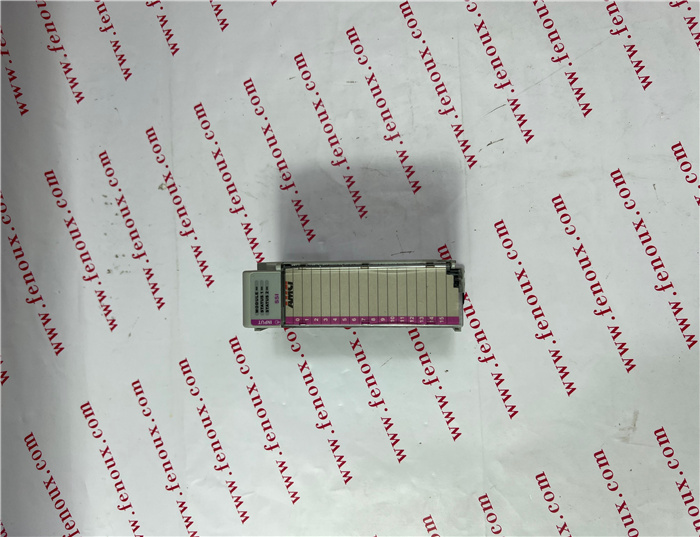

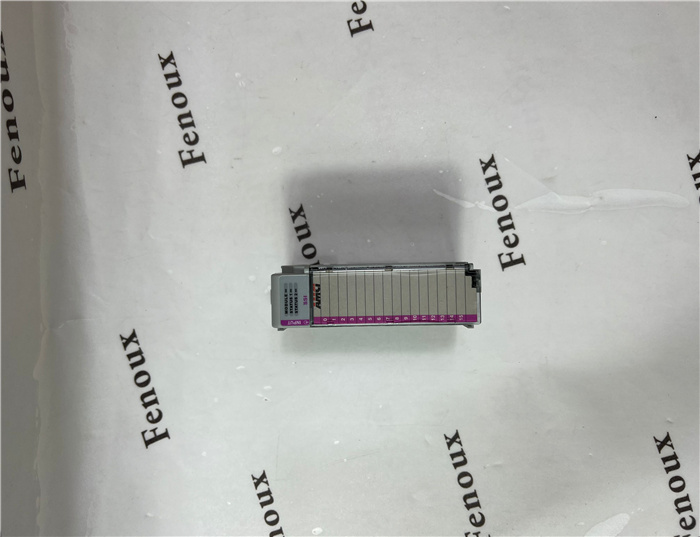

7662 AMCL CompactLogix SSI Interface Module

INQUIRE NOW

Products Name: 7662 AMCL CompactLogix SSI Interface Module

PRODUCT DESCRIPTION

Brand:AMCL

Model number:7662

Colour:new

Warranty: 12 months

Lead Time:3-day working day

Country of origin: USA Price: Please contact us

Product weight:0.11kg

Shipping Port: Xiamen, China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Module Overview :

The 7662 module is a SSI interface module that can reside in either a Rockwell Automation

CompactlLogix or MicroLogix 1500 rack system. This module is capable of connecting to two

independent SSI output sensors. This module also has two latching inputs, one for each channel, that

are used to capture the sensor’s data.

The 7662 module uses 8 input and 8 output registers to communicate with the PLC. The Position,

Velocity, Actual SSI data, Latched Value, and Status information are reported to the Input Registers.

All module setup parameters, including Preset Value, Count Direction, Velocity Response Time,

Display Format, as well as the SSI-Logic parameters [Data Type (binary or gray code), Data Logic

(positive or negative), Number of Clock Bits, Number of Data Bits, MSB Number, and Clock

Frequency] are programmed through the Output registers assigned to the module.

The 7662 module stores its parameters in a non-volatile flash memory when power is removed so it is

not necessary to program the module at every power up. However, this flash memory is good for a

minimum of 10,000 write cycles so the module must not be programmed during every machine cycle.

The module has two opto-coupler latching inputs that will capture the scaled sensor data on the

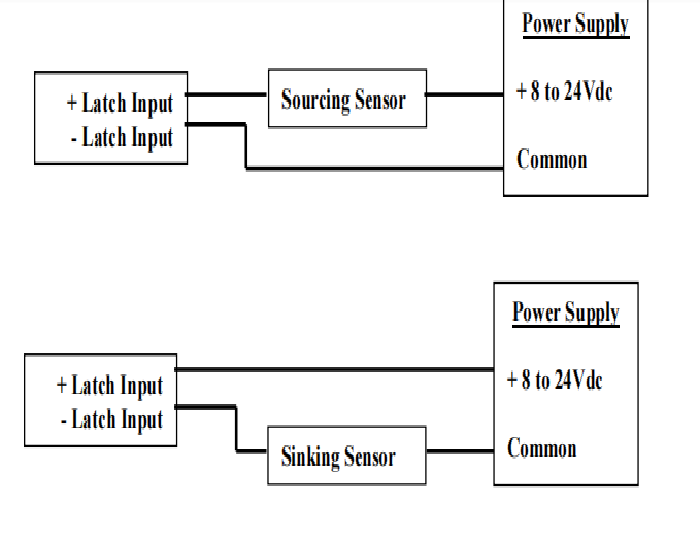

rising, falling, or both transitions of the input. These inputs can be wired to be sinking or

sourcing and will activate when they see a voltage level between 8 and 24Vdc across the + and

– latch terminals.

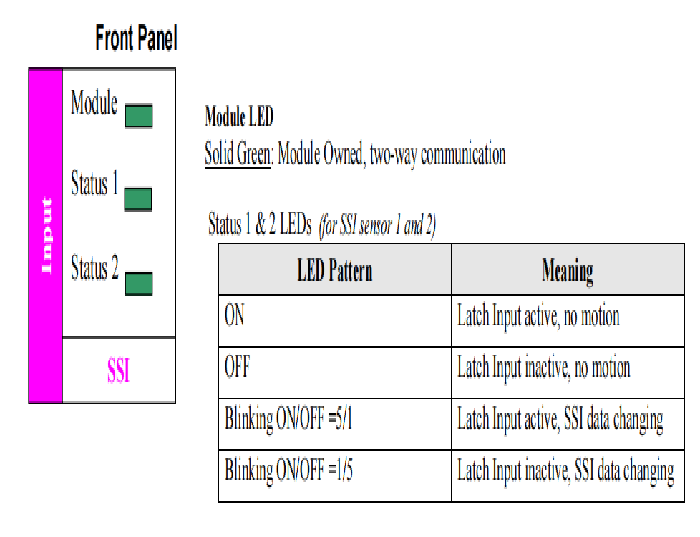

The 7662 module is shipped with channel 2 disabled. Enable channel 2 by simply programming the

channel 2 setup data. It is also possible to disable the second channel of the 7662 module. If only one

sensor is being used, disabling the second channel is recommended because the module will stop all

activities associated with channel two, thereby improving the throughput time.

Sample programs showing how to program the 7662 module in both MicroLogix and CompactLogix

systems are available from the following page of our website.le
