Product Description

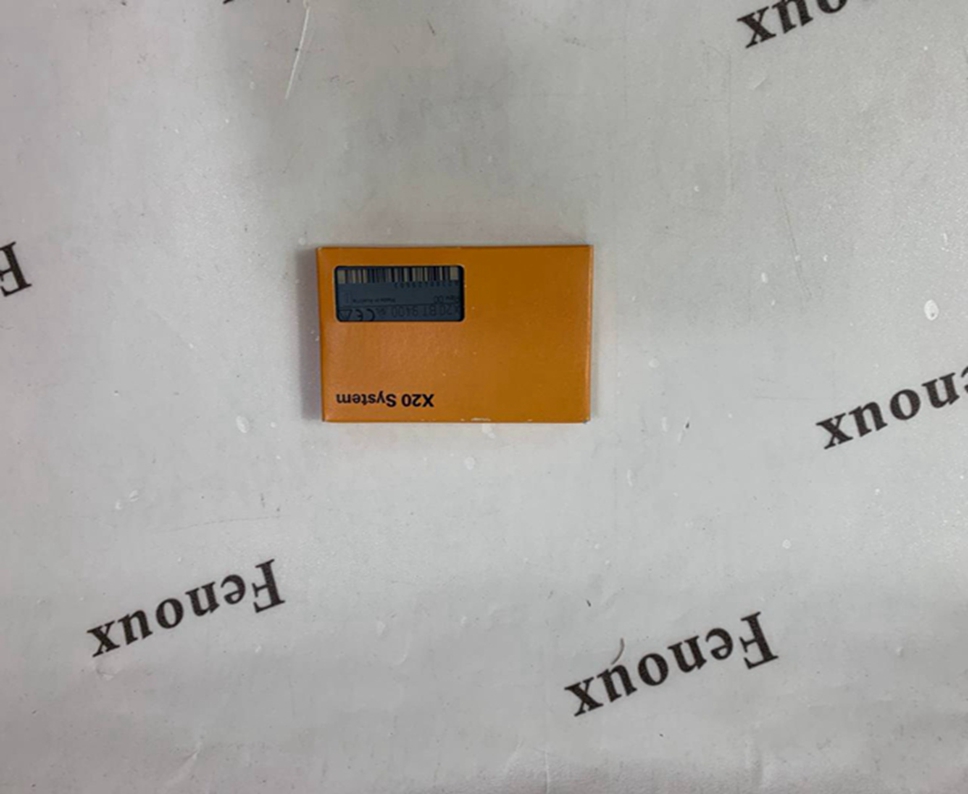

The B&R X20AT4222 is a versatile input module designed for industrial automation applications. It is specifically tailored for temperature measurement and offers high precision and reliability. This module is part of the broader B&R X20 system, known for its modularity and scalability.
Key Features and Specifications
4-channel temperature input: Capable of measuring temperature from up to four different sensors simultaneously.
PT100 and PT1000 compatibility: Supports both commonly used resistance temperature detectors (RTDs) for wide-ranging temperature measurements.
Configurable sensor type: Offers flexibility to configure each channel individually for either PT100 or PT1000 sensors.
Direct resistance measurement: Provides accurate resistance measurements for precise temperature calculations.
2- or 3-wire connections: Supports both 2-wire and 3-wire sensor connections for different installation scenarios.
Configurable filter time: Allows customization of the filter time to reduce noise and improve signal quality.
Compact and rugged design: Suitable for harsh industrial environments.
Advantages
High accuracy: Delivers precise temperature measurements with minimal error.
Flexibility: Can be adapted to various applications due to its configurable features.
Reliability: Built to withstand demanding industrial conditions.
Easy integration: Seamlessly integrates into the B&R X20 system.
Cost-effective: Offers a good balance of performance and price.
Precautions
Sensor compatibility: Ensure that the connected sensors are compatible with the module's specifications (PT100 or PT1000).
Wiring: Correctly wire the module according to the manufacturer's instructions to avoid damage or incorrect readings.
Environment: Protect the module from excessive heat, humidity, and vibrations.
Grounding: Proper grounding is essential for accurate measurements and to prevent electrical noise.
Applications
Process automation: Monitoring and controlling temperature in industrial processes.
Building automation: Regulating temperature in HVAC systems.
Machine automation: Measuring temperature in machines and equipment.
Environmental monitoring: Monitoring temperature in various environmental conditions.
Summary
The B&R X20AT4222 is a reliable and versatile temperature measurement module that offers numerous advantages for industrial automation applications. Its key features, such as multiple channels, configurable sensor types, and direct resistance measurement, make it a valuable tool for engineers and technicians. By following the precautions outlined above, users can ensure optimal performance and longevity of the module.
Would you like to know more about specific aspects of the B&R X20AT4222, such as installation, configuration, or troubleshooting?
Please feel free to ask any questions you may have.
Additional keywords for your search: B&R automation, X20 system, temperature sensor, PT100, PT1000, industrial automation, input module.
Note: For the most up-to-date and detailed information, please refer to the official B&R product documentation.
