Brand： BACHMANN
Model number：AIO288
Colour：new
Warranty: 12 months
Lead Time：3-day working day
Country of origin: USA Price: Please contact us
Product weight：0.52Kg
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Description:

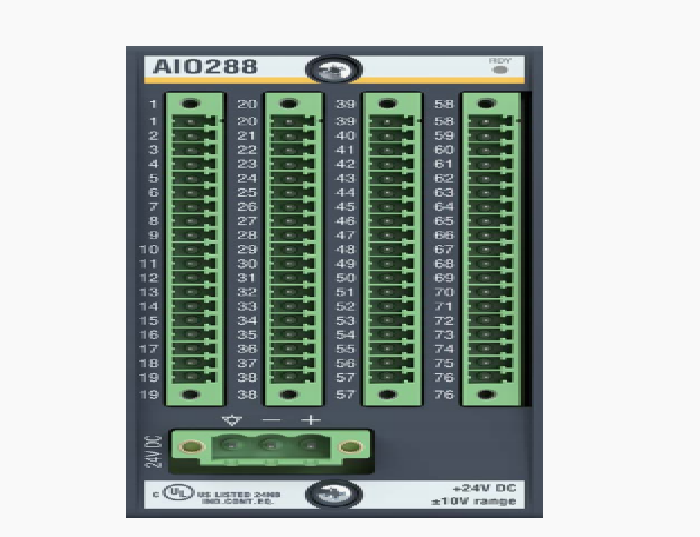

The analog input/output module AIO288/x offers 8 analog input
channels as well as 8 analog output channels.
• 8 analog inputs
• 8 analog outputs
• Connection possibility single-ended or differential
• Power supply for up to 4 potentiometers
• Temperature inputs for up to
4 Pt100/Pt1000 sensors
• 2-wire or 4-wire inputs for Pt100/Pt1000 sensors
• Wire break detection for the inputs
(for voltage and temperature)
• Short circuit proof outputs
• Overload detection for potentiometer power supplies
• Monitoring of the external supply voltage
Voltage inputs
Quantity Max. 8
Input voltage ±1 V or ±10 V
Input impedance > 100 kΩ
Digital resolution 14 bit
Allowed common mode voltage Max. ±1 V
Basic accuracy at 25 °C Max. ±0.05 % of input voltage range
Input cutoff frequency 1.5 kHz (3 dB)
Cross-talk attenuation > 60 dB
Sample time 200 µs
Voltage outputs
Quantity Max. 8
Output voltage ±10 V
Digital resolution 14 bit
Allowed common mode voltage Max. ±1 V
Basic accuracy at 25 °C Max. ±0.025 % of measuring range
Settling time of 1 % of the
output current range
Max. 400 µs
Cross-talk attenuation > 60 dB
Refresh cycle time 200 µs
Current inputs
Quantity Max. 8
Input current 0 to 20 mA
Input impedance 243 Ω
Digital resolution 14 bit
Max. input current 35 mA (destruction limit)
Basic accuracy at 25 °C Max. ±0.1 % of measuring range (20 mA)
Input cutoff frequency 1.5 kHz (3 dB)
Sample time 200 µs
