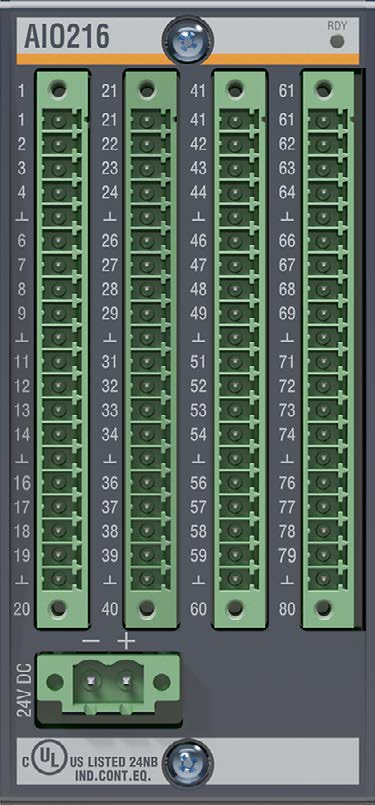

Bachmann AIO216

• Measuring range monitoring freely adjustable (±105 %)

• Error message on overload and overtemperature and undervoltage

of the supply

• Galvanic isolation from the system 500 V

• Optional condensation-proof ColdClimate ( )

The AIO208 and AIO216 modules enable the measuring or output

of all standard analog signals. The AIO208 offers 8 channels and

the AIO216 16 channels compactly in a single module. The standard

signal types for current (0 to 20 mA and 4 to 20 mA) and voltage ranges

(±10 V to ±10 mV) allow the connection of a wide range of sensors

and actuators. A minimum 14-bit resolution makes it  possible to

also measure signals that do not fully utilize the measuring range

(e.g. 0 to 5 V) with a sufffciently high resolution. Temperatures are

playing an important role in an increasing number of processes.

These modules therefore also support Pt100/Pt1000 in 2, 3 and

4-wire measuring  circuits, as well as all standard thermocouples.

For each channel, a second channel with unused signal types can

be used in addition to the pri mary conffgured signal type. For

example, a current output can be assigned to a voltage input so

that up to twice the number of channels per module are provided.

This enables one module to cover virtually all analog signal

measuring tasks instead of having to use many different modules

for each signal type. A cost-effective solution that simpliffes logistics

and servicing. Different modes can be combined and set simply

using a conffguration wizard in the SolutionCenter engineering tool.

• 8 channels AIO208, 16 channels AIO216

• Analog inputs and outputs

• Modes that can be selected per channel:

- Analog voltage input ±10 V to ±10 mV

- Analog current input 0(4) to 20 mA

- Temperature sensor Pt elements as 2-,3-,4-wire

- Thermo couples type J, K, T, N, E, R, S, B

- Analog voltage output ±10 V

- Analog current output 0(4) to 20mA

• Resolution: 16-bit input with fflter, 14-bit output

• Filter adjustable from 4 kHz to 0.5 Hz per channel

• All outputs overload, short circuit and external voltage-proof
