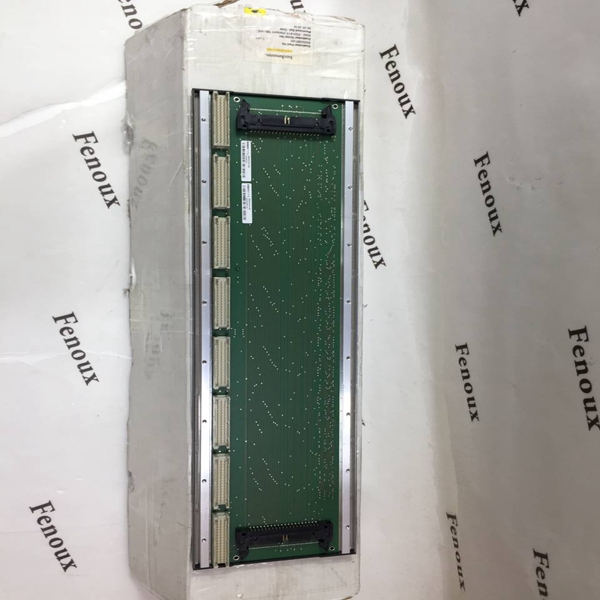

Bachmann BS208

The backplanes of the series BS200/S for protection class 1

interconnect the M1 controller hardware modules, such as power

supplies, CPU modules and input / output modules, mechanically

and electrically. They are the backbone of the controller.

• 3 to 16 module slots

• Seamless connection / possible

• Stabile mechanics / compact design

• Vibration proof ffxing of modules

• Can be snapped on EN 60715 DIN rail

• For protection class 1

• Grounding tab for protective conductor connection, necessary

for use of voltages other than SELV

BS200/S

Dimensions

Number of module slots 3 to 16

Width 55 mm x number of module slots

Depth 23 mm incl. connector

Height 119 mm without protective conductor connection

137 mm with protective conductor connection

Approvals / Certiffcates

General CE, cULus, CCC

Marine DNV GL, LR, ABS, BV

Ambient conditions

Operating temperature -30 to +60 °C (vertical: -30 to +55 °C)

Rel. humidity operation 5 to 95 % without condensation

Storage temperature -40 to +85 °C

Rel. humidity storage 5 to 95 % without condensation

Order Codes

Item Item No. Description

BS203/S 00018517-00 1)

 Backplane with 3 module slots, Protection Class 1

BS204/S 00018519-00 1) Backplane with 4 module slots, Protection Class 1

BS205/S 00018520-00 1) Backplane with 5 module slots, Protection Class 1

BS206/S 00018521-00 1) Backplane with 6 module slots, Protection Class 1

BS207/S 00018522-00 1) Backplane with 7 module slots, Protection Class 1

BS208/S 00018524-00 1) Backplane with 8 module slots, Protection Class 1

BS209/S 00018525-00 1) Backplane with 9 module slots, Protection Class 1

BS210/S 00018526-00 1) Backplane with 10 module slots, Protection Class 1

BS211/S 00018527-00 1) Backplane with 11 module slots, Protection Class 1

BS212/S 00018528-00 1) Backplane with 12 module slots, Protection Class 1

BS213/S 00018529-00 1) Backplane with 13 module slots, Protection Class 1

BS214/S 00018530-00 1) Backplane with 14 module slots, Protection Class 1

BS215/S 00018531-00 1) Backplane with 15 module slots, Protection Class 1

BS216/S 00018532-00 1) Backplane with 16 module slots, Protection Class 1

Accessories

K-BS240 00010519-00 Cable Backplane extension manufactured 40-poles
