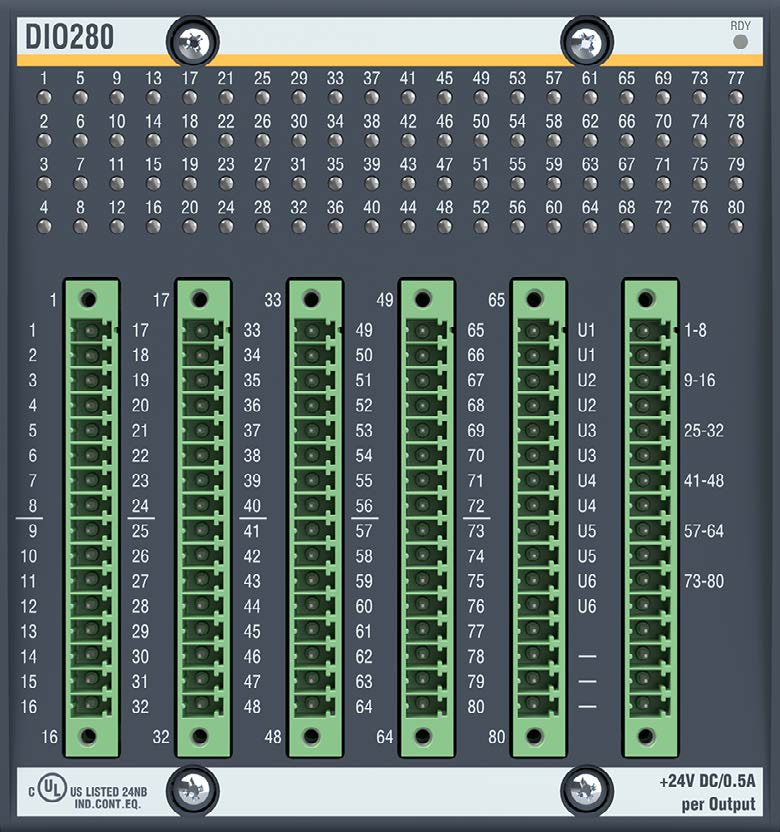

Bachmann DIO280

Digital input/output module; 16x DI; 600µs fflter; 16x DIO; 16x DO; 24V / 0.5A; 4

groups, 600µs fflter; 8 interrupt channel; 50µs delay; isolated

The input/output module DIO248, DIO264 and DIO280 are used

for controlling digital consumer like contactors, relays, pneumatic

and hydraulic valves, as well as for reading signals of digital working

sensors, detectors or switches. On events can be reacted expressly

via 8 available interrupt inputs. Alternatively there are available up

to four counters, for detecting e.g. positions or counting goods. For

the energy-saving operation of inductivities all outputs can be operated

 as PWM. Especially for the PWM operation of valves a hold

time is additionaly conffgurable between 0 up to 2 s. Outputs are

parallel connectable, in case it is operated in the same operation

mode.

• 48/64 or 80 digital channels

• 16 channels can be conffgured as input or output

• Conffgurable interrupt inputs

• Conffgurable 32 bit counter

• Mode: event counter, incremental encoder, gate measurement,

cycle time or frequency measurement

• Conffgurable input fflter

• PWM output mode for e.g. valve economy mode

• Status display for each channel via LED

• Supply voltage 18 to 34 VDC

• Supply voltage protected against reverse polarity

• Cost effective and space saving
