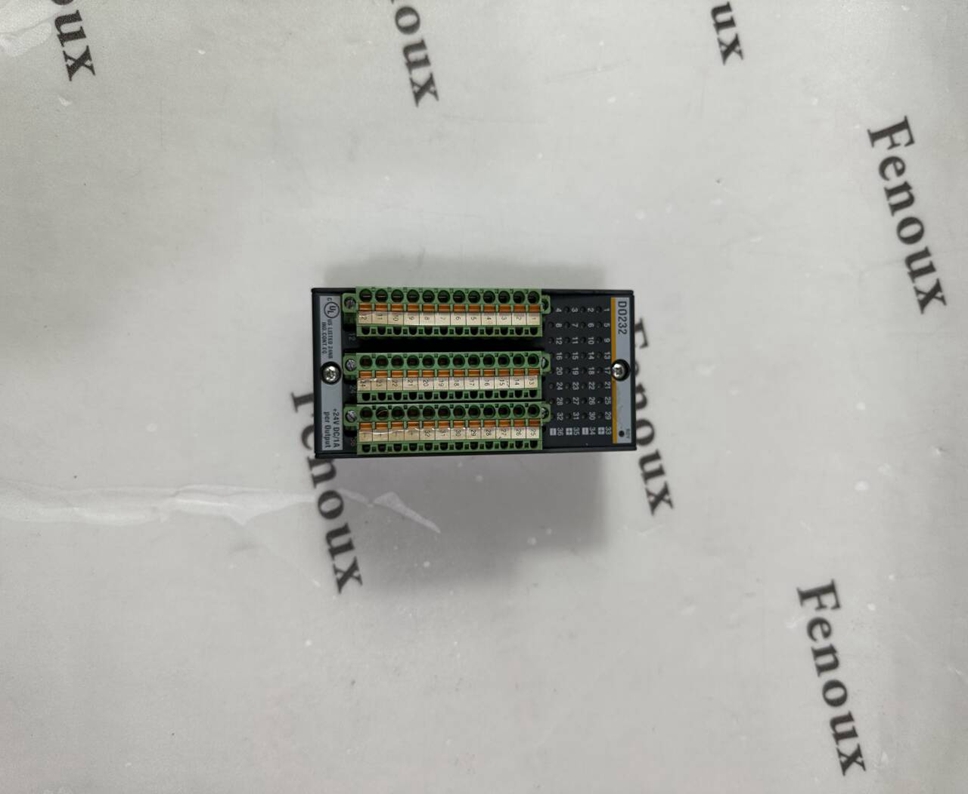

bachmann DO232

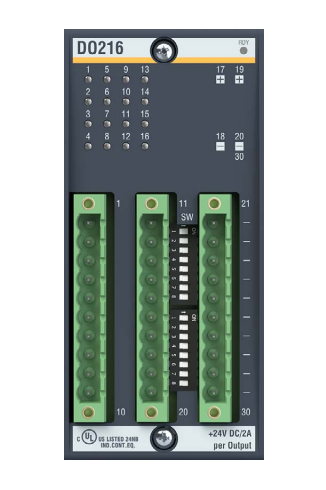

• The digital output modules DO216, DO232 and

DO232 CC are suitable for connecting up to 16 or 32 digital

signal receivers (relays, contactors, signal lamps, valves, etc.) to

the M1 controller.

• Digital output modules with 16 or 32 outputs

• Outputs 24 VDC (DO216, DO232, DO232 CC)

• 16 outputs with 2.5 A or 32 outputs with 1 A

• Outputs parallel connectable

• Monitoring of short circuit, wire break and overload

• Compact design

• Status display for each channel via LED

Description

Number of outputs 16 32

Output current / channel 1) 2.5 A 1 A

Groups with different power supplies 2 (1-8 / 9-16) 2 (1-16 / 17-32)

Total current / group Max. 8 A Max. 8 A

Switching delay (resistive load)

 0 -> 1 Normally 80 µs

(at 1 A)

Normally 80 µs

(at 1 A)

 1 -> 0 Normally 250 µs

(at 1 A)

Normally 250 µs

(at 1 A)

Galvanic isolation from system 500 V 500 V

Approvals / Certificates

General CE, cULus, CCC

Marine DNV GL, LR, ABS, BV

Ambient conditions Standard ColdClimate ( )

Operating temperature -30 to +60 °C

Rel. humidity operation 5 to 95 % without condensation 5 to 95 % with condensation

Storage temperature -40 to +85 °C

Rel. humidity storage 5 to 95 % with condensation

Pollution degree 2 (without condensation; according to

IEC 60664-1)

2 (according to IEC 60664-1)

1) Rated

Order Codes

Item Item No. Description

DO216 00009004-00 Digital output module; 16x 2.5A / 24VDC outputs; 2 groups; isolated

DO232 00009003-00 Digital output module; 32x 1A / 24VDC outputs; 2 groups; isolated

DO232 CC 00016414-00 Like DO232; ColdClimate ( )

Accessories

KZ-DO216 B+C 00012005-50 Terminal set Phoenix cage clamp (3x KZ 51/10) with labeling strip and coding

elements

KZ-DO232 B+C 00012006-50 Terminal set Phoenix cage clamp (3x KZ 51/12) with labeling strip and coding

elements

SV-DO216 B+C 00010865-50 Terminal set Phoenix screw frontside (2x SV 51/10) with labeling strip and coding

elements

SV-DO232 B+C 00010868-50 Terminal set Phoenix screw frontside (2x SV 51/12) with labeling strip and coding

elements
