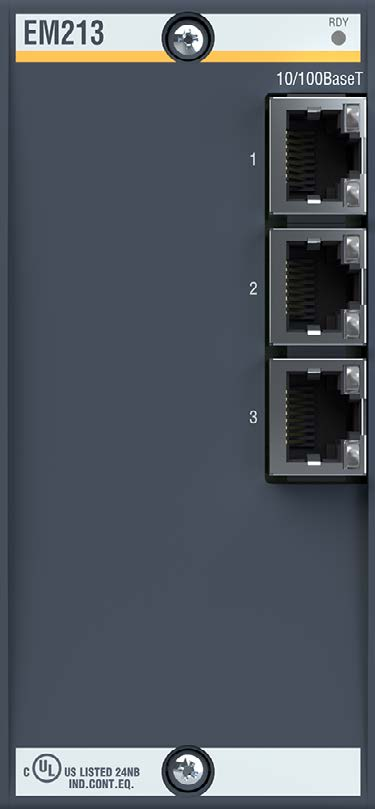

Bachmann EM213

The module EM213 extends the control system with an additional

Ethernet adapter with 3 ports for 10/100 MBit. Thus Ethernet ports

for connection of a service laptop or for other Ethernet-based

networking are also available on FASTBUS substations.

• Cable length to 100 m per line

• Status display via LED

• 3xRJ45 connections

• Integrated switch

EM213

Ethernet master

Number of transceivers 3x 10 / 100BaseT

Connectors 3x RJ45 / crossed and uncrossed cables can be used

(autocross detection)

Line length Max. 100 m / line

Transfer rate to M1 CPU Max. 2.4 Mbit / s user data

Transfer rate as switch Max. 100 Mbit / s

Line impedance 100 Ω

Status display LEDs for power, collision + 4x LinkPuls, 3x speed (10 / 100 Mbit / s)

Approvals / Certiffcates

General CE, cULus, CCC

Marine DNV GL, LR, ABS, BV

Ambient conditions Standard ColdClimate ( )

Operating temperature -30 to +60 °C -30 to +60 °C

Rel. humidity operation 5 to 95 %

without condensation

5 to 95 %

with condensation

Storage temperature -40 to +85 °C

Rel. humidity storage 5 to 95 %

without condensation

5 to 95 %

with condensation

Pollution degree 2 (without condensation; according to

IEC 60664-1)

2 (according to IEC 60664-1)
