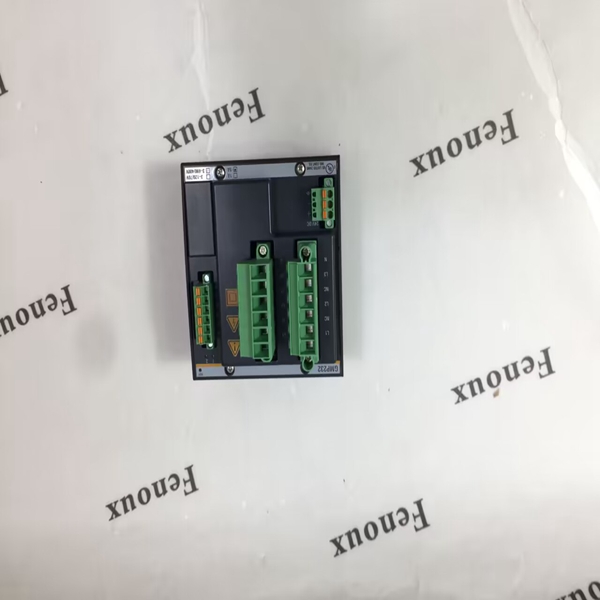

Bachmann GMP232

Intervals that can be retrieved via function calls in the user application: 100 µs,

200 µs, 400 µs, 800 µs, 1.6 ms (via block access)

The GMP232/x enables the safe, reliable and fast measuring of

all relevant values for three-phase electrical networks. It also

provides a number of monitoring functions for generator and grid

protection. Up to two circuit-breakers/trip circuits are triggered by

the module directly via relay outputs. The continuous monitoring

of grid harmonics up to the 50th harmonic can be used for direct

responses as well as for evaluating the power quality.

The module is provided with an integrated real-time data recorder

for the high-precision recording of up to 24 measuring channels

during alarm/protection events. Error events are recorded

continuously and stored permanently with a high resolution time

stamp. The internal time base of the module can be synchronized

to an external time source (e.g. IEEE 1588 Precision Time Protocol),

which supports the analysis of the data from geographically

separated measurement and protection devices.

The GMP232/x is fully integrated in the Bachmann SolutionCenter.

Conffgurations can be created simply and stored for later reuse.

Both the measured channel values and also the derived values are

made available directly in the user interface. Commissioning and

fault analysis are simpliffed with tabular, vector and time sequence

displays. Event logs and recorded time sequences can be exported

in CSV resp. COMTRADE format. The integrated simulation function

simpliffes the conffguration of protection and monitoring functions.

• Measurement of current, voltage, frequency, power, power

factor, phase angle

• True RMS and fundamental RMS, symmetrical components

• High dynamic measurement

• Measurement of grid harmonics up to the 50th (PQ)

• Monitoring functions for grid and generator protection

• Direct relay outputs for circuit-breaker/trip circuits

• Integrated real-time data recorder

• Integrated event logging

• 4Q energy counter

• Integrated average values, grid statistics

• Measured value simulation
