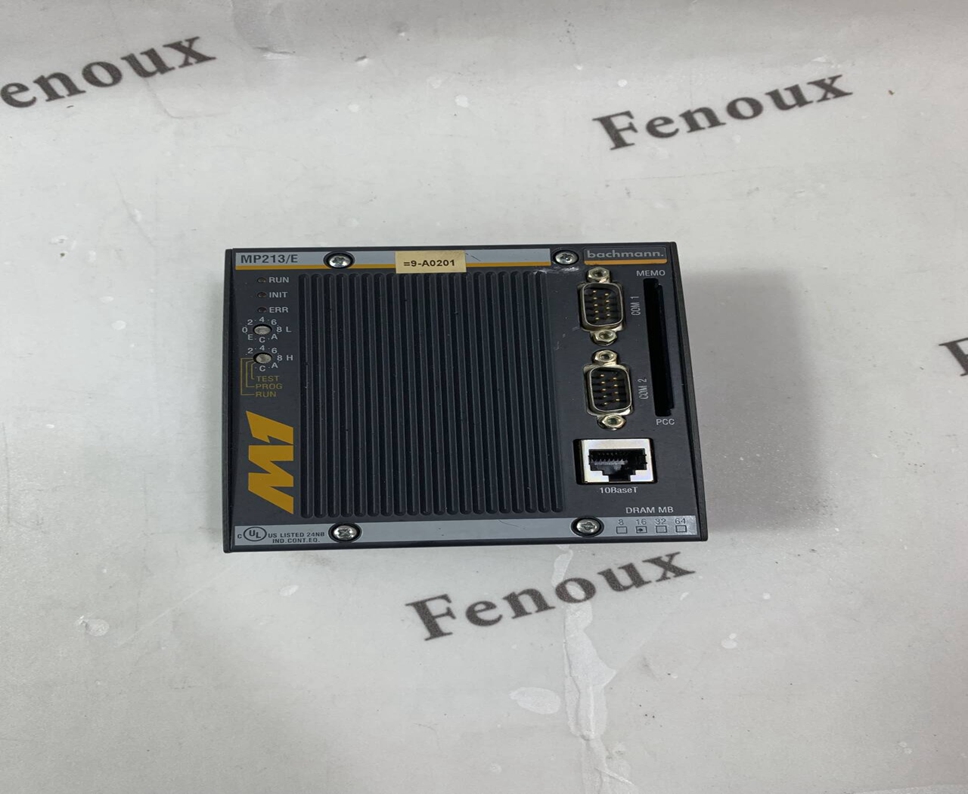

BACHMANN MP213/E

Architecture LX

CPU Industrial Low Voltage

Clock frequency 266 MHz 266 MHz 433 MHz

Processor Cores 1

Hyper-Threading -

Multitasking Yes

Realtime-SMP / Core reservation -

Memory

Main memory / partitions 256 MB / Yes

Ramdisk Yes

Retentive memory (Retain) 512 kB NVRAM

Mass storage integrated 64 MB 1) 2)

Mass storage removable – Compact Flash 3) (via side cover)

– PC-Card front side (16/32/64 MB)3) 4)

Processor modules of the MX200 series combine outstanding environmental robustness with very compact dimensions.

Thanks to an integrated power supply unit, which can also provide the I/O module power supply and integrated communication

interfaces, complete basic system can be implemented on only

2  module widths. The industrial processors used with scalable

clock frequencies offer sufficient CPU performance for small to

medium-sized applications.

Machine control, simple motion control, a wide range of communication tasks or condition monitoring can be implemented easily

and cost efficiently with this platform. Different programs can be

executed virtually in parallel thanks to the real-time multi-tasking.

If the CPU performance has to be increased, applications can be

transferred easily to more powerful CPU models thanks to the

standard programming model.

The generous thermal design and special coating processes enable

fan-free use in extreme operating conditions from -30 to +60 °C.

• Industrial Processor at up to 433 MHz

• Priority scheduled Multitasking

• 256 MB RAM

• 512 kB remanent memory (Retain)

• 64 MB internal memory device1)

• CompactFlash card slot for removable media

• Front side PC-Card slot

• 2x Ethernet 10/100 Mbit/s

• 1x RS232, 1x RS232/RS422/RS485, 1x USB 2.0

• CAN/CANopen

• Integrated power supply for I/Os
