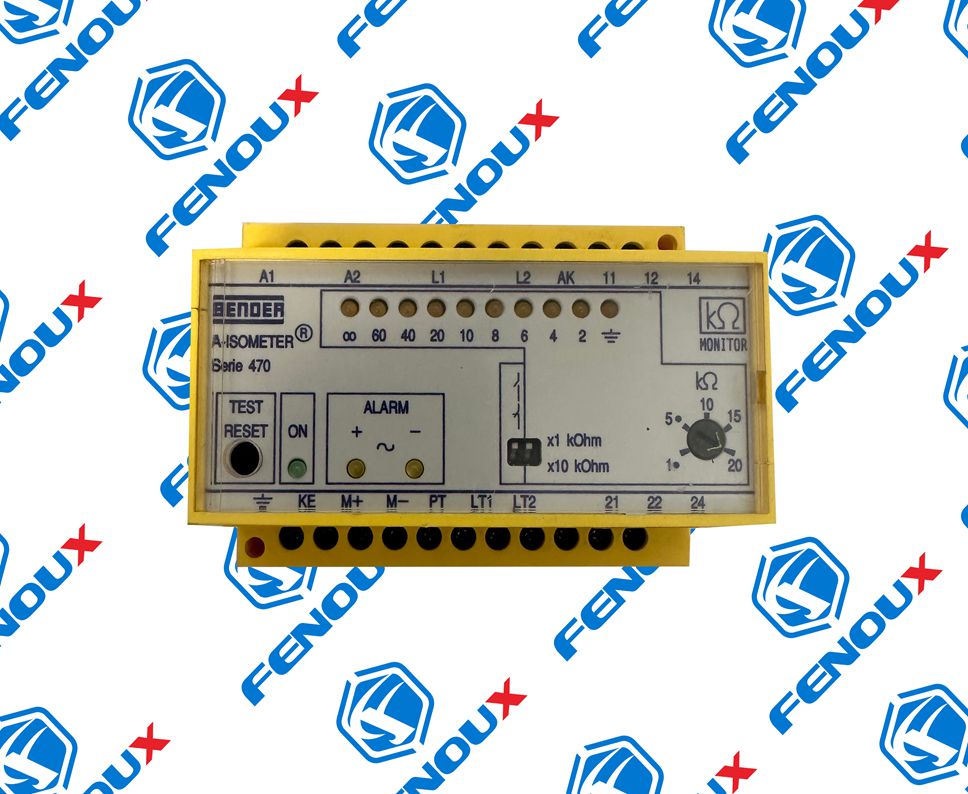

Bender IR470LY-4021 Insulation Monitoring Device

1. Product Description

The IR470LY-4021 is part of the ISOMETER® series, specifically engineered to monitor ungrounded AC systems. It operates by superimposing a DC measuring voltage onto the system; if the insulation resistance drops below a pre-configured value, the device triggers an alarm.

• Type: Insulation Monitoring Device (A-ISOMETER®)

• Series: 470

• Application: Pure AC systems without significant DC components or high leakage capacitance.

2. Technical Parameters (Specifications)

3. Key Product Advantages

• Reliable Early Detection: Detects insulation degradation before it leads to a total system failure or equipment damage.

• Versatility: While rated for 793 V AC, it can monitor high-voltage systems (up to 7.2 kV) when paired with external coupling devices (e.g., AGH series).

• Dual Response Ranges: Offers flexibility in setting sensitivity for different industrial environments.

• Connection Monitoring: Automatically monitors the connection to the system and earth; it signals an alarm if the measuring leads are disconnected.

• Compact Design: 70mm width allows for easy integration into standard control cabinets.

• Visual Diagnostics: Features a built-in LED bar graph to show the current insulation level and dedicated alarm/power LEDs.

4. Important Precautions (Notes)

• IT Systems Only: This device is exclusively for unearthed (IT) systems. It cannot be used in TN or TT (grounded) systems.

• No DC Components: The IR470LY series is designed for systems without large power electronics (like VFDs or rectifiers) that introduce DC components. For systems with DC components, the Bender IRDH series is recommended.

• Single Device Rule: Only one insulation monitoring device should be connected to a single galvanically connected IT system to avoid measurement interference.

• Coupler Use: For voltages exceeding 793 V, an AGH-series voltage coupler must be used to protect the device.

5. Product Applications

The IR470LY-4021 is widely used in sectors requiring high operational reliability where a first-fault should not shut down the power:

• Industrial Plants: Control circuits, motor control centers (MCCs), and production lines.

• Marine & Offshore: Shipboard power systems and oil rigs.

• Renewable Energy: Wind turbine auxiliary systems and power distribution.

• Infrastructure: Tunnel lighting, railway signal systems, and emergency power supplies.
