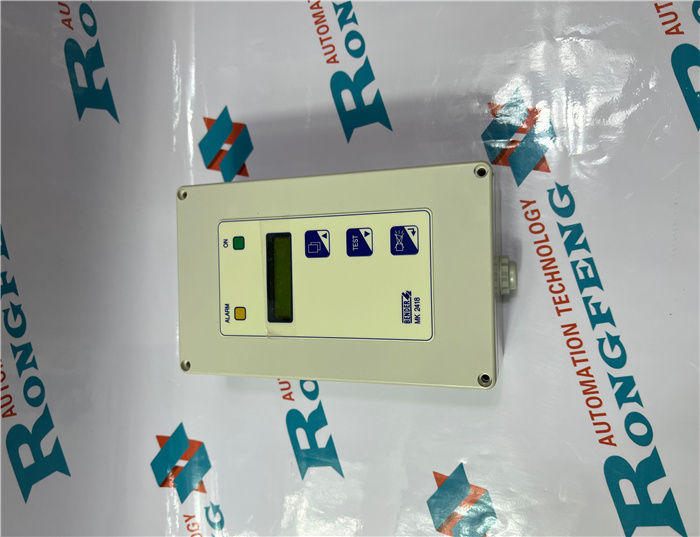

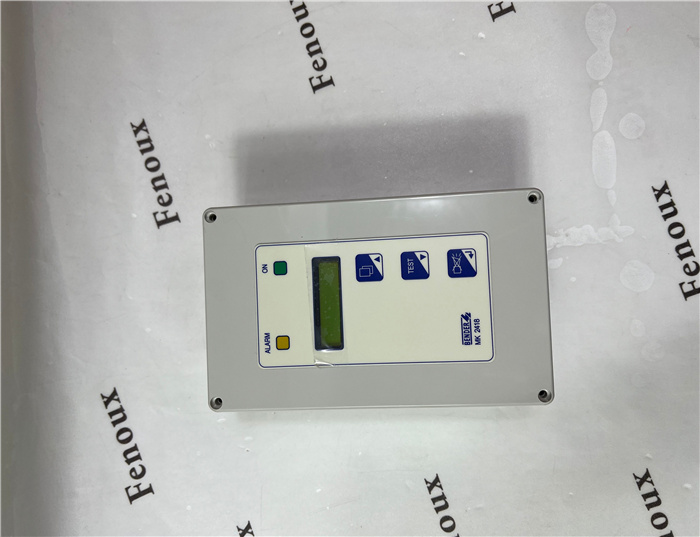

MK2418 BENDER Remote alarm indicator and test combination with LC display

INQUIRE NOW

Products Name: MK2418 BENDER Remote alarm indicator and test combination with LC display

PRODUCT DESCRIPTION

Brand: BENDER

Model number: MK2418

Colour:new

Warranty: 12 months

Lead Time:3-day working day

Country of origin: USA Price: Please contact us

Product weight:0.16kg

Shipping Port: Xiamen, China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Description:

Product description

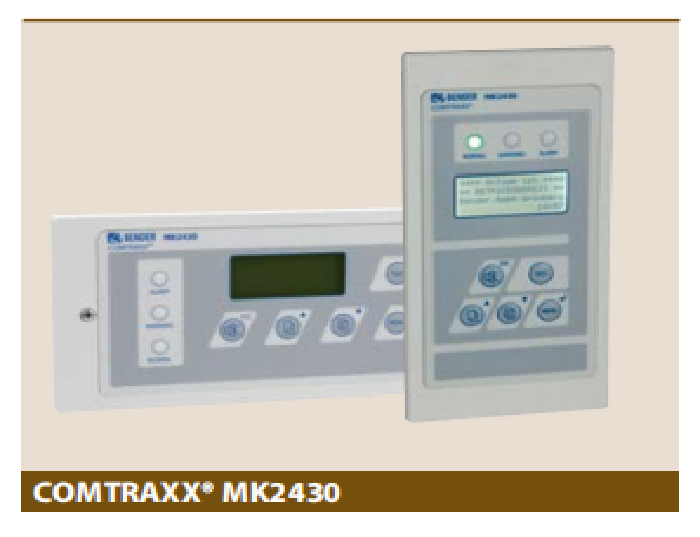

The universal remote alarm indicator and test combination MK2430 is designed for visual

and audible indication of alarm messages from Bender systems such as EDS, RCMS and

MEDICS. In MEDICS monitoring systems, the MK2430 meets the requirements of IEC 60364-7-

710 and DIN VDE 0100-710:2002-11 in respect of test functions for IT system monitoring

and alarms from changeover modules.

The IT system monitoring equipment can be tested using the programmable test button.

Important display functions:

The LC text display makes this information easy to understand. The connection between

the MKs and the changeover and monitoring modules is implemented with bus technology.

During normal operation, the MK2430 indicates the readiness for operation of the system.

The MK2430-11 features 12 digital inputs allowing messages from third party systems to

be recorded and displayed on the MK2430, for example from medical gases or UPS systems

(special safety power supply sources).

Function description

On its backlit LC display (4 x 20 characters), the MK2430 displays messages from all BMS

bus devices assigned via alarm addresses. As well as being used as a standalone indicator

the MK2430 also supports parallel operation. In the event of an alarm message, the yellow

“WARNING” LED or the red “ALARM” LED lights up and the message appears on the LC

display in plain text format. At the same time there is an audible signal (acknowledgeable).

If a second message is received whilst the first is still pending, the audible signal will

sound again and the messages will flash up alternately on the LC display. The address of

the device triggering the alarm can also be called up. The audible signal sounds again

once a configurable period of time has elapsed.

Internal device parameters (alarm addresses, test addresses,…) and the parameter setting

of EDS and RCM systems can be accessed via the menu system.

As a master, the MK2430 can also be used in installations with a number of IT and EDS

systems.

The test button can be used to check the operation of an ISOMETER® isoMED427P or IRDH.

A message is only output on the MK2430 on which the test button was pressed.

When wiring the bus connection, please note that a 4-wire cable (2 x BUS, 2 x US) with a

suitable cross section is required when the supply voltage US is incorporated in the cable.

Display/operating elements

The backlit display features four lines of 20 characters. It supplies medical and technical

personnel with information that is always clear and unambiguous, in order to help them

to make decisions. Every alarm message comprises three lines which appear spontaneously

and three additional lines which can be displayed at the touch of a button. The fourth

line contains status information (number of messages, test procedures, menu information).

Three LEDs are located above the text display. They indicate: normal operation (green),

warnings (yellow) or alarms (red). Five buttons are available for acknowledging alarms

and warnings, and for the menu system.

Remote alarm indicator and test combination with LC display

• Normal operation indicator (green LED)

• Insulation fault

• Overload

• Overtemperature

• Messages from insulation fault locators

(EDS) and residual current monitoring

systems (RCMS)

• Supply line failure

• Interruption of the phase conductor or

PE conductor of the ISOMETER®

• Power supply fault conditions and

changeover system faults

• Device failure

• Test results

• Measured values
