Collects data from other modules
in the rack, such as current
proportional values with time
stamp, module statuses, and
current alarm statuses, via a high
speed internal network.
Description:

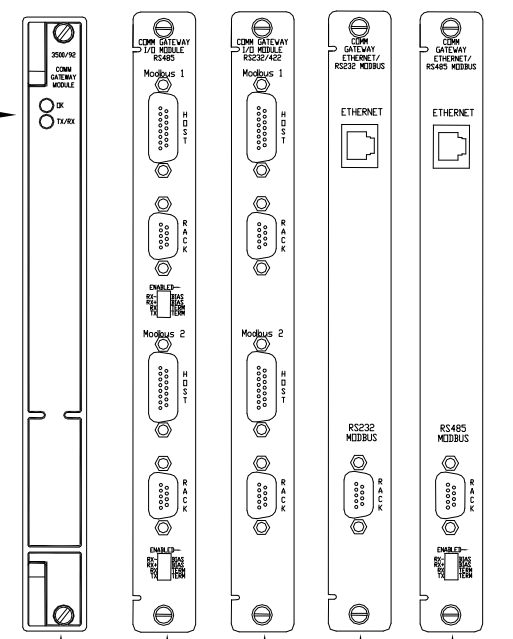

The 3500/92 Communication Gateway module provides extensive
communication capabilities of all rack monitored values and statuses for
integration with process control and other automation systems using both
Ethernet TCP/IP and serial (RS232/RS422/RS485) communications capabilities. It
also permits Ethernet communications with 3500 Rack Configuration Software
and Data Acquisition Software.
Supported protocols include:
• Modicon® Modbus® protocol (via serial communications)
• Modbus/TCP protocol (a variant of serial Modbus used for TCP/IP
Ethernet communications)
• Proprietary Bently Nevada protocol (for communication with 3500 Rack
Configuration and Data Acquisition Software packages)
The Ethernet connection to the 3500/92 is an RJ45 connection for 10BASE-T star
configuration Ethernet networks.
The 3500/92 supports the communication interfaces, communication protocols,
and other features from the original 3500/90 with the exception of the primary
value Modbus registers. The 3500/92 now has a Configurable Modbus Register
Utility, which can provide the same functionality originally addressed by the
primary value Modbus registers.
Shipping Port: China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
