330180-50-05 Bently Nevada

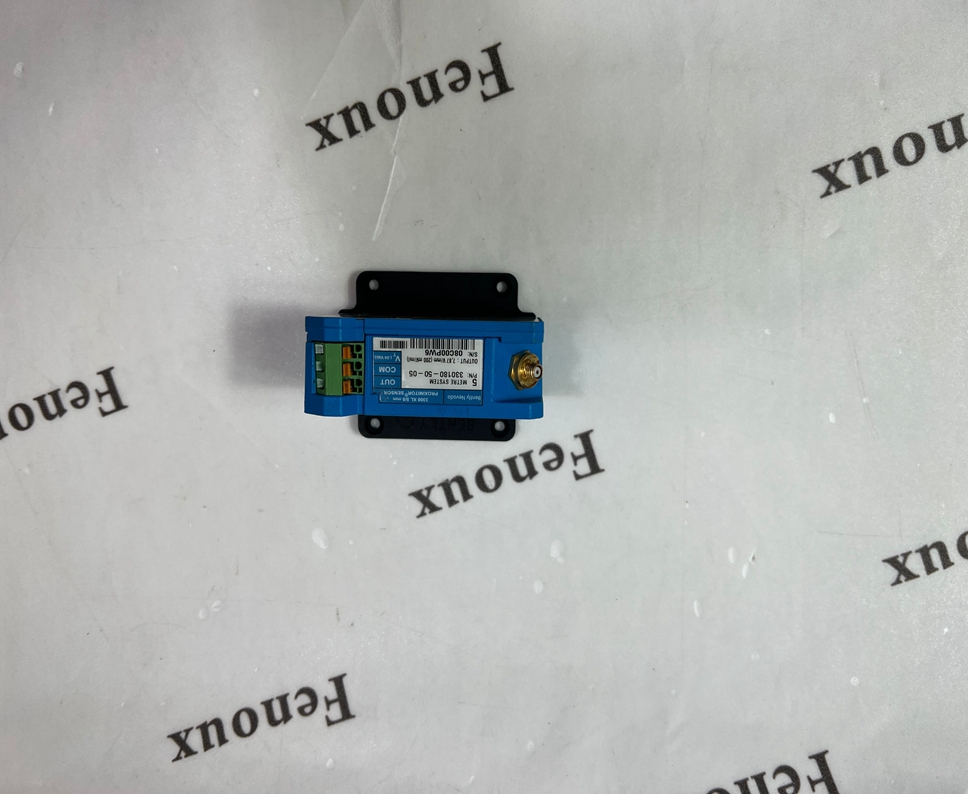

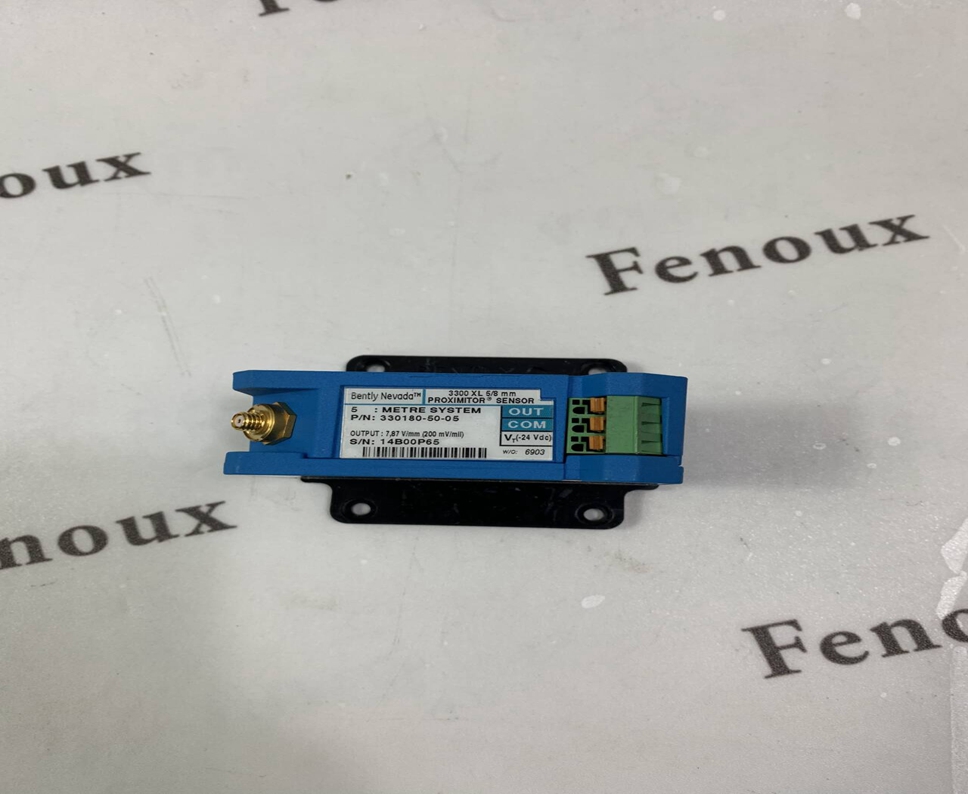

330180-50-05 Bently Nevada PROXIMITOR SENSOR

Brand: BENTLY

Model number:330180-50-05

Colour:new

Warranty: 12 months

Lead Time:3-day working day

Country of origin: USA Price: Please contact us

Product weight:0.40kg

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

330180-50-05 Bently Nevada PROXIMITOR SENSOR


INQUIRE NOW

Products Name: 330180-50-05 Bently Nevada

PRODUCT DESCRIPTION

The 3300 XL probe and extension cable also reflect

improvements over previous designs. A patented TipLoc™

molding method provides a more robust bond between the

probe tip and the probe body. The probe’s cable is more

securely attached as well, incorporating a patented

CableLoc™ design that provides 330 N (75 lbf) pull

strength where the probe cable attaches to the probe tip.

3300 XL 8 mm Probes and Extension Cables can also be

ordered with an optional FluidLoc® cable option. This

option prevents oil and other liquids from leaking out of the

machine through the cable’s interior.

330180-50-05 Bently Nevada

Description:

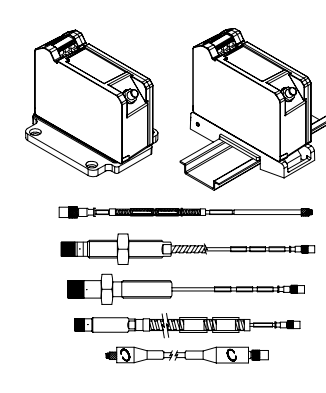

The 3300 XL 8 mm Proximity Transducer System consists of:

• a 3300 XL 8 mm probe

• a 3300 XL extension cable

• a 3300 XL Proximitor® Sensor1

The system provides an output voltage directly proportional to the distance between

the probe tip and the observed conductive surface. It is capable of both static

(position) and dynamic (vibration) measurements, and is primarily used for vibration

and position measurement applications on fluid-film bearing machines, as well as

Keyphasor® and speed measurement applications2.

The 3300 XL 8 mm system represents our most advanced performance in an eddy

current proximity transducer system. The standard 3300 XL 8 mm 5 metre system

is also 100% compliant with the American Petroleum Institute’s (API) 670 Standard

(4th Edition) for mechanical configuration, linear range, accuracy, and temperature

stability. All 3300 XL 8 mm Proximity Transducer Systems achieve this level of

performance while allowing complete interchangeability of probe, extension cable,

and Proximitor® Sensor without the need for individual component matching or

bench calibration.

Each component of the 3300 XL 8 mm Transducer System is backward compatible

and interchangeable3 with other non-XL 3300 series 5 and 8 mm transducer system

components4. This includes the 3300 5 mm probe, which is used when an 8 mm

probe is too large for the available mounting space5,6.


Shipping Port: China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service
