Bently 106765-07 Central control module

Product Description

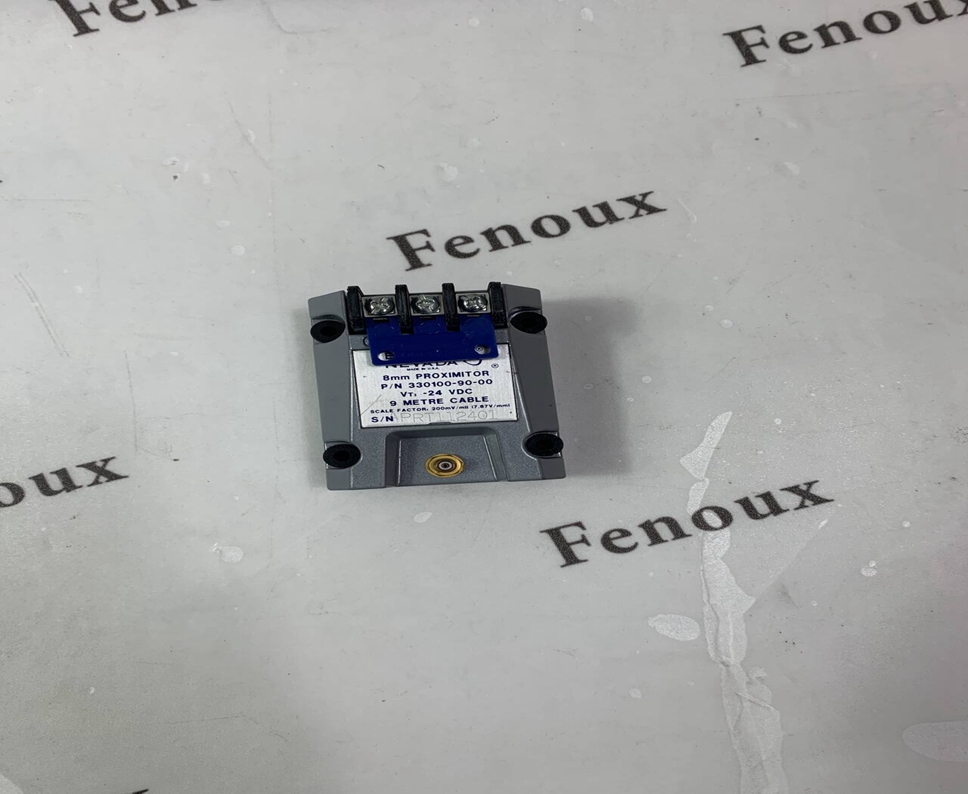

Bently Nevada Proximitor sensors are eddy current proximity transducers designed to measure the position and vibration of rotating shafts within the clearances of their fluid film bearings. They are widely used in industrial machinery, particularly in power generation, aerospace, and oil and gas applications, to monitor the health and performance of rotating equipment.

Key Features and Benefits

• High Accuracy: Proximitor sensors offer exceptional accuracy in measuring both static (position) and dynamic (vibration) values.



• Rugged Design: Built to withstand harsh industrial environments, these sensors are highly reliable and durable.



• Wide Measurement Range: Available in various measurement ranges, Proximitor sensors can accommodate a wide range of applications.



• Corrosion Resistance: The sensors are constructed with corrosion-resistant materials, ensuring long-term performance in challenging conditions.

• RFI/EMI Immunity: Proximitor sensors are designed to minimize the effects of radio frequency interference (RFI) and electromagnetic interference (EMI), ensuring accurate measurements.



• Non-contact Measurement: The non-contact nature of the sensor eliminates wear and tear on the shaft, extending the life of the equipment.

Technical Specifications

• Measurement Principle: Eddy current



• Output: Voltage proportional to distance



• Temperature Range: Varies depending on the model

• Frequency Response: Varies depending on the model

• Installation: Surface or flush mounting

• Materials: Stainless steel, ceramic, and other high-temperature materials

Applications

• Turbine Monitoring: Monitoring the vibration and position of turbine shafts



• Compressor Monitoring: Monitoring the vibration and position of compressor shafts

• Pump Monitoring: Monitoring the vibration and position of pump shafts

• Fan Monitoring: Monitoring the vibration and position of fan shafts

• Generator Monitoring: Monitoring the vibration and position of generator shafts

• Other Rotating Equipment: Monitoring the vibration and position of various other rotating machines

Precautions

• Proper Installation: Ensure correct installation to avoid damage to the sensor and inaccurate measurements.

• Calibration: Regular calibration is recommended to maintain accuracy.

• Environmental Factors: Consider environmental factors such as temperature, humidity, and vibration when selecting and installing the sensor.

• Electromagnetic Interference: Shield the sensor from electromagnetic interference to prevent inaccurate readings.



Additional Information

• Models: Bently Nevada offers a wide range of Proximitor sensor models, each with specific features and capabilities.



• Accessories: Various accessories are available, including extension cables, mounting brackets, and calibration tools.



• System Integration: Proximitor sensors can be integrated into larger condition monitoring systems for comprehensive data analysis.

For more detailed information on specific Proximitor sensor models and applications, please refer to the Bently Nevada product catalog or contact a Bently Nevada representative.
