Bently Nevada 3500/60 Overview

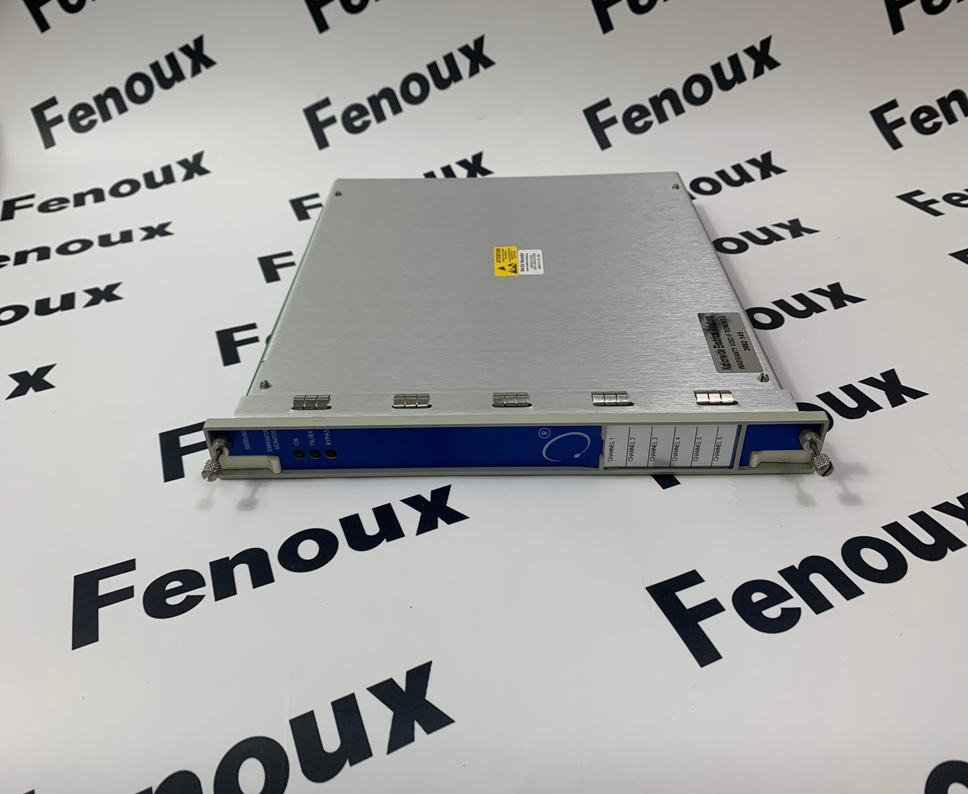

The Bently Nevada 3500/60 is a key module within the 3500 Series Machinery Condition Monitoring System. It serves as the primary communication interface between the 3500 rack and external systems. It provides both Ethernet and serial communication pathways for configuration, data collection, and integration into plant-wide control and information systems.

Product Detailed Description

• Function:

• Provides the communication interface between the 3500 monitoring system and external hosts, data acquisition systems, and plant networks.

• Supports data transmission via Ethernet (TCP/IP) and serial (RS-232/RS-485) protocols.

• Allows users to configure the 3500 monitoring system, access real-time data, historical data, and alarm information.

• Supports Modbus TCP/IP, Modbus RTU, and other industrial protocols.

• Provides time synchronization capabilities to ensure data time consistency.

• Some models may support network security features.

• Features:

• Dual Ethernet ports for redundant network connections.

• Multiple serial ports for connecting various external devices.

• High-performance processor for fast and reliable data transmission.

• Flexible communication protocol support for easy integration into various systems.

• Rugged industrial design suitable for harsh industrial environments.

• Configurable and accessible via System 1 software or third-party software.

Product Parameters

As there are different sub-models and configurations of the Bently Nevada 3500/60, the following are some general parameters. Always refer to the official datasheet for the specific model:

• Ethernet Interface:

• 2 x 10/100Base-T Ethernet ports (RJ45).

• Supports TCP/IP, Modbus TCP/IP, SNMP, and other protocols.

• Serial Interface:

• Multiple RS-232 and/or RS-485 ports (typically 2 or more).

• Supports Modbus RTU, ASCII, and other protocols.

• Power Supply:

• Powered by the 3500 rack backplane.

• Power Consumption:

• Varies depending on the specific model.

• Ambient Temperature:

• Operating temperature range typically -20 °C to +65 °C (-4 °F to +149 °F).

• Storage temperature range typically -40 °C to +85 °C (-40 °F to +185 °F).

• Humidity:

• 5% to 95% relative humidity, non-condensing.

• Dimensions:

• Standard 3500 Series module dimensions.

• Weight:

• Varies depending on the specific model.

• Certifications:

• CE, ATEX, CSA, etc. (refer to the specific product manual).

Product Advantages

• Powerful Communication Capabilities:

• Supports multiple Ethernet and serial protocols for easy integration into various plant systems.

• Redundant Network Support:

• Dual Ethernet ports enhance the reliability and availability of network connections.

• High Performance:

• Ensures fast and reliable data transmission to meet real-time monitoring needs.

• Flexibility:

• Configurable and accessible via various software platforms.

• Industrial-Grade Reliability:

• Rugged design suitable for harsh industrial environments.

• Time Synchronization:

• Ensures the accuracy and consistency of monitoring data.

• Security:

• Some models offer network security features to protect the monitoring system.

Precautions

• Correct Installation:

• Install the 3500/60 module correctly into the 3500 rack according to Bently Nevada's installation guidelines.

• Correct Wiring:

• Carefully connect Ethernet and serial cables, ensuring reliable connections.

• Network Configuration:

• Configure network parameters such as IP address, subnet mask, and gateway correctly according to the plant's network architecture.

• Protocol Configuration:

• Configure the corresponding communication protocol parameters (e.g., Modbus address, baud rate, etc.) according to the requirements of the external system.

• Software Compatibility:

• Ensure that the configuration and data access software used is compatible with the firmware version of the 3500/60 module.

• Security Settings:

• If the model supports network security features, configure appropriate security settings to protect the system.

• Regularly check the status indicators and connections of the module to ensure it is operating normally.

Product Applications

The Bently Nevada 3500/60 module is widely used in various rotating machinery that requires condition monitoring, such as:

• Steam Turbines and Gas Turbines:

• Power generation, oil and gas industries.

• Compressors:

• Oil and gas, chemical industries.

• Pumps:

• Various industrial sectors.

• Motors and Generators:

• All industrial sectors.

• Wind Turbines:

• Renewable energy industry.

• Other Critical Rotating Equipment:

• Equipment that requires continuous condition monitoring to ensure safe and reliable operation.
