FC-051P7K5T4E20H3BXCXXXSXXX Danfoss

The following tables provide the specifications for the F2-08DA-2 Analog Output

Module. Review these specifications to make sure the module meets your

application requirements.

The F2-08DA-2 Analog Output moduleprovides several hardware features:

Supports DL230,DL240,DL250-1and DL260 CPUs (see firmwarerequirements below).

Analog outputs are opticallyisolated from the PLC logic.The module has a removableterminal block, so the module canbe easily removed or changedwithout disconnecting the wiring

Can update all channels in onescan(DL240,DL250-1 and DL260only) .

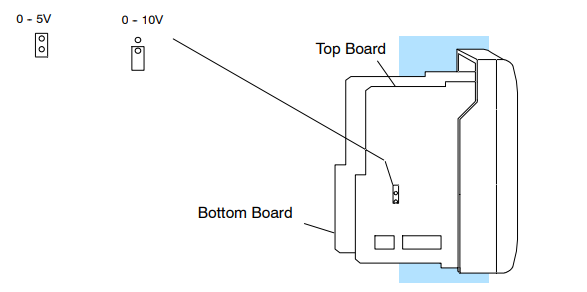

Outputs are voltage sourcing.Outputs can be configured foreither of these ranges:1) 0 to 5 VDC

2) 0 to 10 VDC

Firmware Requirements:

To use this module, DL230 CPUs musthave firmware version 2.7 orlater. To usethe pointer method of writing valuesDL240 CPUs require firmware version3.0 or later and DL250 CPUs requirefirmware version 1.33 or later.

The F2-08DA-2 analog output requires 16 discrete output points. The module can

be installed in any slot of a DL205 system, but the available power budget and

discrete I/O points can be limiting factors. Check the user manual for your particular

model of CPU and I/O base for more information regarding power budget and

number of local, local expanison or remote I/O points.
