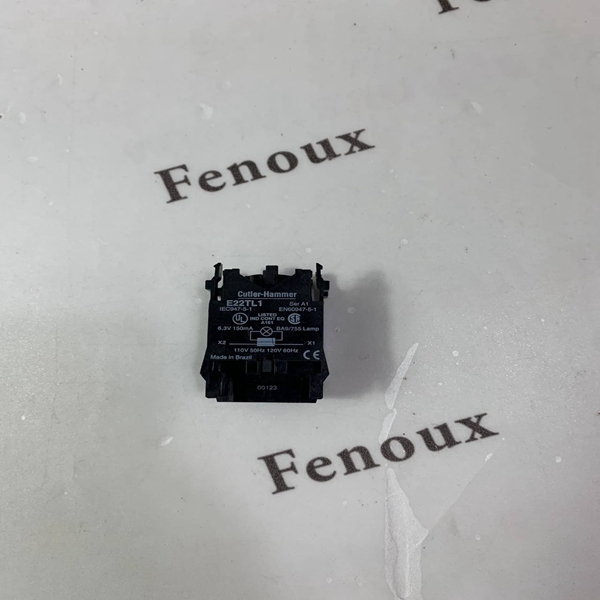

Eaton E22TL1

Add Suffix to operator Catalog Number to order as a complete device. Example E22PB1

B= Flush Black pushbutton with 1NC contact block.

E22B4 contact block not available for use with 5-way mounting adapter.

 For low voltage applications.

Marked with Direct Opening Action (DOA) Symbol per IEC 60947-5-1 (Annex K) and NEMA ICS 5 (Part 6).

For use with Trigger Action Emergency Stop (E22LTA2) Operators.

Description:

E22 light units consist of two versions

— standard size LED lamps and tall LED

lamps. Select the standard LED light

units for all indicating lights, illuminated

pushbuttons, push-push (alternate

action) or double-headed pushbutton

operators. Select the tall LED light units

for all illuminated selector switches and

push-pull operators.

E22 light units consist of two versions

— with standard bulb or with tall bulbs.

Select the standard bulb light units for

all indicating lights, illuminated pushbuttons,

 push-push (alternate action) or

double-headed pushbutton operators.

Select the tall bulb light units for all illuminated

 selector switches and pushpull

 operators.

Caution: Please note that 120V full voltage

light units (E22D120) are only suitable for

indicating light operators and will overheat in

other operators.

Contact Blocks or Light Units Master Packed in Quantities of 100 Only —

Contact Block 1NC (Available singly in Catalog as E22B1)

Contact Block 1NO (Available singly in Catalog as E22B2)

Light Unit without Lamp Full Voltage (Available singly in Catalog as E22D)

Light Unit Resistor Type 120V 60 Hz (Available singly in Catalog as E22R2)

Light Unit Transformer Type 120V 60 Hz (Available singly in Catalog as E22TL1)
