G478-0001 EUROTHERM central processing unit

INQUIRE NOW

Products Name: G478-0001 EUROTHERM central processing unit

PRODUCT DESCRIPTION

Brand:   EUROTHERM

Model number:G478-0001

Colour:new

Warranty: 12 months

Lead Time:3-day working day

Country of origin: USA Price: Please contact us

Product weight:0.5kg

Shipping Port: Xiamen, China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Description:

Description

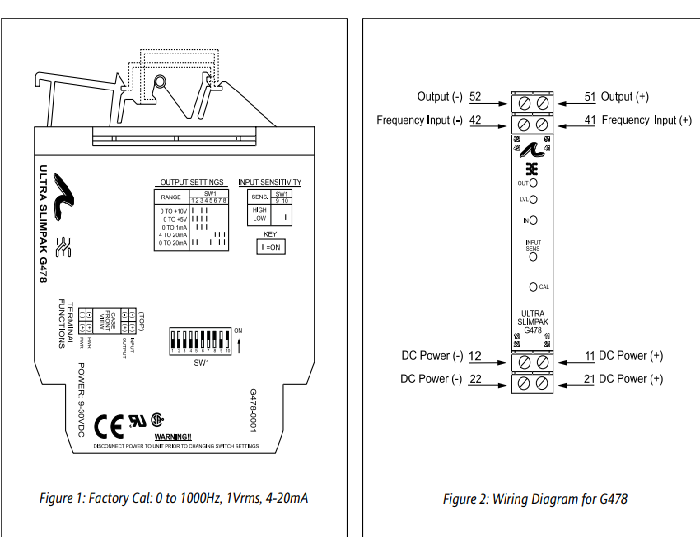

The G478 is a DIN rail mount, frequency input signal conditioner with 1800VDC isolation between input, output and power. The field configurable input and output offer flexible, wide ranging capability for variable frequency drives, magnetic pick-ups, turbine flow meters, and other pulse or frequency output transducers. The input of the G478 can be configured for any frequency span from 2Hz to 10,000Hz. The input amplitude threshold sensitivity can be adjusted from 150mVp to 10Vp to ensure accurate frequency measurement and minimize transient noise related errors. The maximum input amplitude is 150 Vrms. The output can be set for 0-5V, 0-10V, 0-1mA, 0-20mA or 4-20mA. The G478 to be field configured for virtually any frequency input to DC signal output within the ranges specified. Calibration utilizes ‘Touch-Cal’ technology in which the user simply applies the minimum and maximum input frequencies, and touches a recessed button to configure the corresponding minimum and maximum output range. The Ultra SlimPak housing allows installation of up to 24 units per linear foot. The wide ranging power supply is inverter isolated and accepts any voltage between 9 and 30VDC.

Application

The G478 is useful in eliminating ground loops and interfacing pulse output transducers, such as turbine flow meters and magnetic pick-ups, to data acquisition and control systems. Advanced digital technology, combined with Action’s ASIC technology, provide a stable output at low frequencies for higher accuracy. ‘Touch-CALTM Technology

The G478 utilizes ‘Touch-Cal’ technology to greatly simplify configuration. To set the input frequency range, simply apply the high input frequency and push the CAL button while the INPUT LED is lit. The low input frequency is then applied and pushing the CAL button once again stores the low frequency input. The high and low ranges are stored in non-volatile memory and correspond to the high and low output range which is selected via DIP switches.
