OXBORO ControlNet Overview
ControlNet is a high-speed, deterministic, and highly reliable industrial network protocol commonly used in process control and automation systems. While ControlNet itself is a standard, FOXBORO, as a major provider of Distributed Control Systems (DCS) like the I/A Series and EcoStruxure Foxboro DCS, integrates ControlNet into its architecture to provide robust and deterministic communication for its field devices, controllers, and supervisory systems. When referring to "FOXBORO ControlNet," it generally implies the use of ControlNet technology within a FOXBORO DCS or automation solution.
Product Detailed Description (Focusing on ControlNet within FOXBORO DCS context)

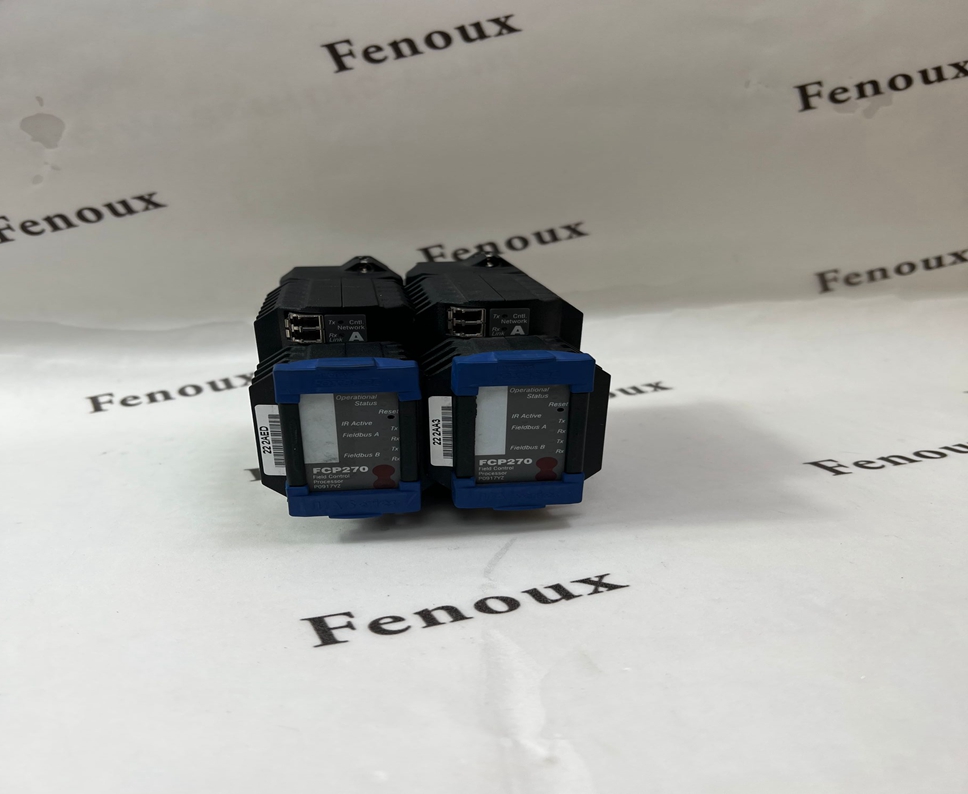

Function: ControlNet in a FOXBORO DCS serves as a high-performance communication backbone for critical control applications. It facilitates real-time, deterministic exchange of I/O data between field devices (connected via various fieldbuses or direct I/O modules), process controllers (e.g., FOXBORO FCP270, FCP280), and operator workstations. Its primary role is to ensure synchronized and reliable data delivery for closed-loop control, alarms, and sequence-of-events reporting.
Key Characteristics of ControlNet (as integrated by FOXBORO):
Implicit Messaging (I/O Data): Delivers time-critical control data with high determinism.
Explicit Messaging (Configuration/Diagnostics): Used for non-time-critical data like configuration uploads/downloads, diagnostics, and parameter changes.
Deterministic Communication: Guarantees that data will be delivered within a specified and predictable time frame, which is crucial for real-time control loops. This is achieved through a scheduled and unscheduled access mechanism.
High Speed: Operates at 5 Mbps, providing sufficient bandwidth for large amounts of I/O and peer-to-peer data.
High Reliability: Employs features like physical layer redundancy (coaxial cable), robust error detection, and an implicit messaging model for data integrity.
Implicit and Explicit Messaging:
Media: Typically uses RG-6 coaxial cable. Fiber optic options are also available for longer distances or harsh electromagnetic environments.
Nodes: Supports a significant number of nodes (devices) on a single segment.
Common Industrial Protocol (CIP): ControlNet uses CIP, which also underpins other industrial networks like EtherNet/IP and DeviceNet, providing a common application layer and ease of integration within the Rockwell Automation (and increasingly, other vendor) ecosystem. While Foxboro has its own unique DCS architecture, its adoption of ControlNet leverages this robust protocol.
Physical Layer: Features a "repeater per tap" architecture, allowing devices to be added or removed without disrupting network communication for other devices.
Product Parameters (Typical for ControlNet as implemented in a FOXBORO System)
Network Speed: 5 Mbps
Media Options:
Topology: Bus (linear bus with taps, requiring terminators at each end of the segment)
Max Number of Nodes per Segment: Up to 99 nodes (depends on cable length and repeaters)
Max Cable Length:
Coaxial: Varies based on number of nodes and repeaters (e.g., 250m for 2 nodes, 100m for 48 nodes without repeaters; significantly longer with repeaters)
Fiber Optic: Kilometers, depending on fiber type and transceivers
Network Access Method: Concurrent Time Domain Multiple Access (CTDMA) combining scheduled and unscheduled access.
Protocol: Common Industrial Protocol (CIP)
Connectors: BNC connectors for coaxial cable, specific fiber optic connectors for fiber.
Power: Typically supplied by the connected device, or external power for repeaters.
Supported FOXBORO Modules/Devices: ControlNet interfaces (e.g., FBM230, FBM231 ControlNet interface modules) for connecting I/O, and integrated ports on specific FOXBORO controllers.
Product Advantages (of ControlNet in FOXBORO Systems)
High Performance for Critical Control: Its deterministic nature and high speed make it ideal for time-critical control loops, ensuring precise and reliable operation of process equipment.
Robustness and Reliability: The physical layer redundancy (when implemented), error detection, and inherent design make it highly resistant to noise and communication failures.
Real-time Capabilities: Guarantees data delivery within predictable timeframes, essential for synchronized control actions and sequence-of-events.
Flexible Architecture: Supports star and linear topologies using repeaters, allowing for scalable and adaptable network designs.
Live Connect/Disconnect: Devices can be added or removed from the network without bringing down the entire segment, enabling online maintenance and expansion.
Interoperability: While Foxboro's DCS is proprietary, ControlNet as a standard provides a level of interoperability with other ControlNet compliant devices, particularly beneficial in hybrid systems or when integrating specific third-party equipment.
Proven Technology: ControlNet is a mature and widely adopted industrial network, offering a well-established ecosystem of devices and support.
Precautions
Strict Cabling Requirements: ControlNet coaxial cable (RG-6) requires precise termination, proper grounding, and adherence to specific segment lengths based on the number of nodes. Incorrect cabling is a common cause of network issues.
Impedance Matching: Proper termination resistors (75 Ohm) are critical at both ends of each coaxial segment.
Network Configuration: Proper configuration using network configuration tools (e.g., Rockwell's RSNetWorx for ControlNet or similar tools provided by Foxboro for their integrated system) is essential for determinism and performance. This includes scheduling the network.
Power Supply: Ensure stable and clean power supply for all ControlNet modules and devices.
Node Addressing: Each ControlNet device must have a unique node address within the network.
Environmental Factors: While robust, avoid excessive electromagnetic interference (EMI/RFI) if possible. For extreme environments, fiber optic media should be considered.
Grounding: Proper grounding practices are paramount for network stability and signal integrity.
Maintenance: Regular inspection of cables, connectors, and terminators is recommended.
Version Compatibility: Ensure compatibility between ControlNet modules, firmware versions, and the FOXBORO DCS version being used.
Product Applications (ControlNet within FOXBORO DCS)
ControlNet, when integrated into FOXBORO DCS solutions, finds extensive application in industries requiring high-speed, deterministic control and reliable data exchange for critical processes.
Oil & Gas (Upstream, Midstream, Downstream):
Refineries, petrochemical plants, offshore platforms for controlling complex processes like distillation, cracking, and blending.
Pipeline control and monitoring.
Chemical Industry:
Power Generation:
Pulp & Paper:
Mining & Metals:
Water & Wastewater Treatment:
Pharmaceuticals:
Manufacturing:
