Home / Products / GE FANUC / A06B-6110-H030 GE

A06B-6110-H030 GE

Brand: GE

Model number:A06B-6110-H030

Colour:new

Warranty: 12 months

Lead Time:3-day working day

Country of origin: USA Price: Please contact us

Product weight:0.2kg

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

A06B-6110-H030 GE Output Point I/O Module


INQUIRE NOW

Products Name: A06B-6110-H030 GE

PRODUCT DESCRIPTION

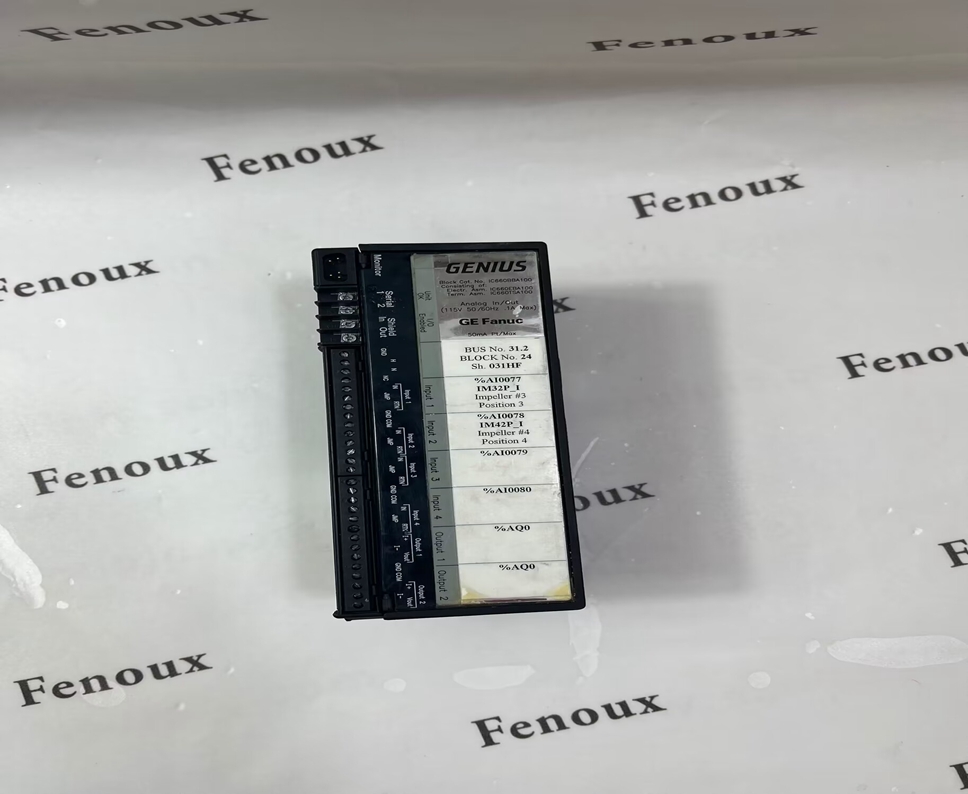

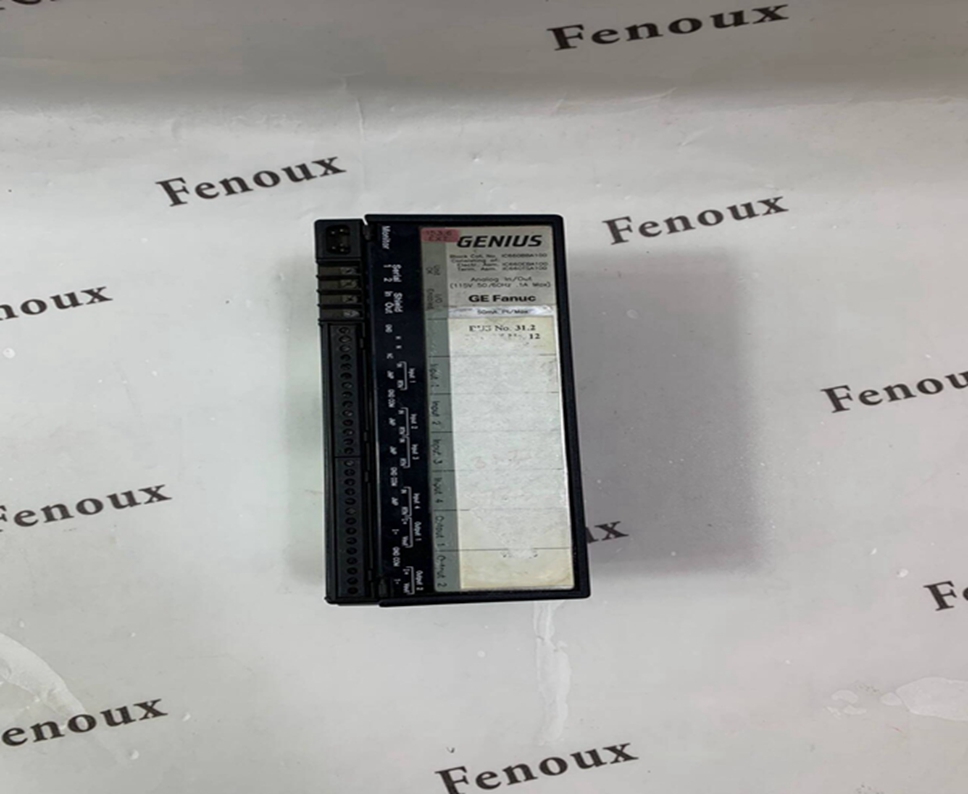

Genius Analog Mixed blocks provide 4 channels of inputs and 2 channels of outputs.

The channels can be configured for current or voltage with powerful diagnostics.

Description:

IC660BBA020 IC660BBA100 IC660BBA024 IC660BBA104

Product Name

Genius Analog I/O Block,

Voltage/Current,

4 Inputs/ 2 Outputs,

24/48 VDC Powered

Genius Analog I/O Block,

Voltage/Current,

4 Inputs/ 2 Outputs,

115 VAC Powered

Genius Analog I/O Block,

Current-source,

4 Inputs/ 2 Outputs,

24/48 VDC Powered

Genius Analog I/O Block,

Current-source,

4 Inputs/ 2 Outputs,

115 VAC/ 125 VDC Powered

Lifecycle Status Mature Mature Mature Mature

Network Support Genius Bus Genius Bus Genius Bus Genius Bus

Number of Points 4 In / 2 Out 4 In / 2 Out 4 In / 2 Out 4 In / 2 Out

Points Per Common One group of 4 Inputs and

one group of 2 Outputs

One group of 4 Inputs and

one group of 2 Outputs

One group of 4 Inputs and

one group of 2 Outputs

One group of 4 Inputs and

one group of 2 Outputs

Input Range 0–10 VDC, 10 VDC, 5 VDC,

0–5 VDC, 4–20 mA (or 1–5 VDC)

0–10 VDC, 10 VDC, 5 VDC,

0–5 VDC, 4–20 mA (or 1–5 VDC)

4 mA to 20 mA 4 mA to 20 mA

Output Range 0–10 VDC, 10 VDC, 5 VDC,

0–5 VDC, 4–20 mA (or 1–5 VDC)

0–10 VDC, 10 VDC, 5 VDC,

0–5 VDC, 4–20 mA (or 1–5 VDC)

4 mA to 20 mA 4 mA to 20 mA

Operating Voltage 18-56 VDC 98-132 VAC 18-56 VDC 93-132 VAC / 105-145 VDC

Resolution 12 bit + sign 12 bit + sign Input: 1 micro Amp

Output: 6 micro Amp

Output: 6 mA

Update Rate

Once every 4mS Once every 4mS Input: 16.6mS to 400mS

(user selectable)

Output: 6mS to 8mS typical

Input: 16.6mS to 400mS

(user selectable)

Output: 6mS to 8mS typical

Accuracy

Typical: 0.2% of full scale;

Maximum: 0.5% of full scale:

within 50mV on the 10 volt

range, 25mV on the 5 volt

range, and 100mA on the 4

to 20 mA range.

Typical: 0.2% of full scale;

Maximum: 0.5% of full scale:

within 50mV on the 10 volt

range, 25mV on the 5 volt

range, and 100mA on the 4

to 20 mA range.

Input: 0.1% of full scale

reading

Output: 0.15% of full

scale reading

Input: 0.1% of full scale

reading

Output: 0.15% of full

scale reading

Input Filter Response none, 8, 16, 32, 64, 128, 256,

512, 1024mS

none, 8, 16, 32, 64, 128, 256,

512, 1024mS

16.6mS to 400mS

(user selectable)

16.6mS to 400mS

(user selectable)

Diagnostics

Input: Underrange, Overrange,

High Alarm, Low Alarm,

Open Wire Output:

Underrange, Overrange

Input: Underrange, Overrange,

High Alarm, Low Alarm,

Open Wire Output:

Underrange, Overrange

Input: Underrange, Overrange,

High Alarm, Low Alarm,

Open Wire Output:

Underrange, Overrange,

Feedback error

Input: Underrange, Overrange,

High Alarm, Low Alarm,

Open Wire, Output:

Underrange, Overrange,

Feedback error

Dimensions (W x H x D)

8.83” (22.44cm) x

3.50” (8.89cm) x

3.94” (10.00cm)

8.83” (22.44cm) x

3.50” (8.89cm) x

3.94” (10.00cm)

8.83” (22.44cm) x

3.50” (8.89cm) x

3.94” (10.00cm)

8.83” (22.44cm) x

3.50” (8.89cm) x

3.94” (10.00cm)

Shipping Port: Xiamen, China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account
